AFAM chain kit for Derbi Senda 50 SM Limited 18-20 420 R1G chain kit

AFAM chain kit for Derbi Senda 50 SM Limited 18-20 420 R1G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching master link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Derbi Senda 50 SM Limited 2018-2020

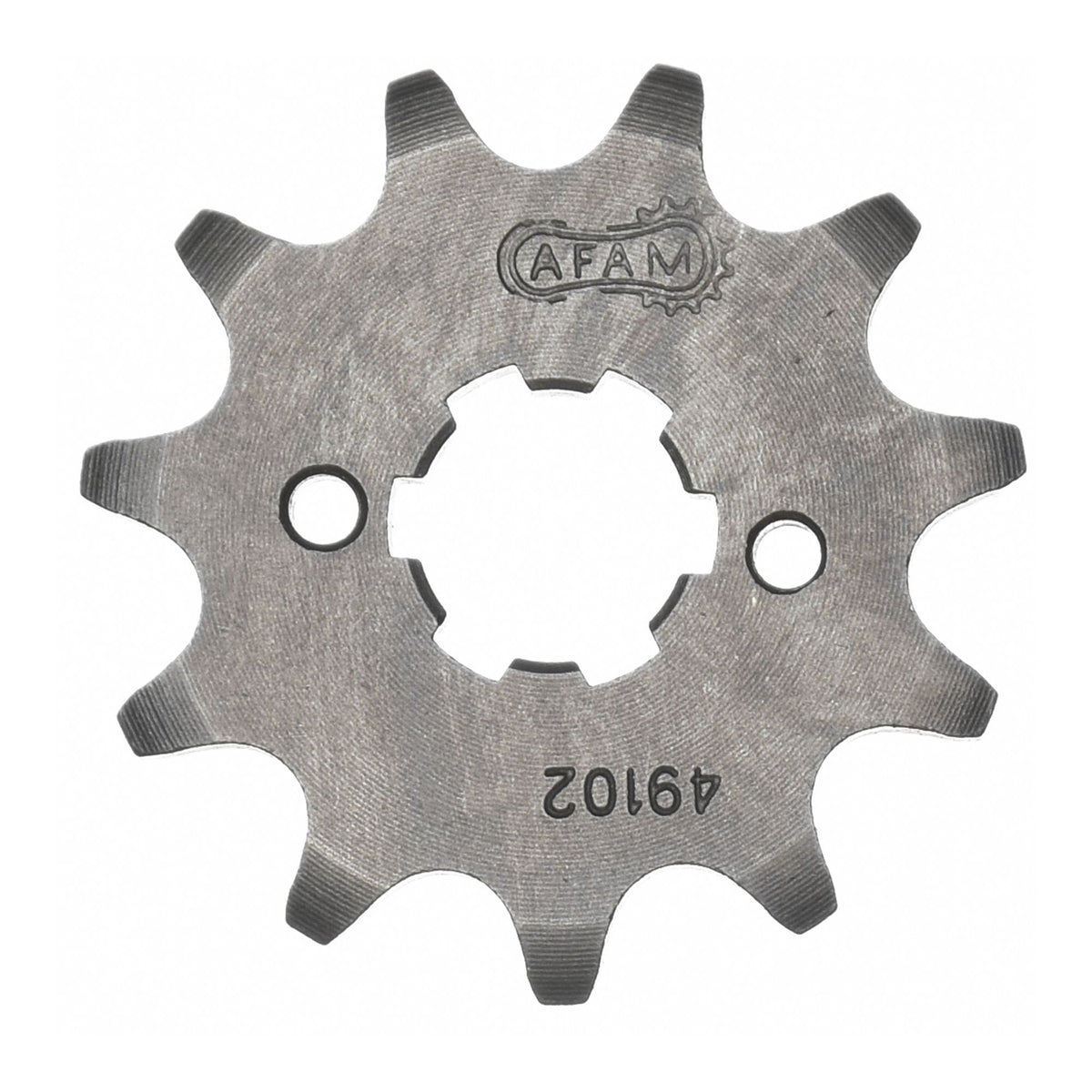

• Front sprocket: AFAM front sprocket #420 11 teeth - a49102.11
• Chain: AFAM chain 420 R1-G reinforced 134 links with clip master link - a420r1.g.134

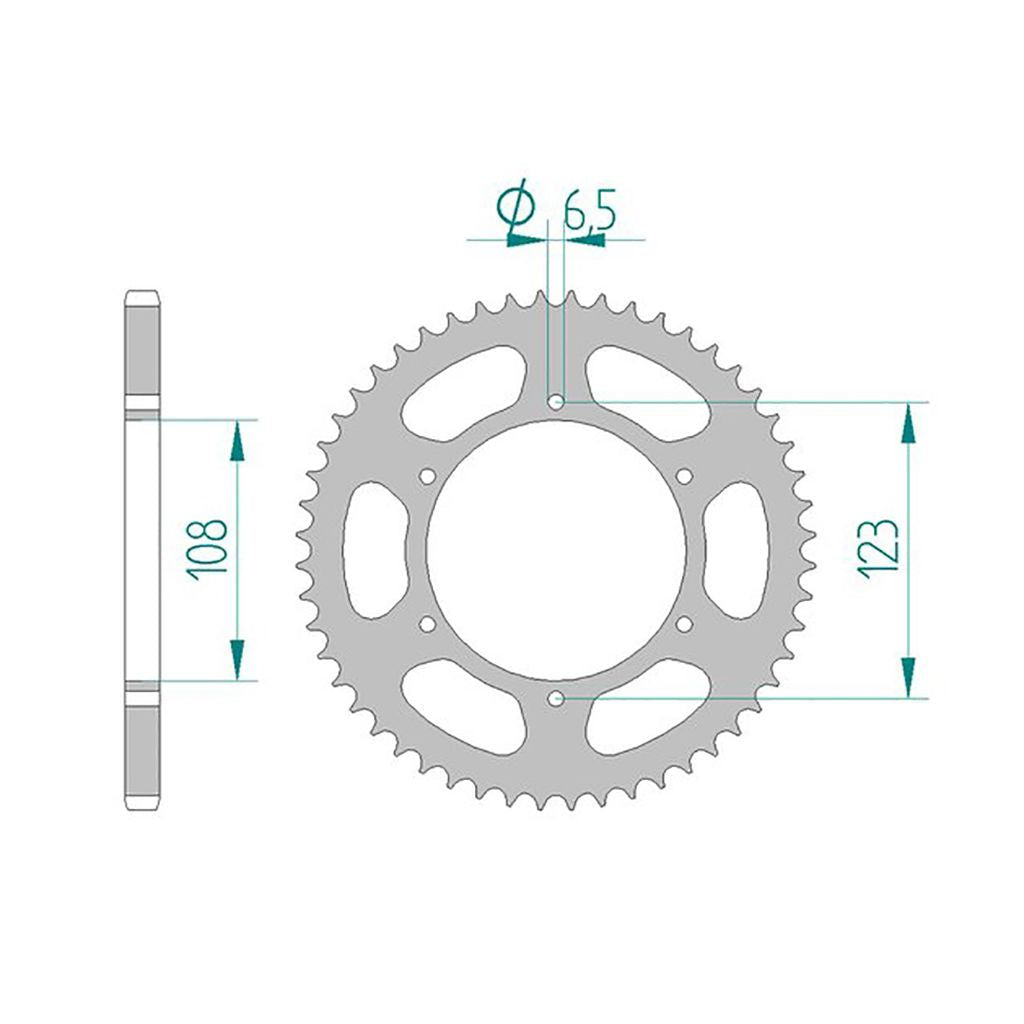

• Rear sprocket: AFAM rear sprocket STEEL #420 59 teeth - a92114.59
• Transmission ratio front sprocket-chain-rear sprocket: 11-134-59

AFAM 420 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold

Technical data:
Pitch: 420
Pin length: 16.2 mm
Roller Ø: 7.75 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 21.00 kN
Weight per 100 links: 0.88 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-15552

Suitable for

Derbi 0 - 100 cc Senda 50 SM Limited 2018
Derbi 0 - 100 cc Senda 50 SM Limited 2019
Derbi 0 - 100 cc Senda 50 SM Limited 2020
