AFAM chain kit for Ducati 999 S Biposto / Monoposto 03-06 525 XSR2G chain kit

AFAM chain kit for Ducati 999 S Biposto / Monoposto 03-06 525 XSR2G chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Ducati 999 S Biposto / Monoposto H4 2003-2006

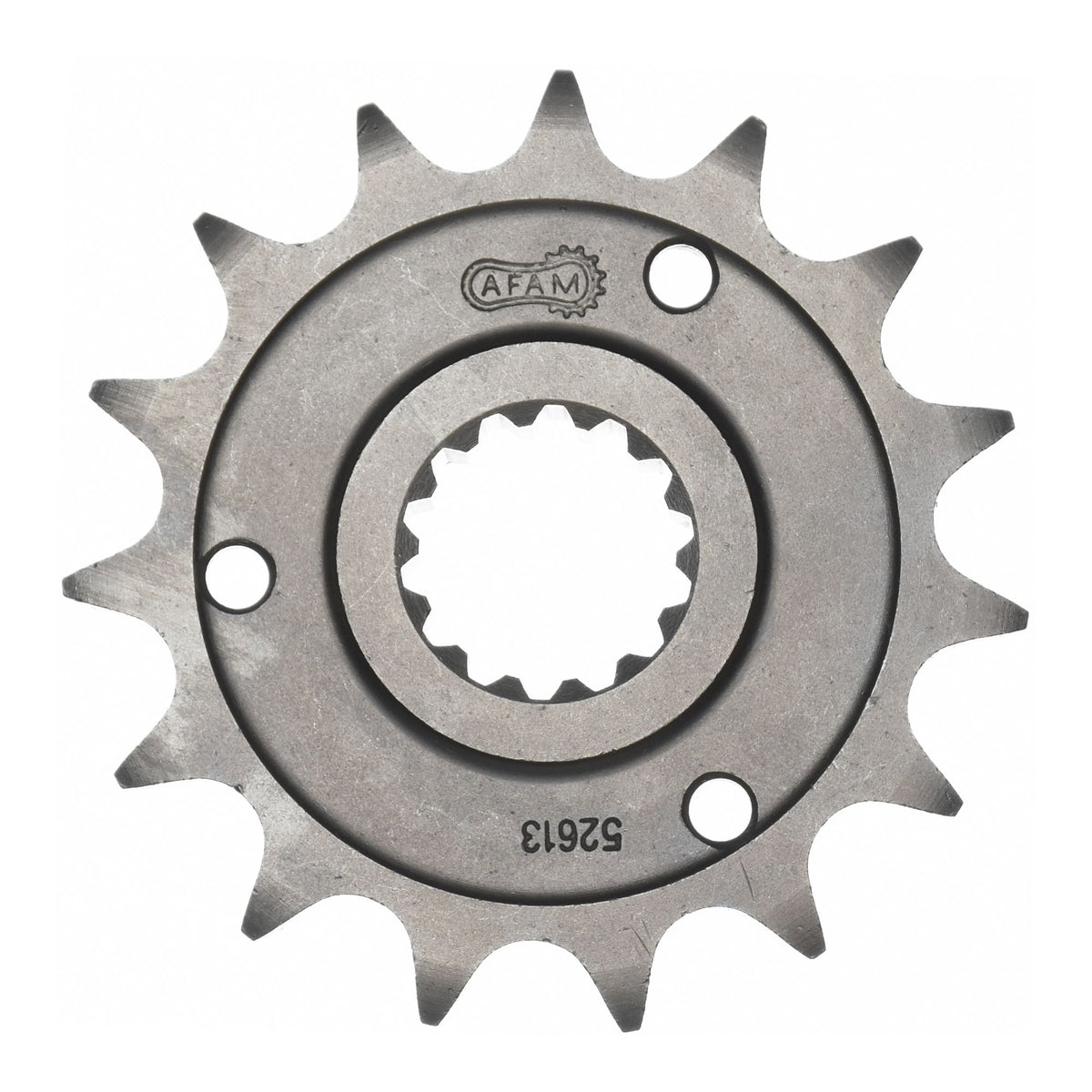

• Sprocket: AFAM sprocket #525 Sport 15 teeth - a52613.15
• Chain: AFAM chain 525 XSR2-G Xs-ring 96 with rivet link - a525xsr2.g.96

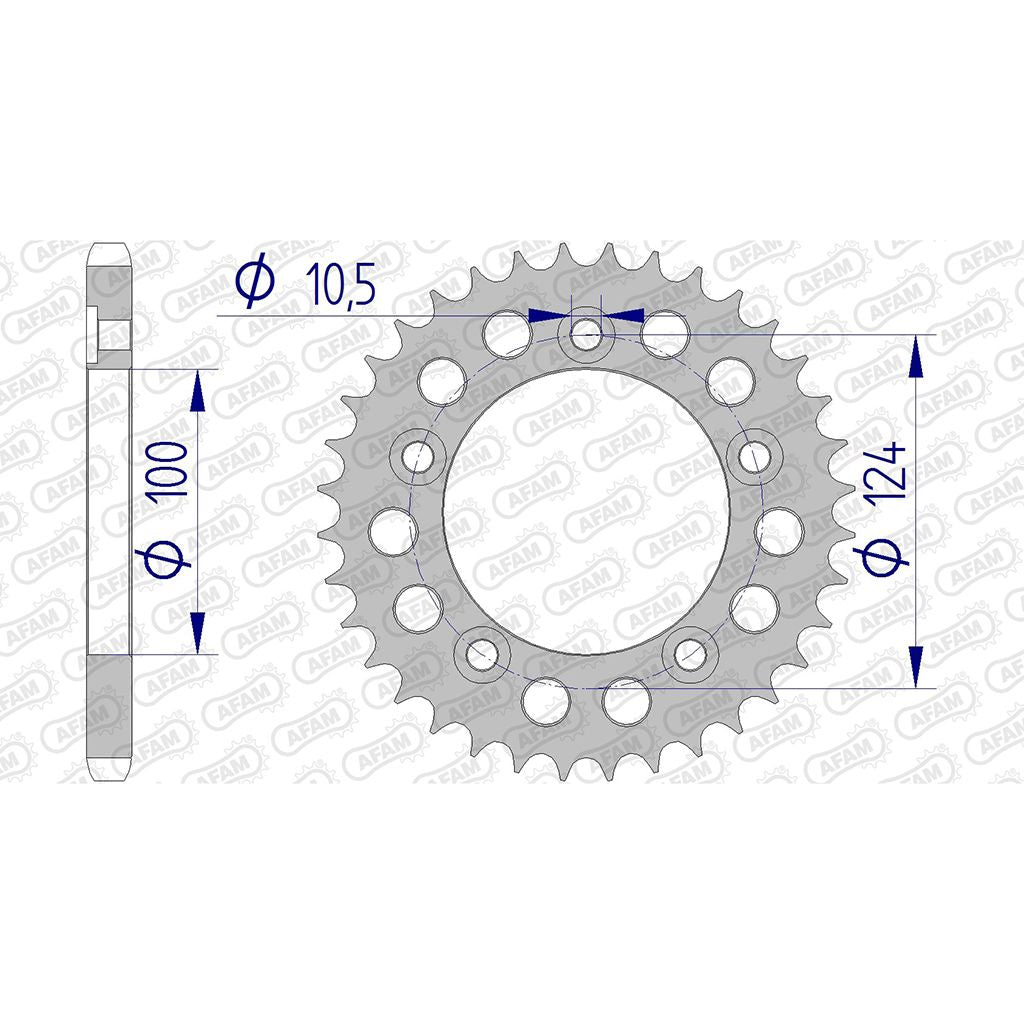

• Rear sprocket: Esjot rear sprocket 51612-36 ALU #525 36 teeth - a51612.36
• Gear ratio sprocket-chain-rear sprocket: 15-96-36

AFAM 525 XSR2-G

Super reinforced chain with smooth-running properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical specifications:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered goods are accessory/spare parts from a third-party manufacturer, which were not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-57056

Suitable for

Ducati 751 - 1000 cc Biposto / Monoposto 999 S H4 2003
Ducati 751 - 1000 cc Biposto / Monoposto 999 S H4 2004
Ducati 751 - 1000 cc Biposto / Monoposto 999 S H4 2005
Ducati 751 - 1000 cc Biposto / Monoposto 999 S H4 2006
