AFAM chain kit for Kawasaki ZX-6R Ninja 09-16 520 XHR2G chain kit

AFAM chain kit for Kawasaki ZX-6R Ninja 09-16 520 XHR2G chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Kawasaki ZX-6R Ninja ZX600R 2009-2016

• Front sprocket: AFAM front sprocket #520 16 teeth - a24511.16
• Chain: AFAM chain 520 XHR2-G Xs-ring 112 with rivet link - a520xhr2.g.112

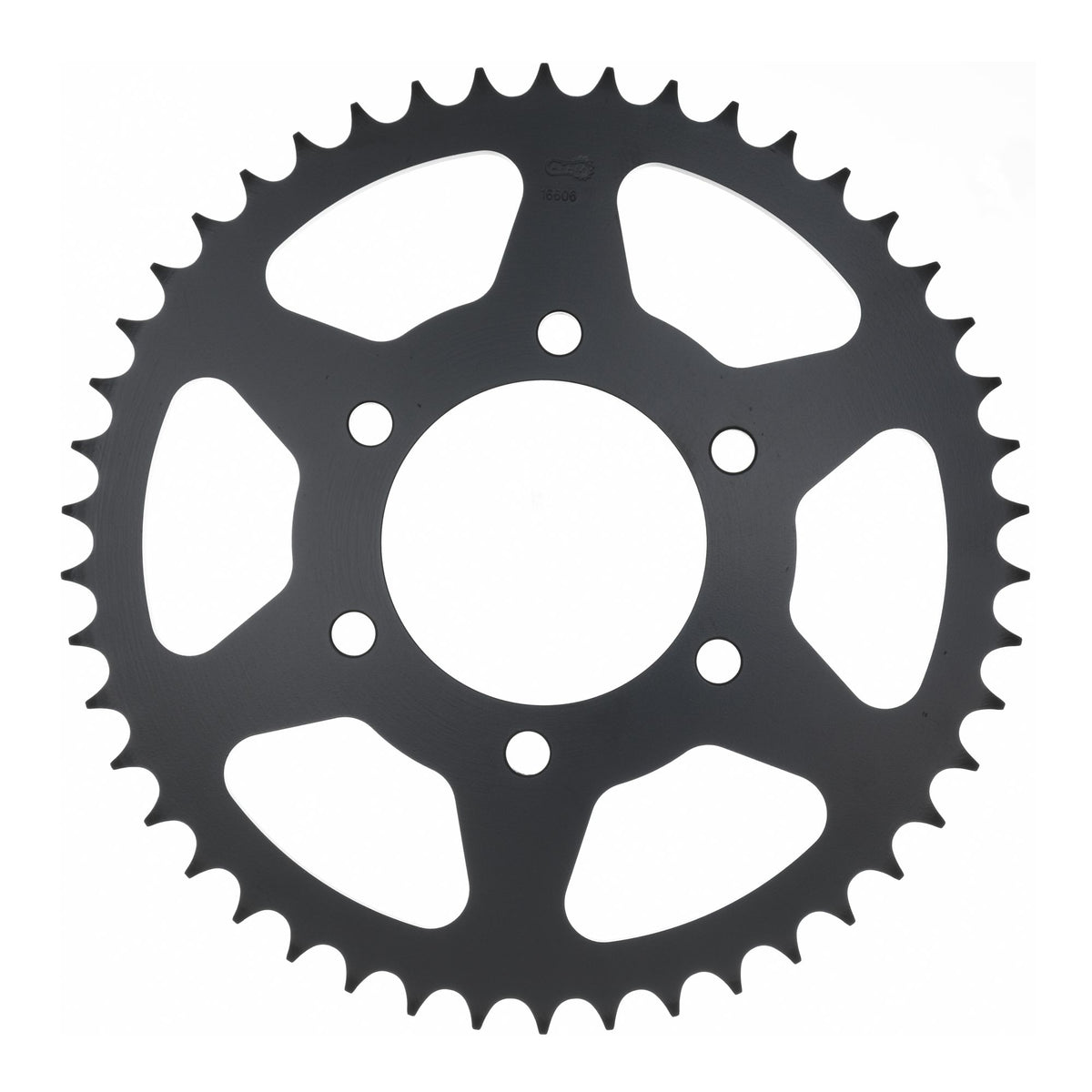

• Rear sprocket: AFAM rear sprocket STEEL #520 43 teeth - a16606.43
• Gear ratio front sprocket-chain-rear sprocket: 16-112-43

AFAM 520 XHR2-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-36156

Suitable for

Kawasaki 501 - 750 cc ZX-6R Ninja ZX600R 2009
Kawasaki 501 - 750 cc ZX-6R Ninja ZX600R 2010
Kawasaki 501 - 750 cc ZX-6R Ninja ZX600R 2011
Kawasaki 501 - 750 cc ZX-6R Ninja ZX600R 2012
Kawasaki 501 - 750 cc ZX-6R Ninja ZX600R 2013
Kawasaki 501 - 750 cc ZX-6R Ninja ZX600R 2014
Kawasaki 501 - 750 cc ZX-6R Ninja ZX600R 2015
Kawasaki 501 - 750 cc ZX-6R Ninja ZX600R 2016
