AFAM chain kit for Kawasaki ZX-6R Ninja 2001 525 XHR3G chain kit

AFAM chain kit for Kawasaki ZX-6R Ninja 2001 525 XHR3G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Kawasaki ZX-6R Ninja ZX600JJ 2001-2001

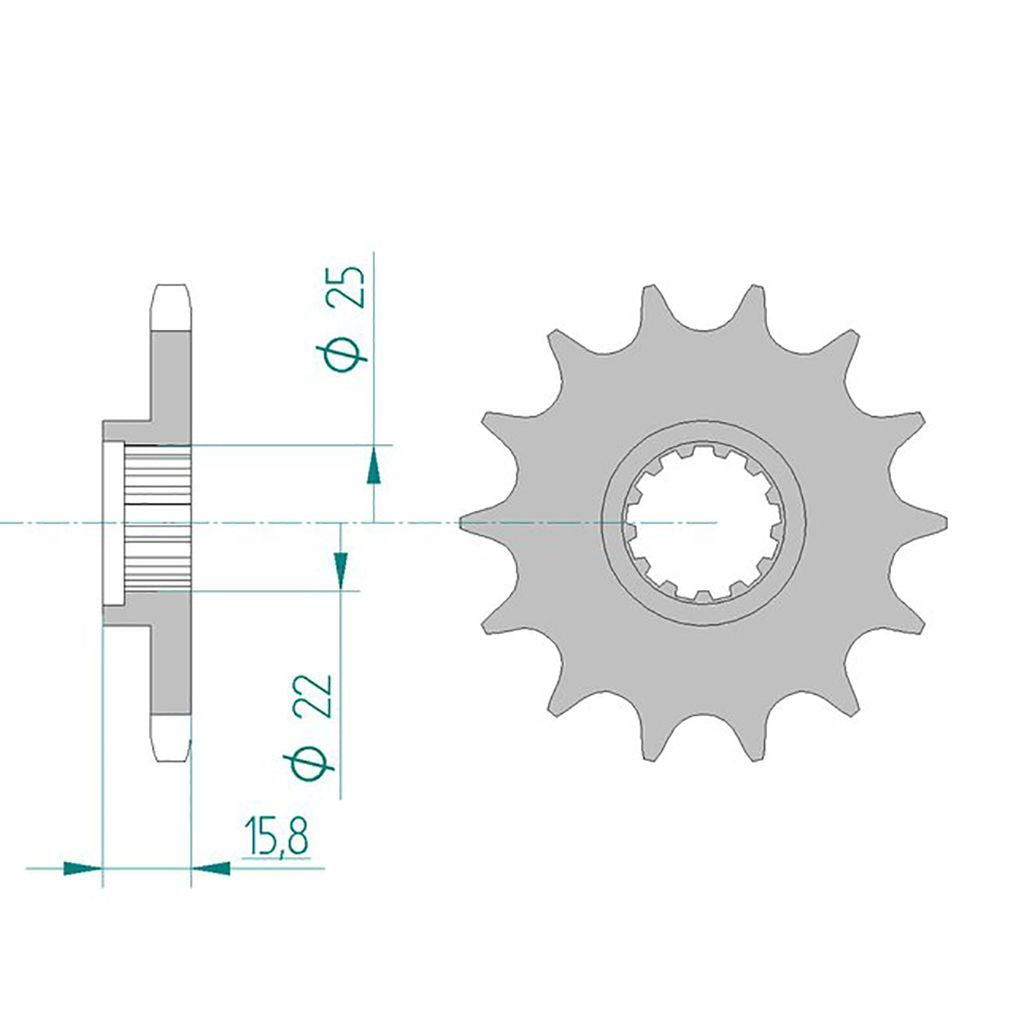

• Front sprocket: AFAM front sprocket #525 15 teeth - a24508.15
• Chain: AFAM chain 525 XHR3-G Xs-ring 108 w. rivet link - a525xhr3.g.108

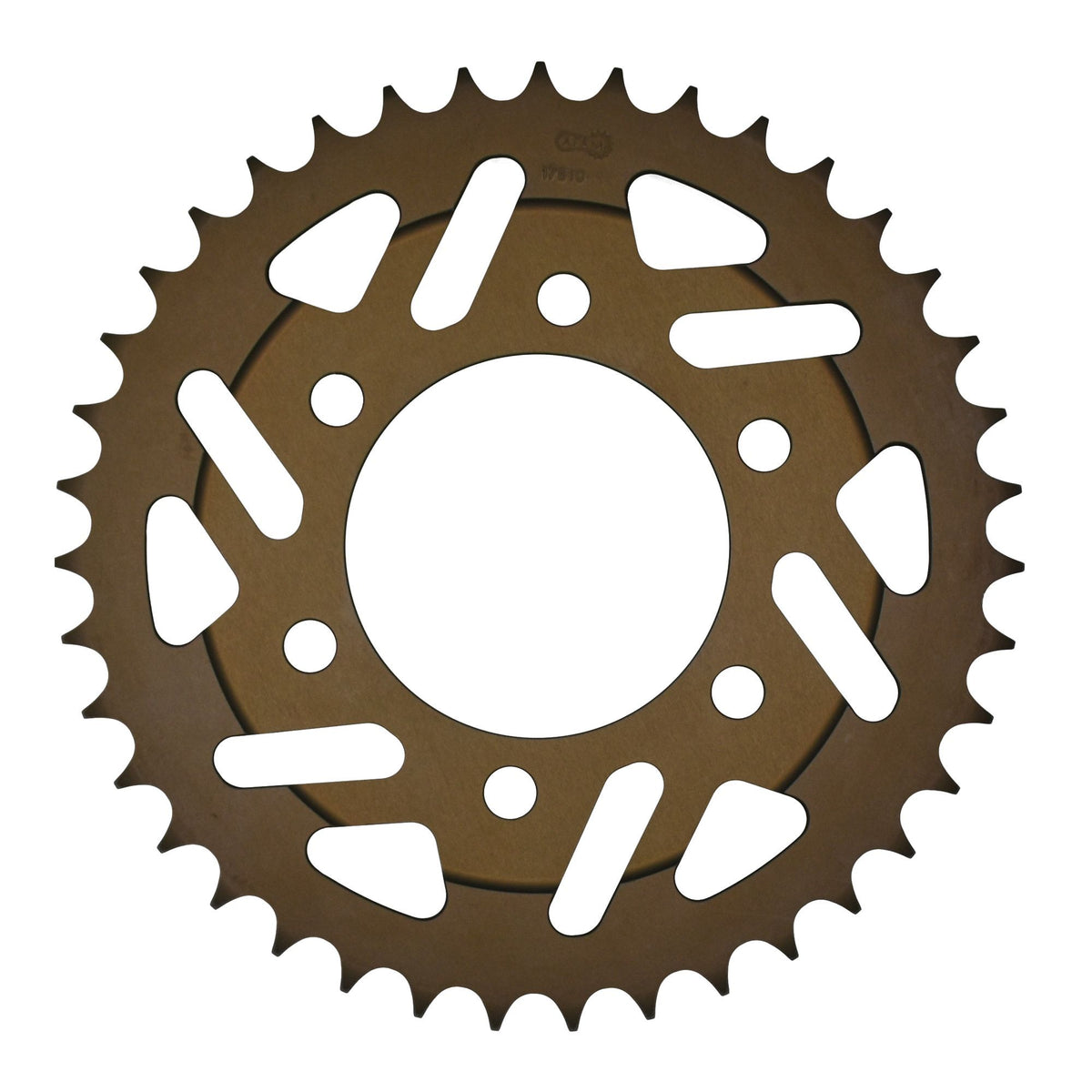

• Rear sprocket: AFAM rear sprocket ALU #525 ZX-10R 40 teeth - a17610.40
• Transmission ratio front sprocket-chain-rear sprocket: 15-108-40

AFAM 525 XHR3-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical specifications:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand serves solely to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Article number	KKF-55026

Fits

Kawasaki 501 - 750 cc ZX-6R Ninja ZX600JJ 2001
