AFAM chain kit for Kawasaki ZX-6R Ninja 98-99 520 XSRG chain kit

AFAM chain kit for Kawasaki ZX-6R Ninja 98-99 520 XSRG chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless stated otherwise: Not an original part - manufacturer names are for compatibility purposes only!

Components of the Kawasaki ZX-6R Ninja ZX600GG 1998-1999 conversion chain kit #520

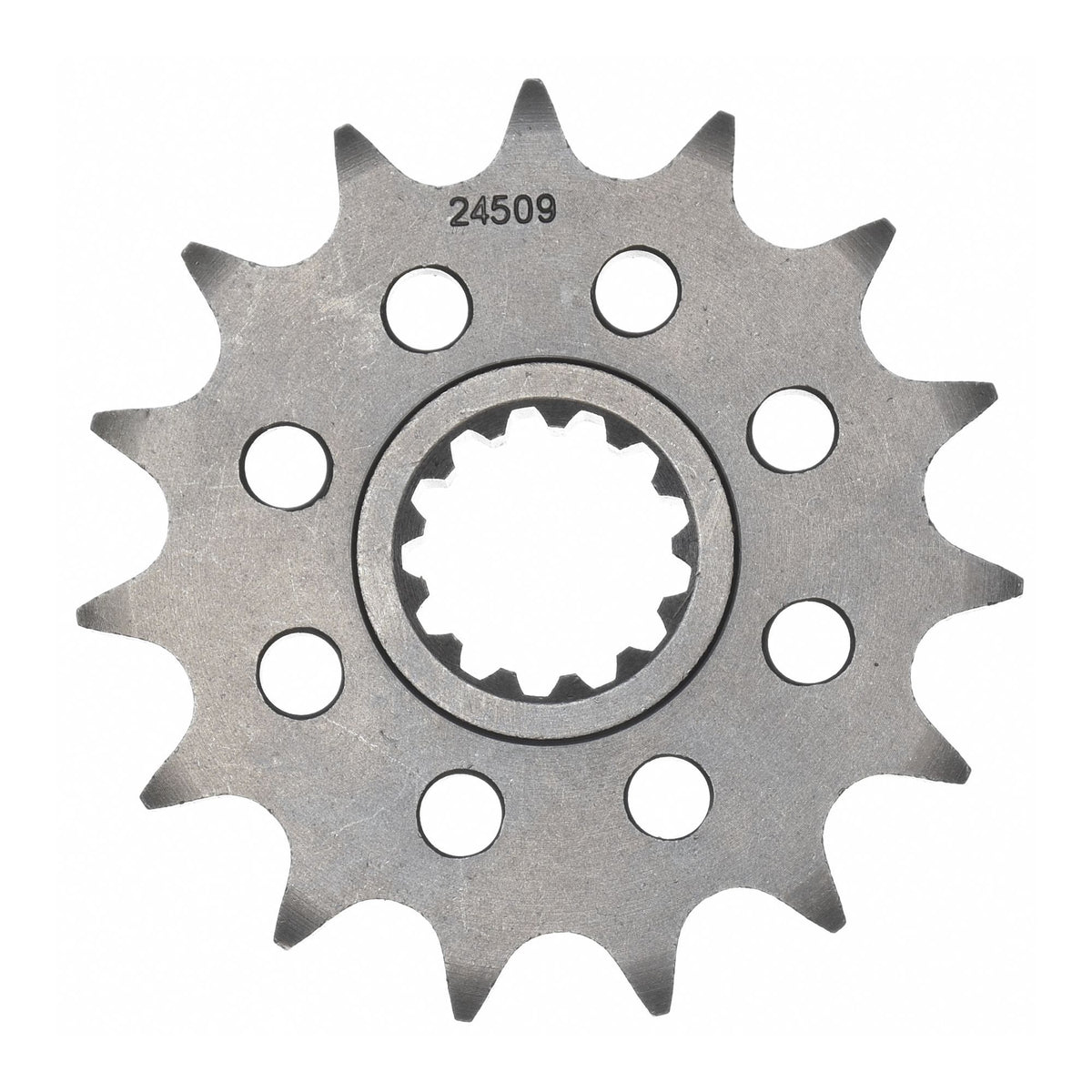

• Front sprocket: AFAM front sprocket #520 15 teeth - a24509.15
• Chain: AFAM chain 520 XSR-G Xs-ring 108 w. rivet link - a520xsr.g.108

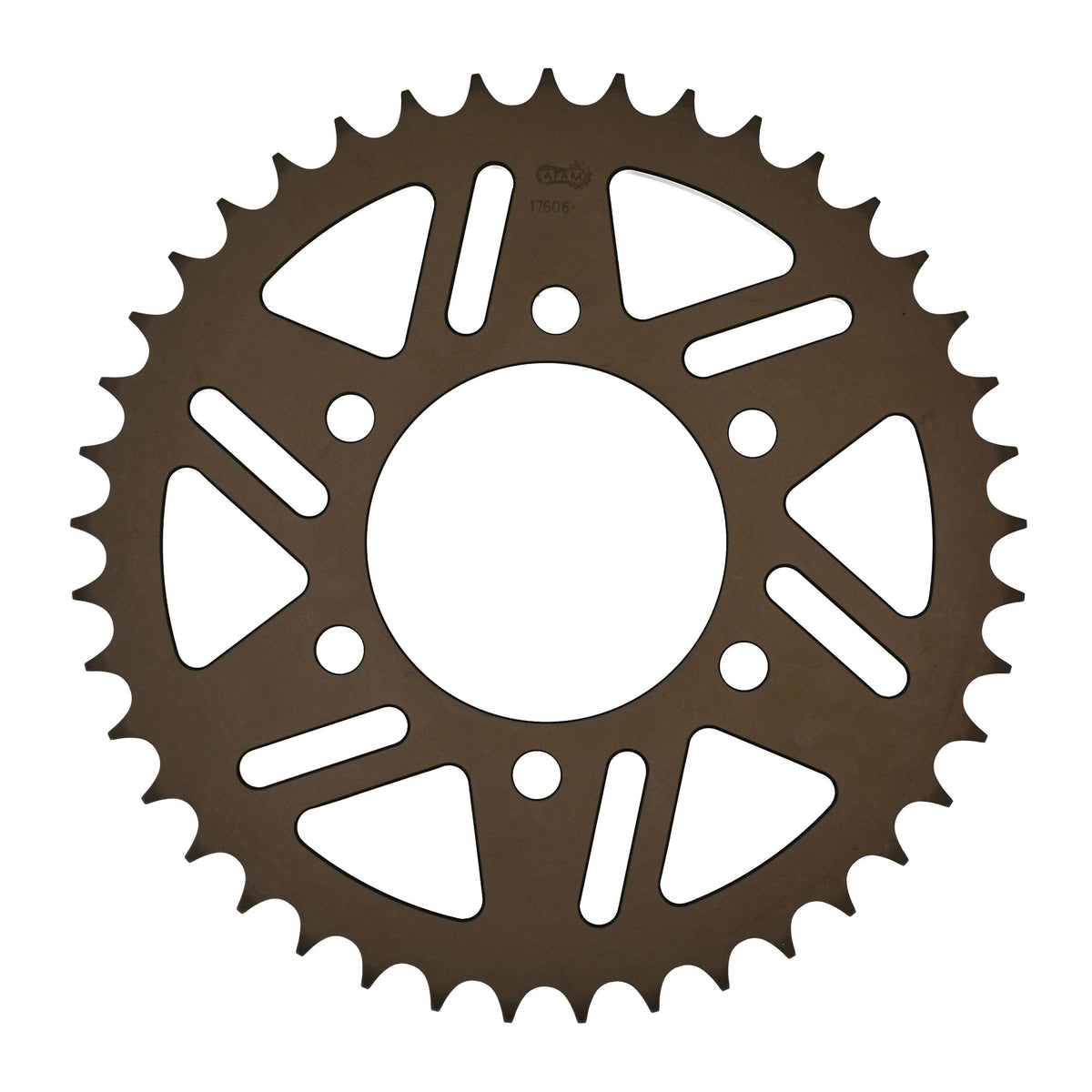

• Rear sprocket: AFAM rear sprocket ALU #520 40 teeth - a17606.40
• Gear ratio front sprocket-chain-rear sprocket: 15-108-40 conversion #520

AFAM 520 XSR-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 800 cc / road, sport and off-road

Technical data:
Pitch: 520
Pin length: 20.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 36.30 kN
Weight per 100 links: 1.58 kg

Unless stated otherwise: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-16401

Suitable for

Kawasaki 501 - 750 cc ZX-6R Ninja ZX600GG 1998
Kawasaki 501 - 750 cc ZX-6R Ninja ZX600GG 1999
