AFAM chain kit for Kawasaki ZX-6RR Ninja 05-06 520 XHR2G chain kit

AFAM chain kit for Kawasaki ZX-6RR Ninja 05-06 520 XHR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility representation only!

Components of the Kawasaki ZX-6RR Ninja ZX600N 2005-2006 chain kit

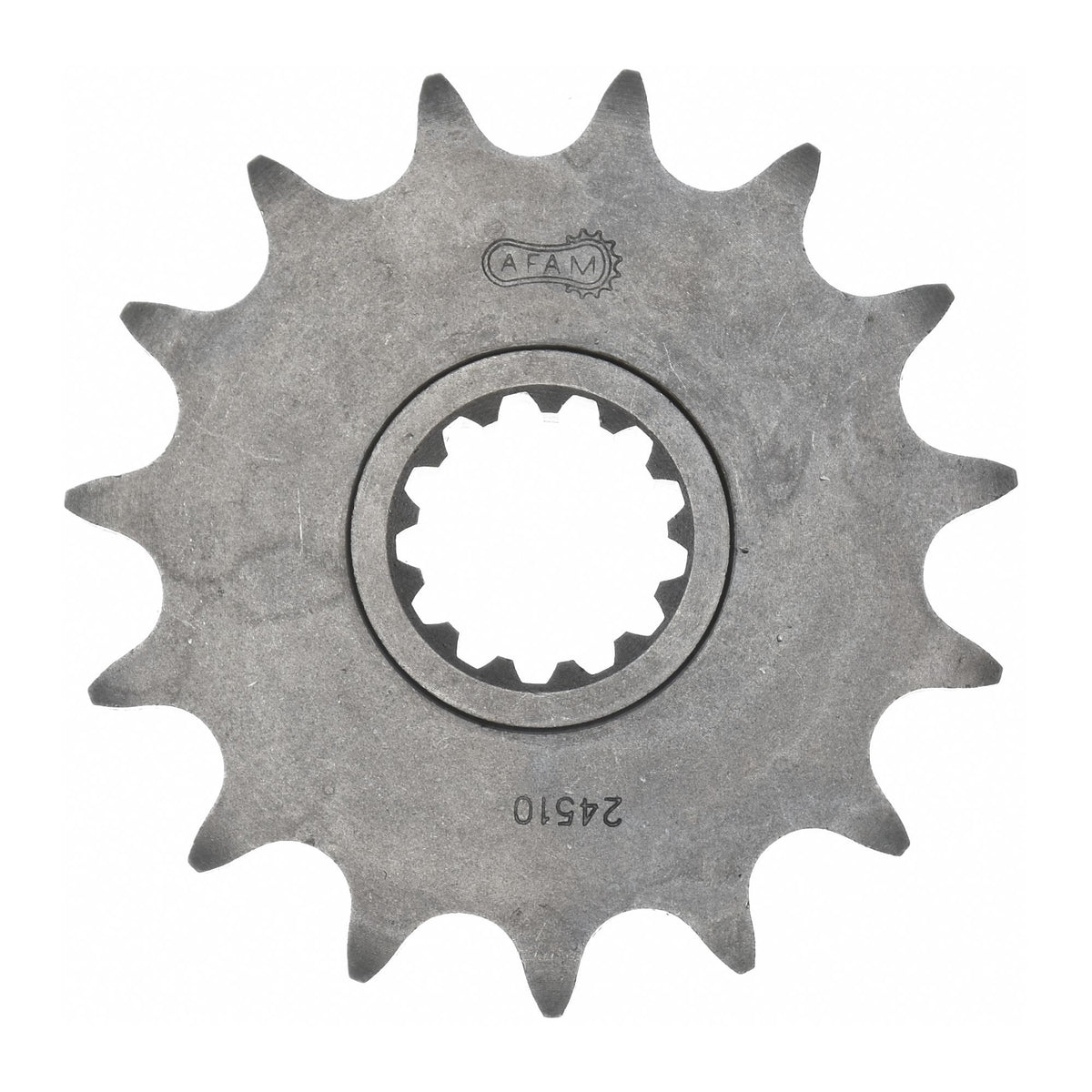

• Front sprocket: AFAM front sprocket #520 15 teeth - a24510.15
• Chain: AFAM chain 520 XHR2-G Xs-ring 110 with rivet link - a520xhr2.g.110
• Rear sprocket: AFAM steel rear sprocket #520 43 teeth - a16606.43
• Gear ratio sprocket-chain-rear sprocket: 15-110-43

AFAM 520 XHR2-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by engine displacement: up to 1000 cc / road and sport

Technical specifications:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer and was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-16409

Suitable for

Kawasaki 501 - 750 cc ZX-6RR Ninja ZX600N 2005
Kawasaki 501 - 750 cc ZX-6RR Ninja ZX600N 2006
