AFAM chain kit for Kawasaki ZX-6RR Ninja 05-06 520 XMR3 chain kit

AFAM Chain kit for Kawasaki ZX-6RR Ninja 05-06 520 XMR3 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer name used for compatibility purposes only!

Components of the Kawasaki ZX-6RR Ninja ZX600N 2005-2006 chain kit

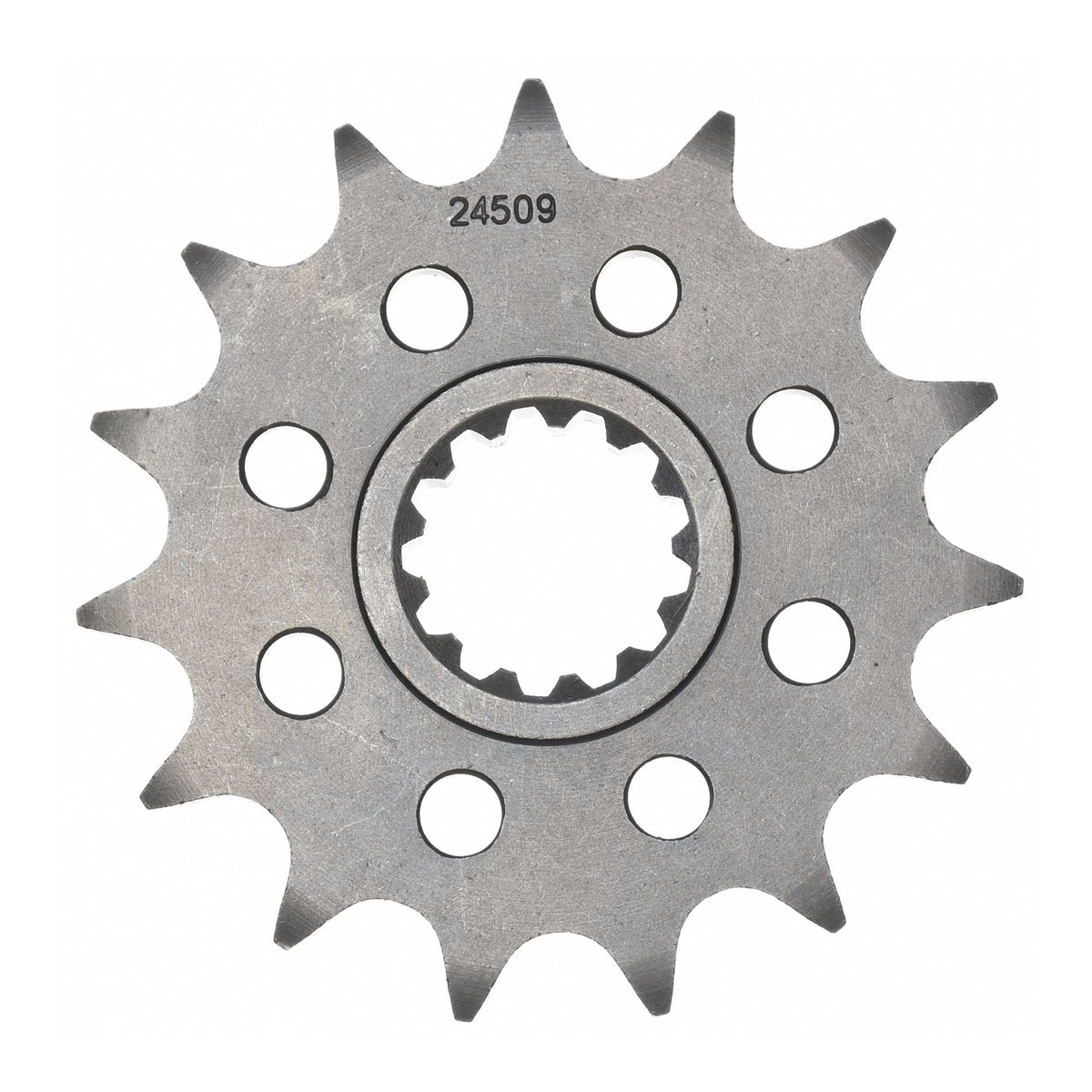

• Front sprocket: AFAM front sprocket #520 15 teeth - a24509.15
• Chain: AFAM chain 520 XMR3 Xs-Ring 110 links w. rivet link - a520xmr3.110

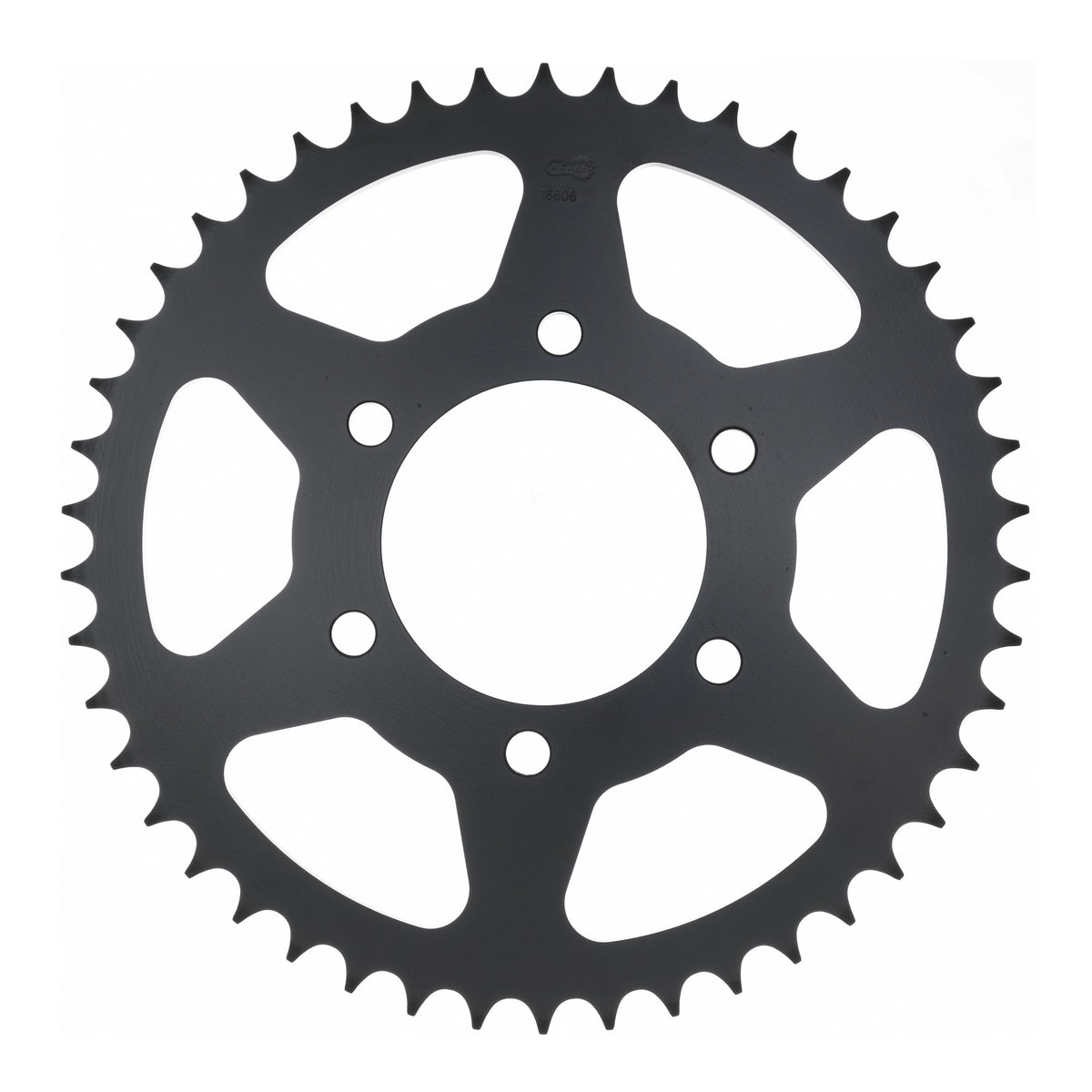

• Rear sprocket: AFAM rear sprocket STEEL #520 43 teeth - a16606.43
• Gear ratio front sprocket-chain-rear sprocket: 15-110-43

AFAM 520 XMR3

Reinforced chain with smooth-running properties
Xs-Ring chain
Color: Steel
Application by displacement: up to 650 cc / street

Technical data:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-16410

Suitable for

Kawasaki 501 - 750 cc ZX-6RR Ninja ZX600N 2005
Kawasaki 501 - 750 cc ZX-6RR Ninja ZX600N 2006
