AFAM chain kit for Kawasaki ZX-7RR Ninja 96-99 520 XMR3 chain kit

AFAM chain kit for Kawasaki ZX-7RR Ninja 96-99 520 XMR3 chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility illustration only!

Components of the chain kit Kawasaki ZX-7RR Ninja ZX750N 1996-1999 conversion #520

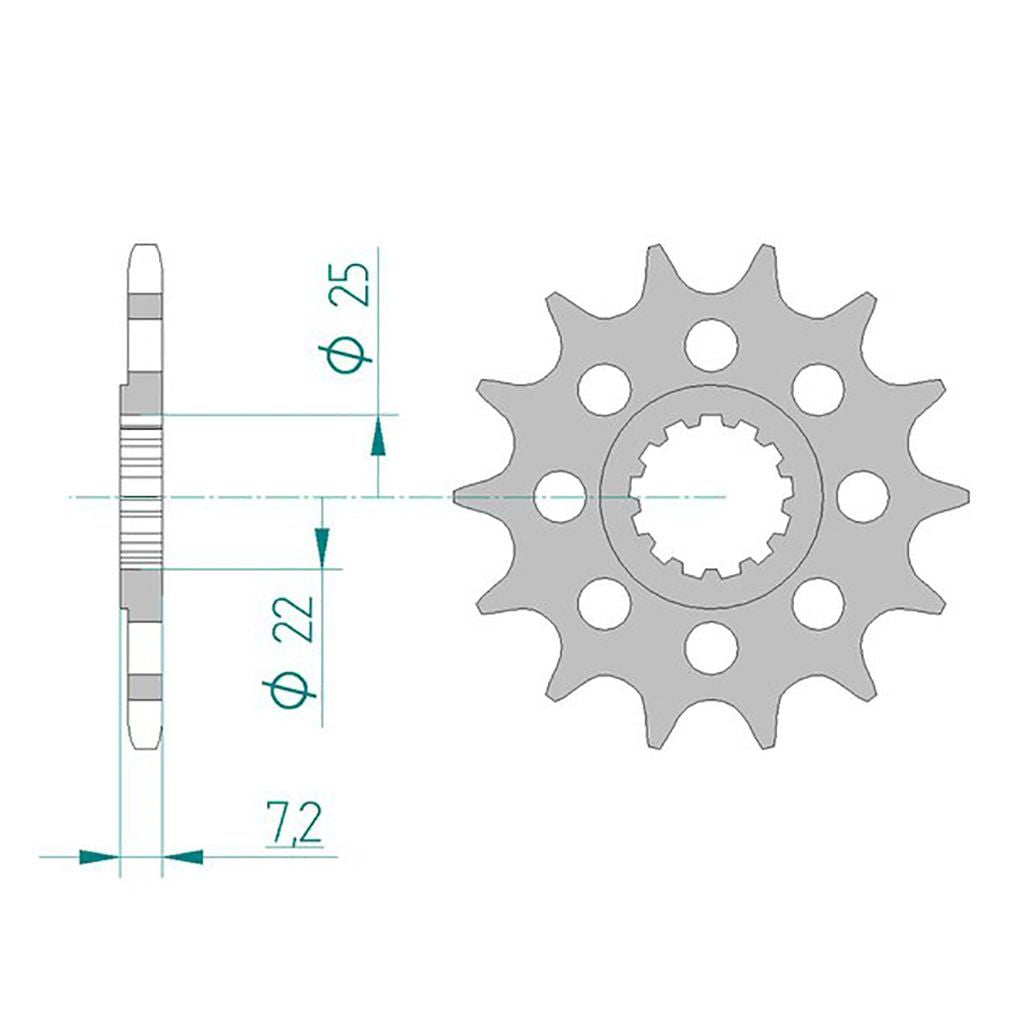

• Front sprocket: AFAM front sprocket #520 16 teeth - a28404.16

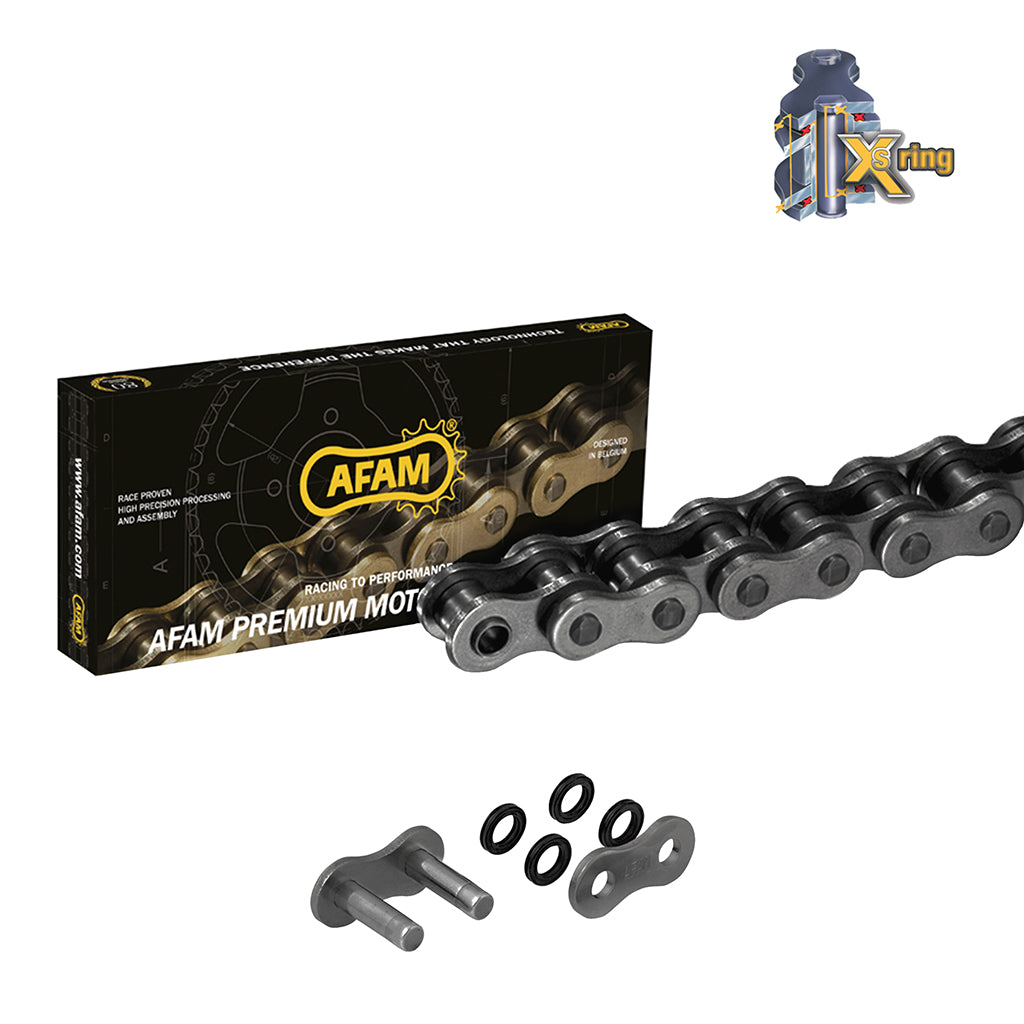

• Chain: AFAM chain 520 XMR3 Xs-ring 110 w. rivet link - a520xmr3.110

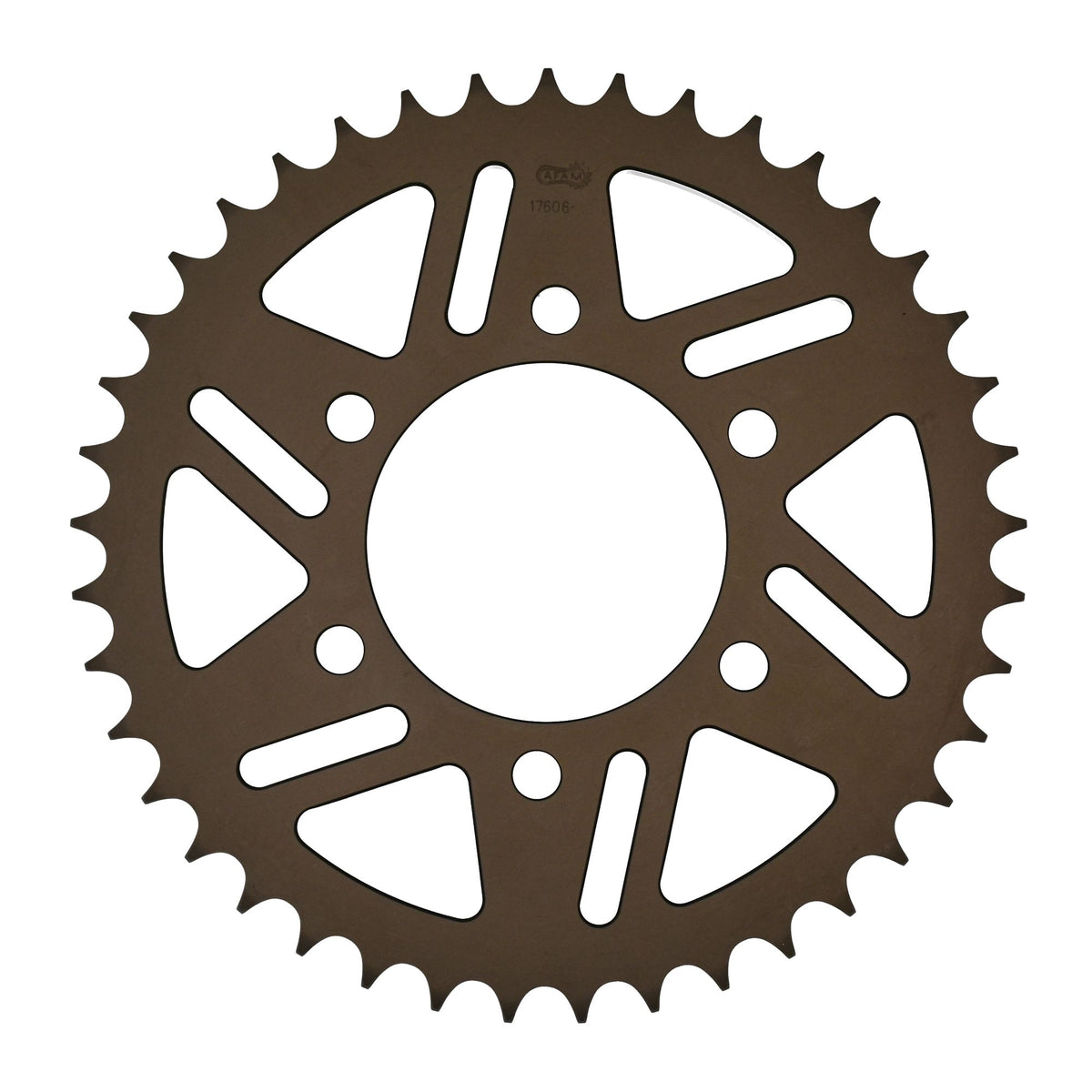

• Rear sprocket: AFAM rear sprocket ALU #520 42 teeth - a17606.42
• Gear ratio front sprocket-chain-rear sprocket: 16-110-42 conversion #520

AFAM 520 XMR3

Reinforced chain with low-friction properties
Xs-ring chain
Color: Steel
Application by displacement: up to 650 cc / street

Technical specifications:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for the purpose of identifying compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-39971

Fits

Kawasaki 501 - 750 cc ZX-7RR Ninja ZX750N 1996
Kawasaki 501 - 750 cc ZX-7RR Ninja ZX750N 1997
Kawasaki 501 - 750 cc ZX-7RR Ninja ZX750N 1998
Kawasaki 501 - 750 cc ZX-7RR Ninja ZX750N 1999
