AFAM chain kit for Kawasaki ZXR 400 91-01 520 XHR2G chain kit

AFAM chain kit for Kawasaki ZXR 400 91-01 520 XHR2G chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility identification purposes only!

Components of the Kawasaki ZXR 400 ZX400L 1991-2001 chain kit

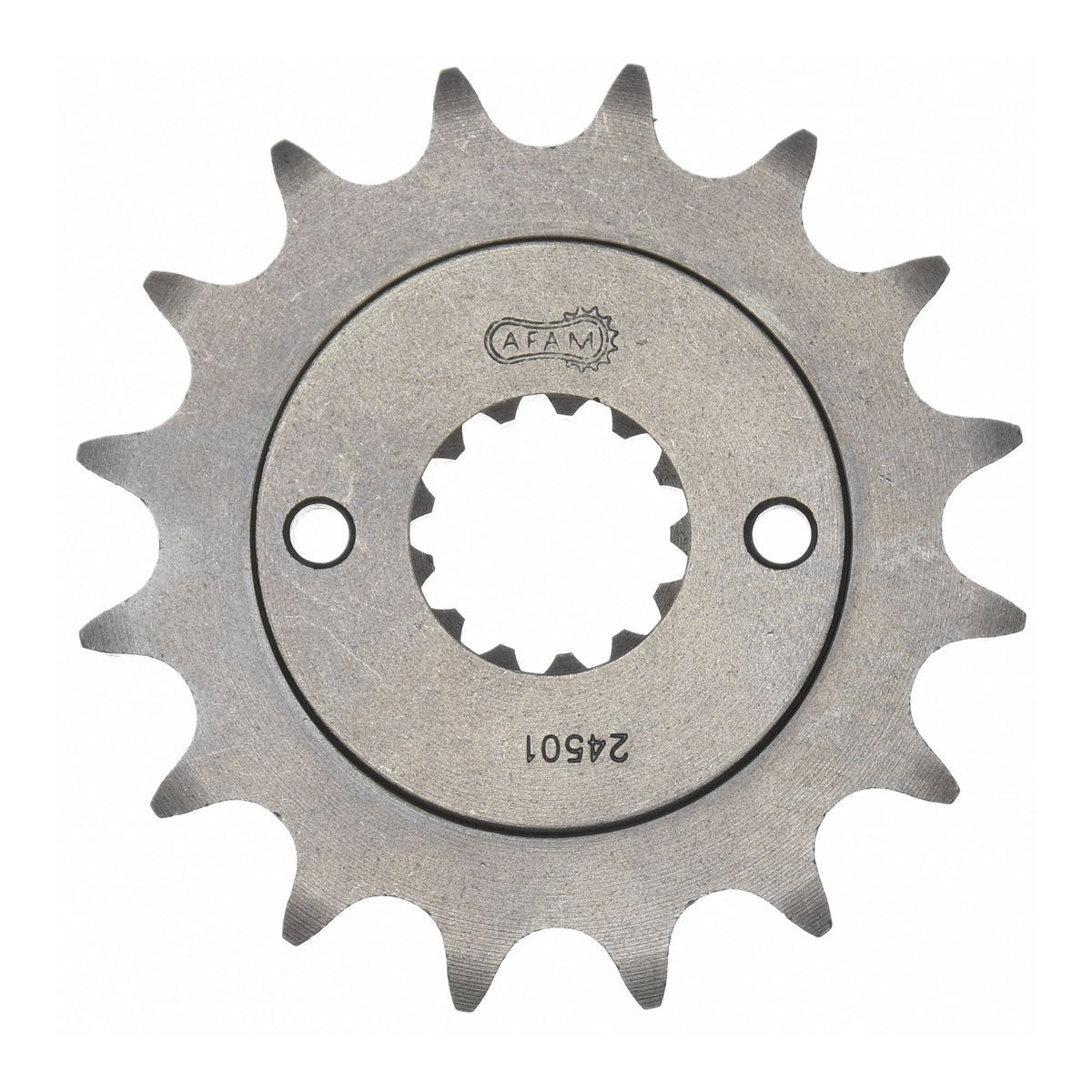

• Front sprocket: AFAM front sprocket #520 15 teeth - a24501.15
• Chain: AFAM chain 520 XHR2-G Xs-ring 110 links w. rivet link - a520xhr2.g.110

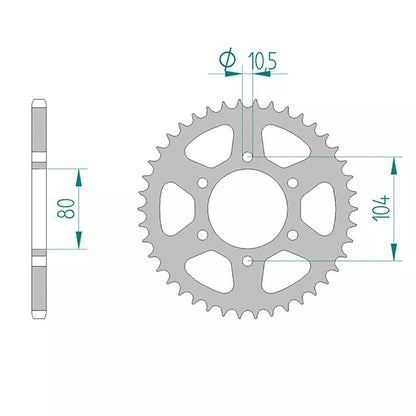

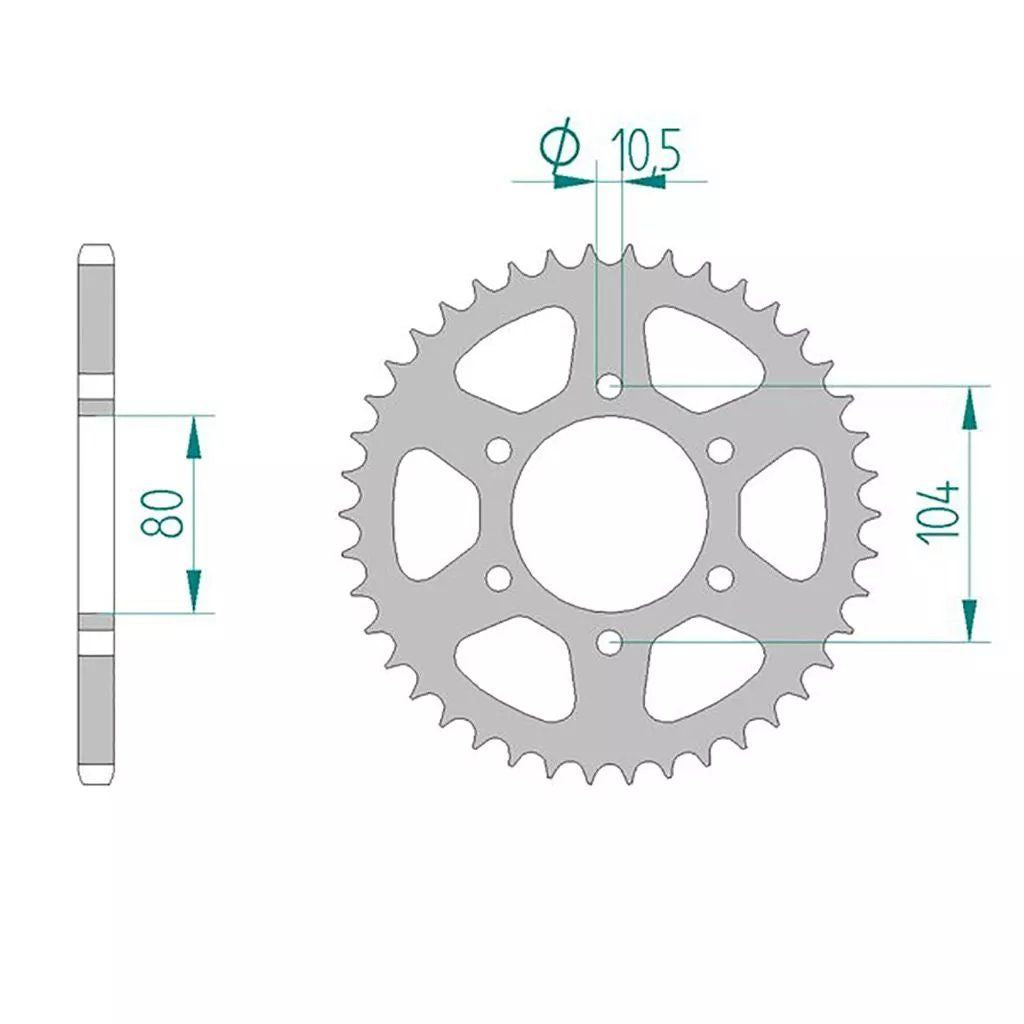

• Rear sprocket: Esjot rear sprocket 16403-45 STEEL #520 45 teeth - a16403.45
• Gear ratio sprocket-chain-rear sprocket: 15-110-45

AFAM 520 XHR2-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by engine capacity: up to 1000 cc / road and sport

Technical data:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-26570

Suitable for

Kawasaki 251 - 500 cc ZXR 400 ZX400L 1991
Kawasaki 251 - 500 cc ZXR 400 ZX400L 1992
Kawasaki 251 - 500 cc ZXR 400 ZX400L 1993
Kawasaki 251 - 500 cc ZXR 400 ZX400L 1994
Kawasaki 251 - 500 cc ZXR 400 ZX400L 1995
Kawasaki 251 - 500 cc ZXR 400 ZX400L 1996
Kawasaki 251 - 500 cc ZXR 400 ZX400L 1997
Kawasaki 251 - 500 cc ZXR 400 ZX400L 1998
Kawasaki 251 - 500 cc ZXR 400 ZX400L 1999
Kawasaki 251 - 500 cc ZXR 400 ZX400L 2000
Kawasaki 251 - 500 cc ZXR 400 ZX400L 2001
