AFAM chain kit for Kawasaki ZXR 750 1990 530 XSR2G chain kit

AFAM Chain Kit for Kawasaki ZXR 750 1990 530 XSR2G Chain Kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit for Kawasaki ZXR 750 ZX750H 1990-1990

• Sprocket: AFAM sprocket #530 16 teeth - a28400.16
• Chain: AFAM chain 530 XSR2-G Xs-ring 112 with rivet link - a530xsr2.g.112

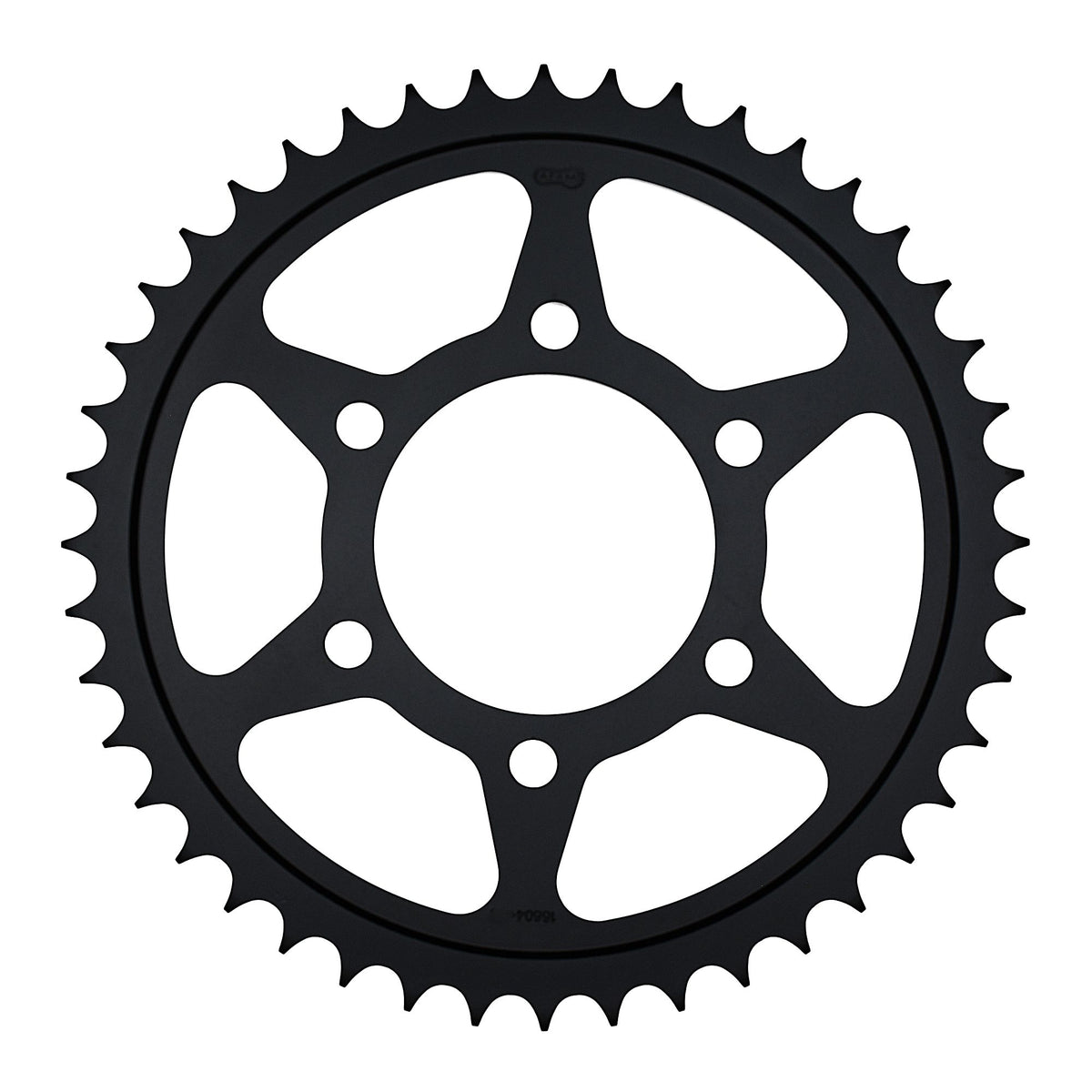

• Rear sprocket: AFAM STEEL rear sprocket #530 46 teeth - a16604.46
• Gear ratio sprocket-chain-rear sprocket: 16-112-46

AFAM 530 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1100 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer and was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-36375

Suitable for

Kawasaki 501 - 750 cc ZXR 750 ZX750H 1990
