AFAM chain kit for Kawasaki ZXR 750 93-95 530 XSR2G chain kit

AFAM Chain Kit for Kawasaki ZXR 750 93-95 530 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit for Kawasaki ZXR 750 ZX750L 1993-1995

• Front sprocket: AFAM sprocket #530 16 teeth - a28400.16
• Chain: AFAM chain 530 XSR2-G Xs-Ring 110 w/ rivet link - a530xsr2.g.110

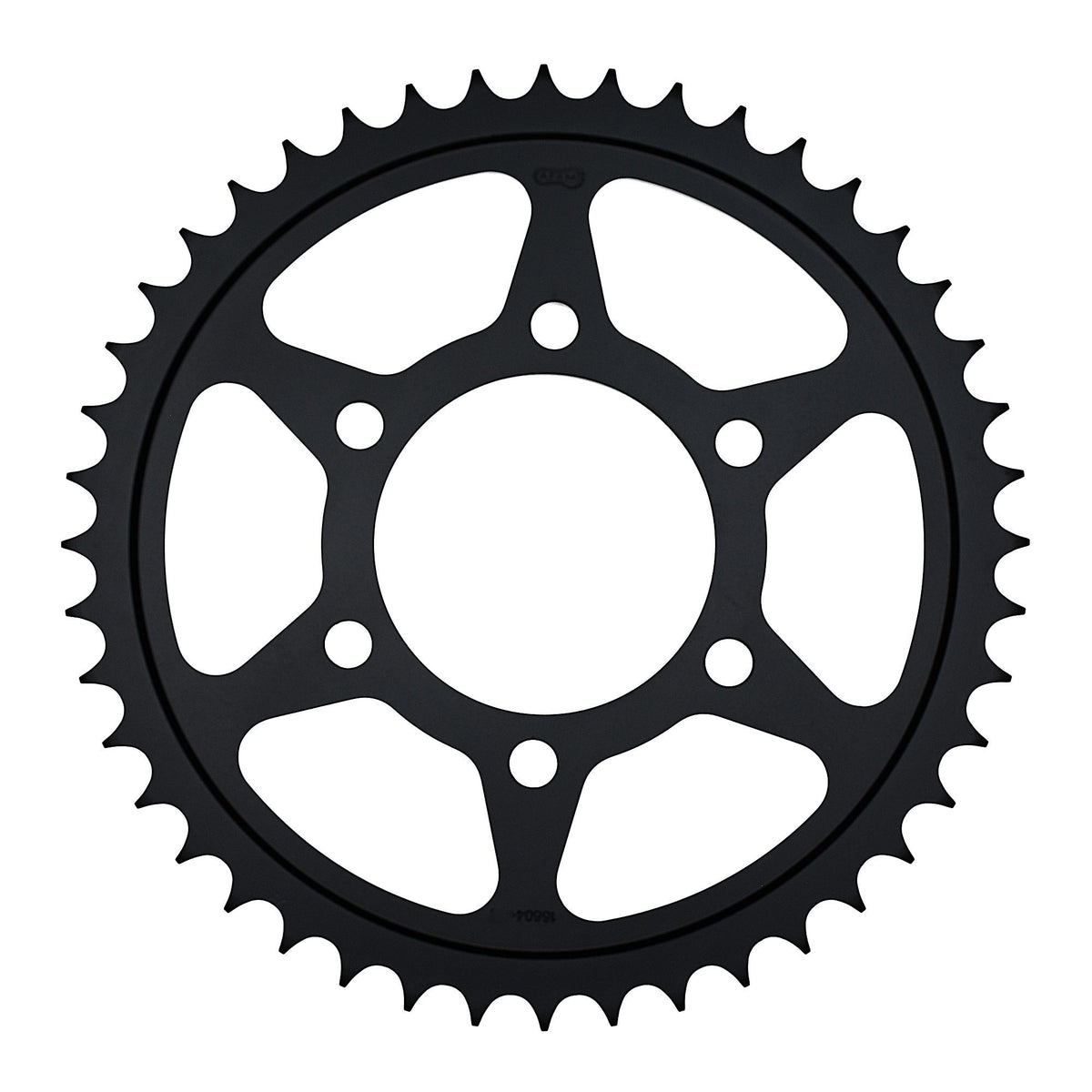

• Rear sprocket: AFAM rear sprocket STEEL #530 44 teeth - a16604.44
• Gear ratio sprocket-chain-rear sprocket: 16-110-44

AFAM 530 XSR2-G

Super reinforced chain with low-friction properties
Xs-Ring chain
Color: Gold
Application by engine displacement: up to 1100 cc / street and sport

Technical specifications:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-55462

Suitable for

Kawasaki 501 - 750 cc ZXR 750 ZX750L 1993
Kawasaki 501 - 750 cc ZXR 750 ZX750L 1994
Kawasaki 501 - 750 cc ZXR 750 ZX750L 1995
