AFAM chain kit for Kawasaki ZXR 750 RR 91-92 530 XHR2G chain kit

AFAM chain kit for Kawasaki ZXR 750 RR 91-92 530 XHR2G chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Kawasaki ZXR 750 RR ZX750K 1991-1992 chain kit

• Front sprocket: AFAM sprocket #530 16 teeth - a28400.16
• Chain: AFAM chain 530 XHR2-G Xs-ring 108 with rivet master link - a530xhr2.g.108

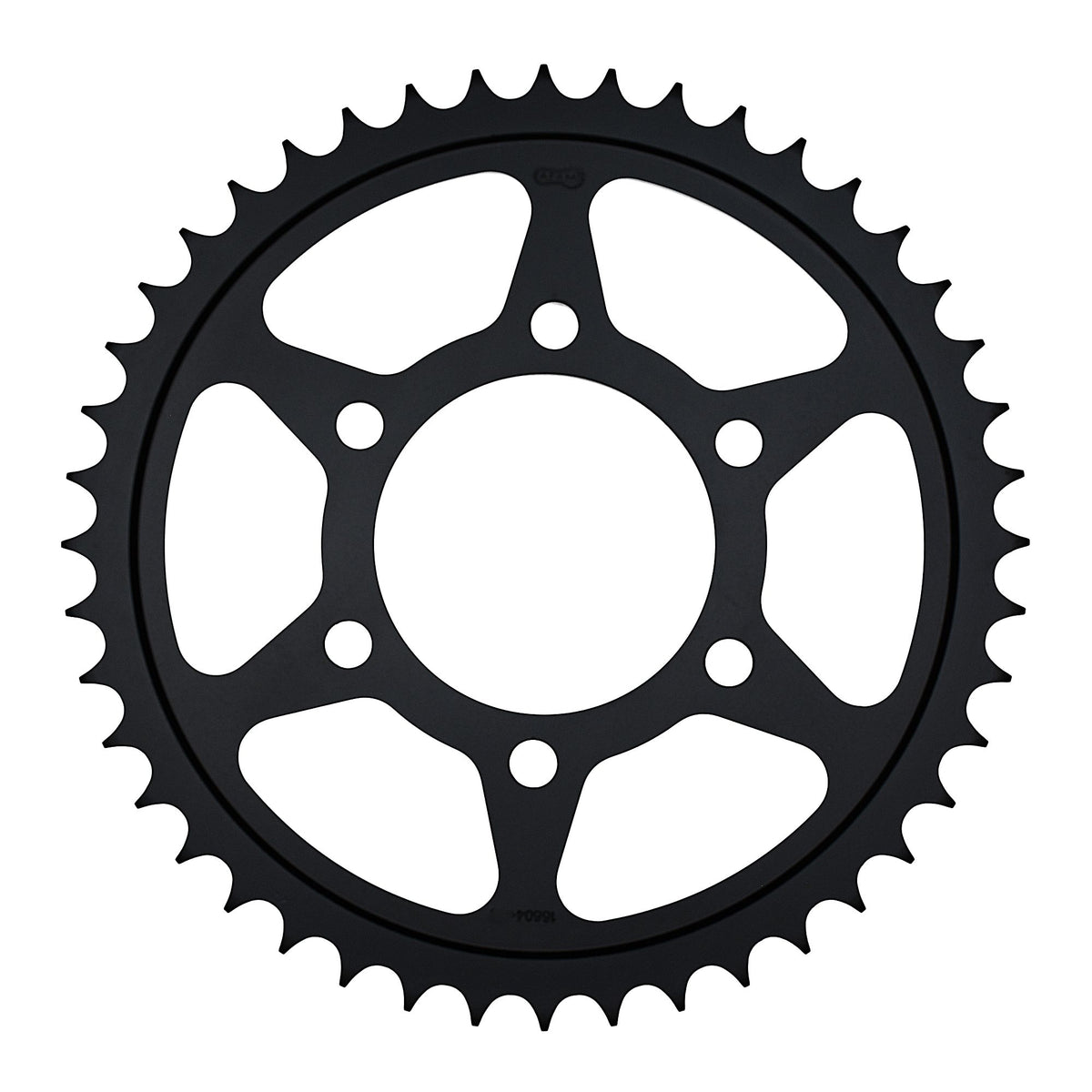

• Rear sprocket: AFAM steel sprocket #530 42 teeth - a16604.42
• Gear ratio sprocket-chain-rear sprocket: 16-108-42

AFAM 530 XHR2-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1400 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The goods offered are an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-17198

Suitable for

Kawasaki 501 - 750 cc ZXR 750 RR ZX750K 1991
Kawasaki 501 - 750 cc ZXR 750 RR ZX750K 1992
