AFAM chain kit for Kawasaki ZXR 750 RR 91-92 530 XHR2G chain kit

AFAM Chain Kit for Kawasaki ZXR 750 RR 91-92 530 XHR2G Chain Kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit for Kawasaki ZXR 750 RR ZX750K 1991-1992

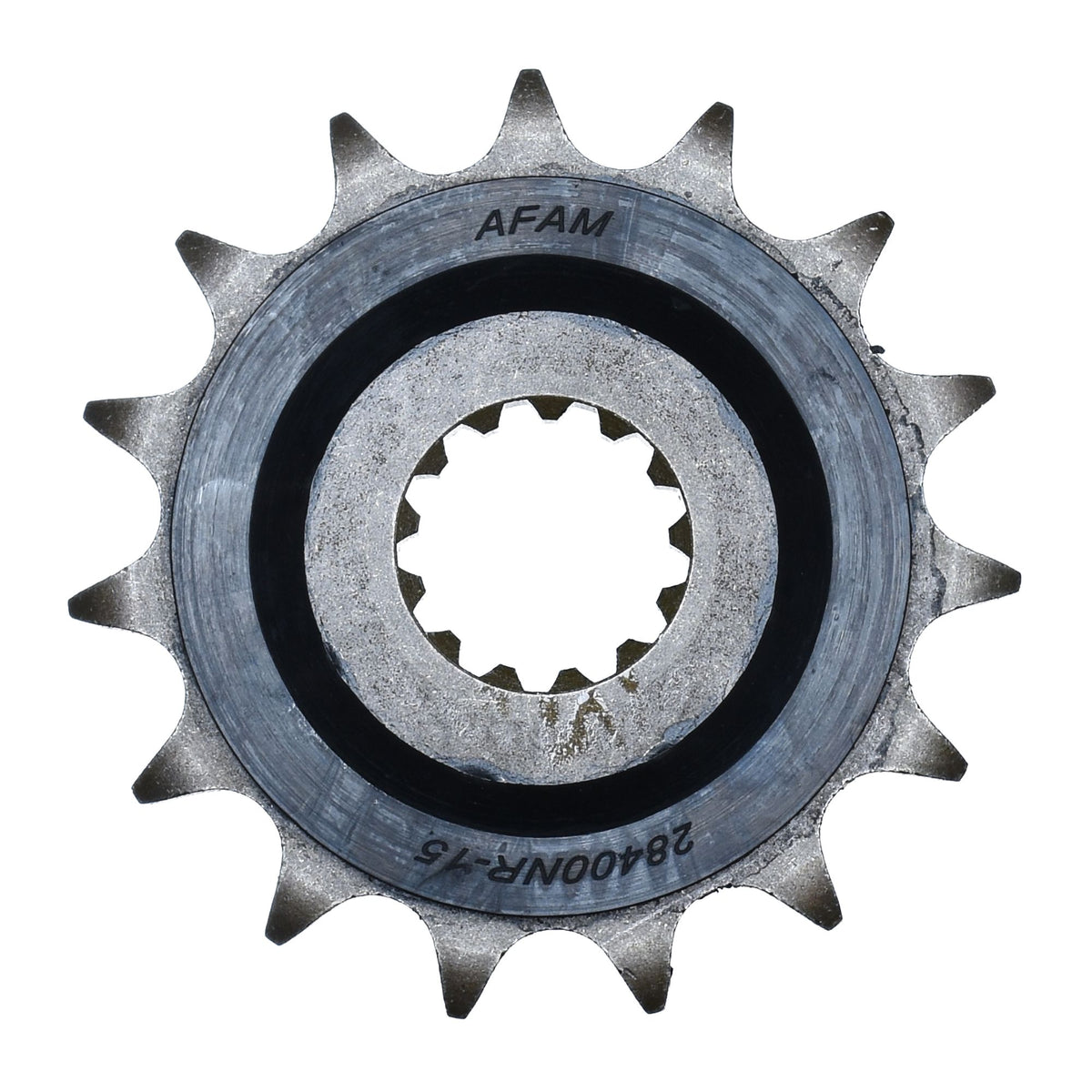

• Front sprocket: AFAM rubberized sprocket #530 Silent Sprocket 16 teeth - a28400oem.16
• Chain: AFAM chain 530 XHR2-G Xs-Ring 108 links w. rivet link - a530xhr2.g.108

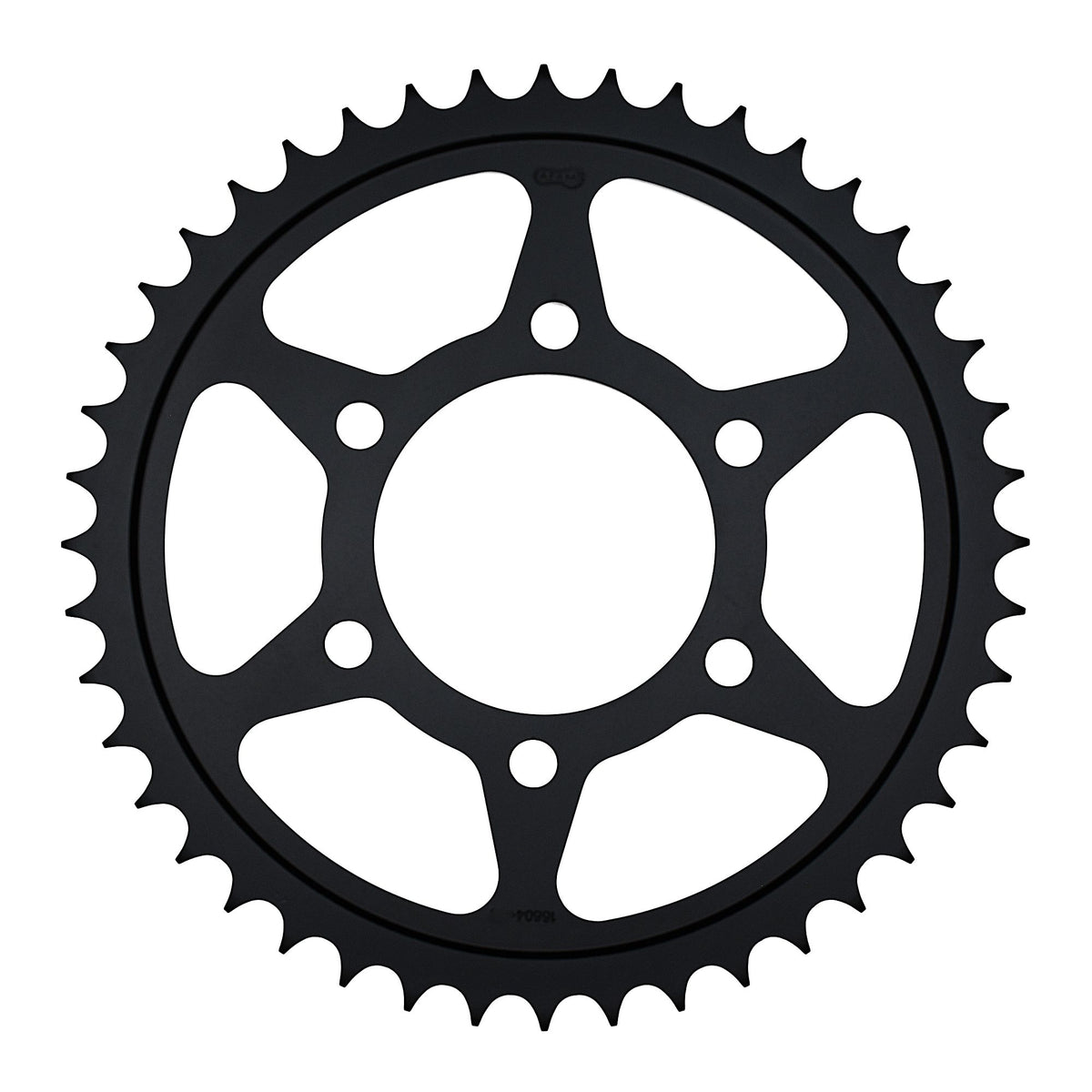

• Rear sprocket: AFAM STEEL sprocket #530 42 teeth - a16604.42
• Gear ratio front sprocket-chain-rear sprocket: 16-108-42

AFAM 530 XHR2-G

Hyper-reinforced chain with smooth-running properties. The "all-rounder"!
Xs-Ring chain
Color: Gold
Application by displacement: up to 1400 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The goods offered are accessories/spare parts from a third-party manufacturer and were not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-20130

Fits

Kawasaki 501 - 750 cc ZXR 750 RR ZX750K 1991
Kawasaki 501 - 750 cc ZXR 750 RR ZX750K 1992
