AFAM chain kit for Kawasaki ZXR 750 RR 93-95 530 XHR2G chain kit

AFAM Chain Kit for Kawasaki ZXR 750 RR 93-95 530 XHR2G Chain Kit

Chain kit or chain set for the assigned model as per article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - mentions of manufacturer are for compatibility purposes only!

Components of the chain kit Kawasaki ZXR 750 RR ZX750M 1993-1995

• Front sprocket: AFAM front sprocket #530 16 teeth - a28400.16
• Chain: AFAM chain 530 XHR2-G Xs-ring 108 w. rivet link - a530xhr2.g.108

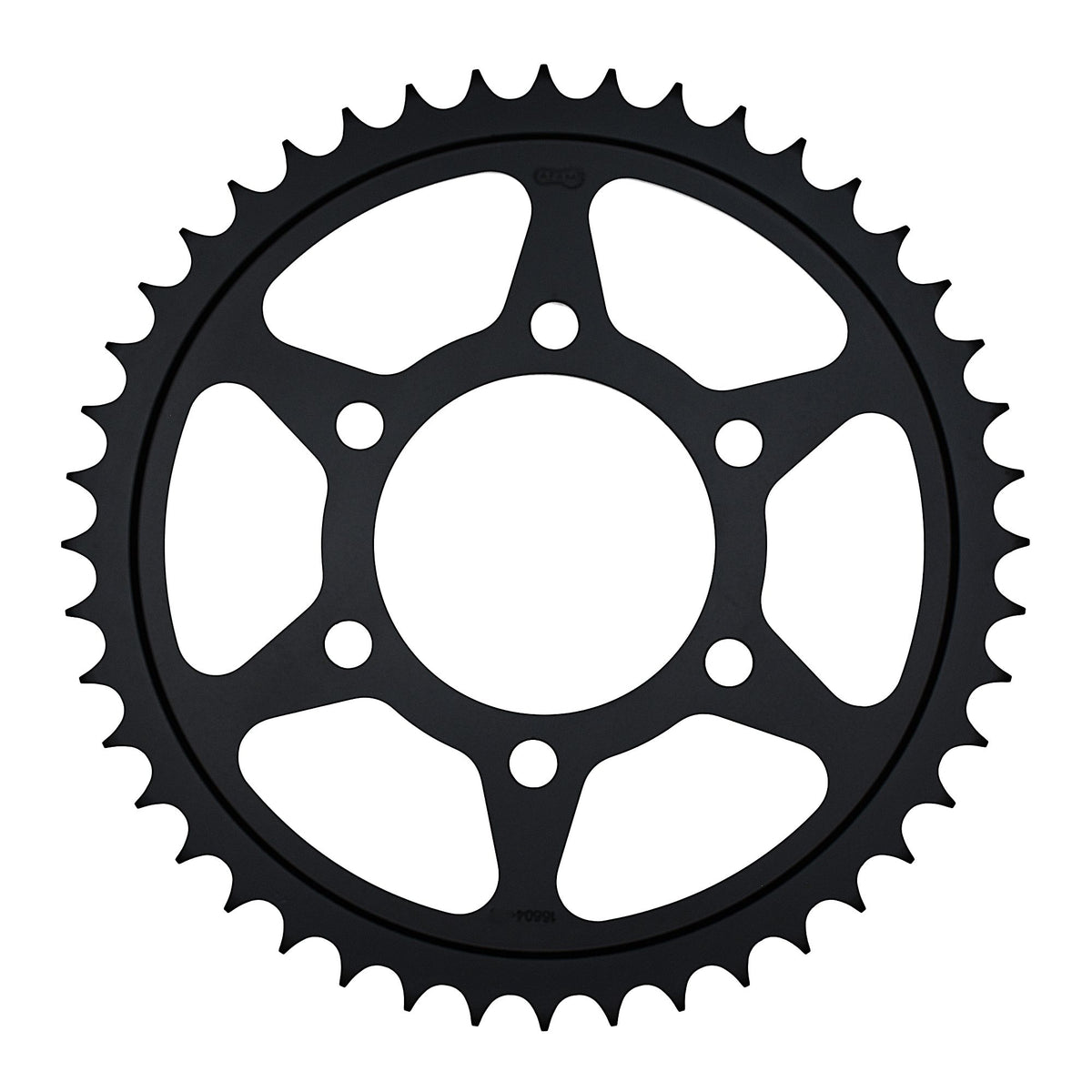

• Rear sprocket: AFAM rear sprocket STEEL #530 41 teeth - a16604.41
• Gear ratio front sprocket-chain-rear sprocket: 16-108-41

AFAM 530 XHR2-G

Hyper-reinforced chain with smooth-running properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1400 cc / road and sport

Technical specifications:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-32470

Suitable for

Kawasaki 501 - 750 cc ZXR 750 RR ZX750M 1993
Kawasaki 501 - 750 cc ZXR 750 RR ZX750M 1994
Kawasaki 501 - 750 cc ZXR 750 RR ZX750M 1995
