AFAM chain kit for Kawasaki ZXR 750 RR 93-95 530 XHR2G chain kit

AFAM chain kit for Kawasaki ZXR 750 RR 93-95 530 XHR2G chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit for Kawasaki ZXR 750 RR ZX750M 1993-1995

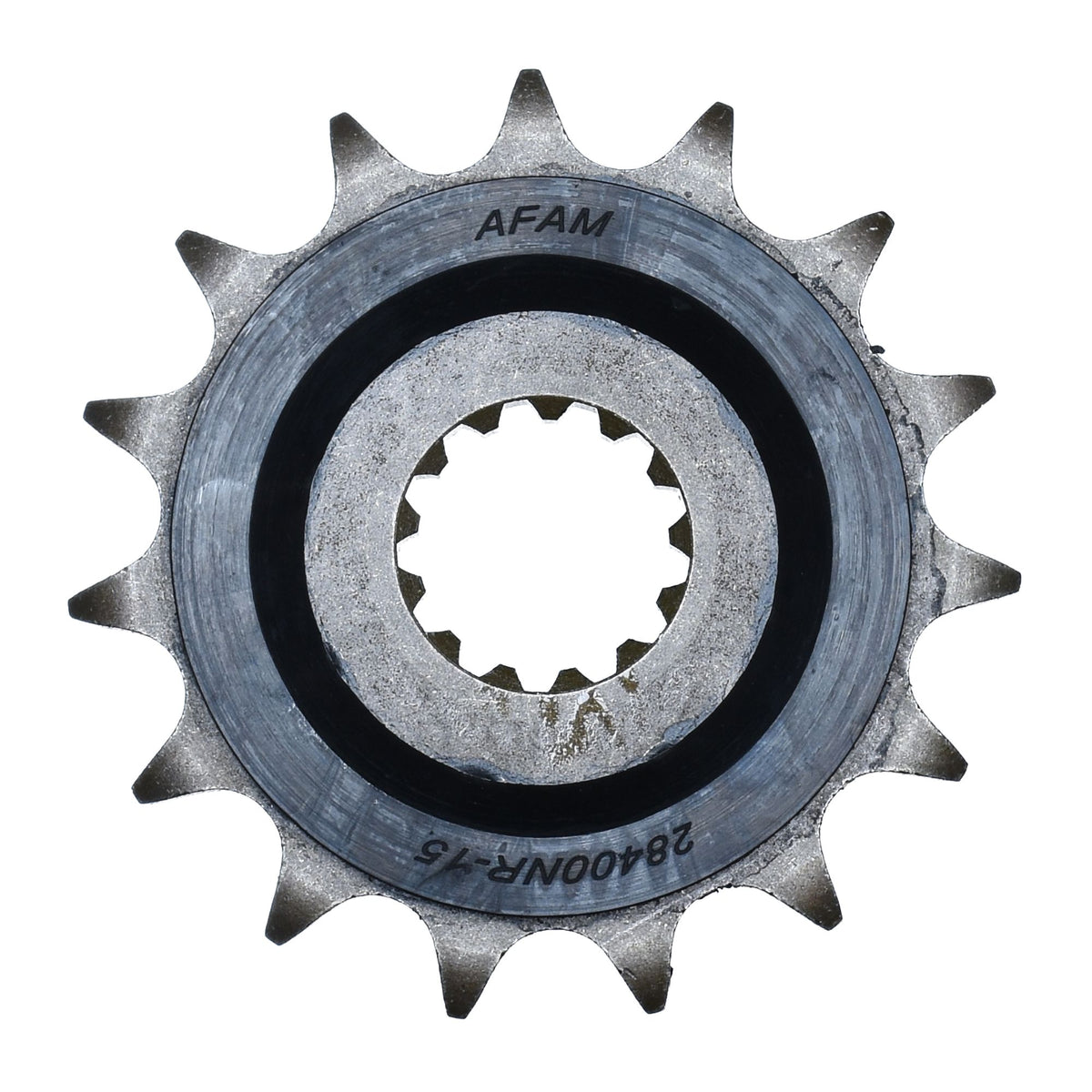

• Sprocket: AFAM rubberized sprocket #530 Silent Sprocket 16 teeth - a28400oem.16
• Chain: AFAM chain 530 XHR2-G Xs-ring 108 w. rivet link - a530xhr2.g.108

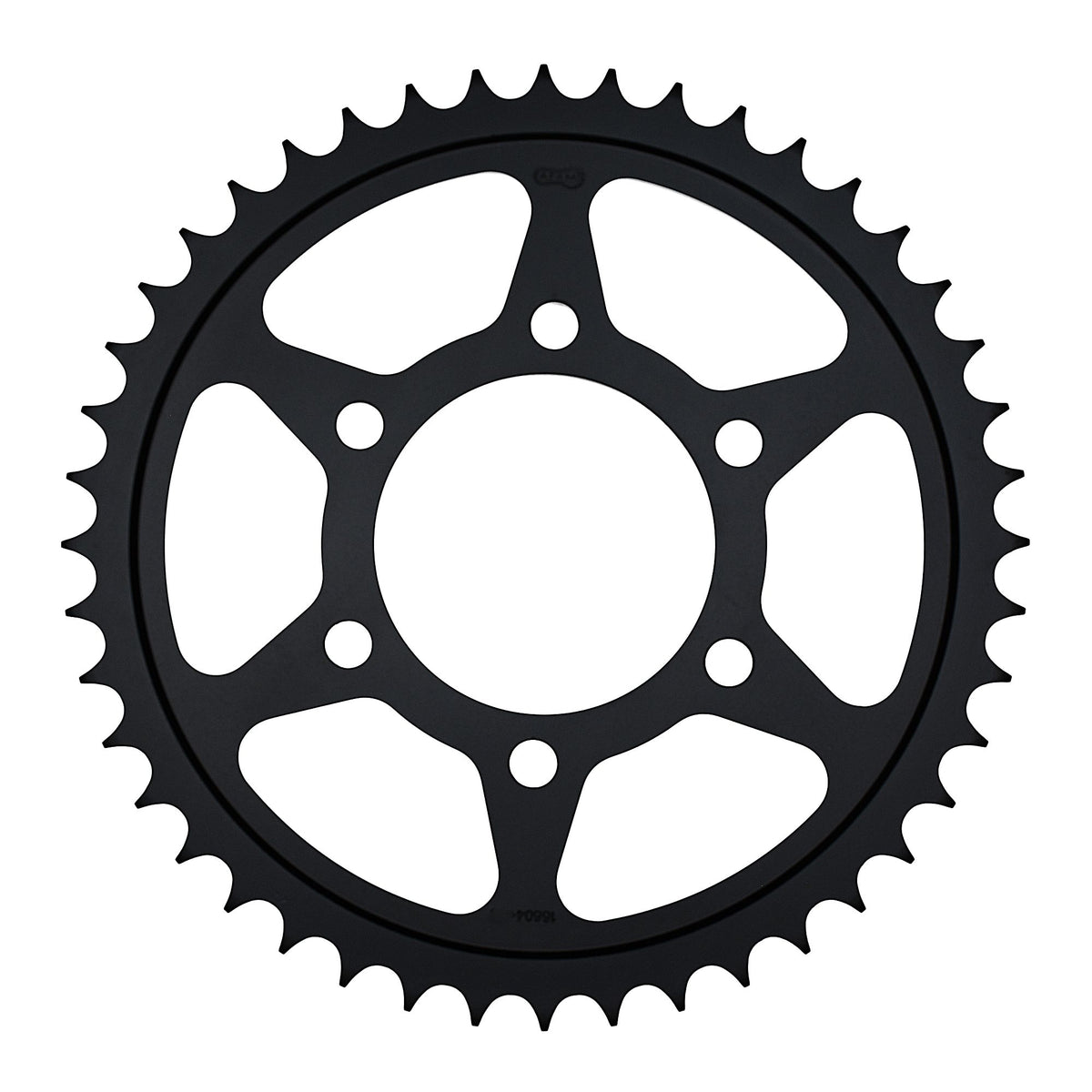

• Chain wheel: AFAM STEEL chain wheel #530 41 teeth - a16604.41
• Gear ratio sprocket-chain-chain wheel: 16-108-41

AFAM 530 XHR2-G

Hyper-reinforced chain with smooth-running properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1400 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-32471

Suitable for

Kawasaki 501 - 750 cc ZXR 750 RR ZX750M 1993
Kawasaki 501 - 750 cc ZXR 750 RR ZX750M 1994
Kawasaki 501 - 750 cc ZXR 750 RR ZX750M 1995
