AFAM chain kit for Kawasaki ZZ-R 1100 93-94 530 XSR2G chain kit

AFAM chain kit for Kawasaki ZZ-R 1100 93-94 530 XSR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Kawasaki ZZ-R 1100 ZXT10D 1993-1994 chain kit

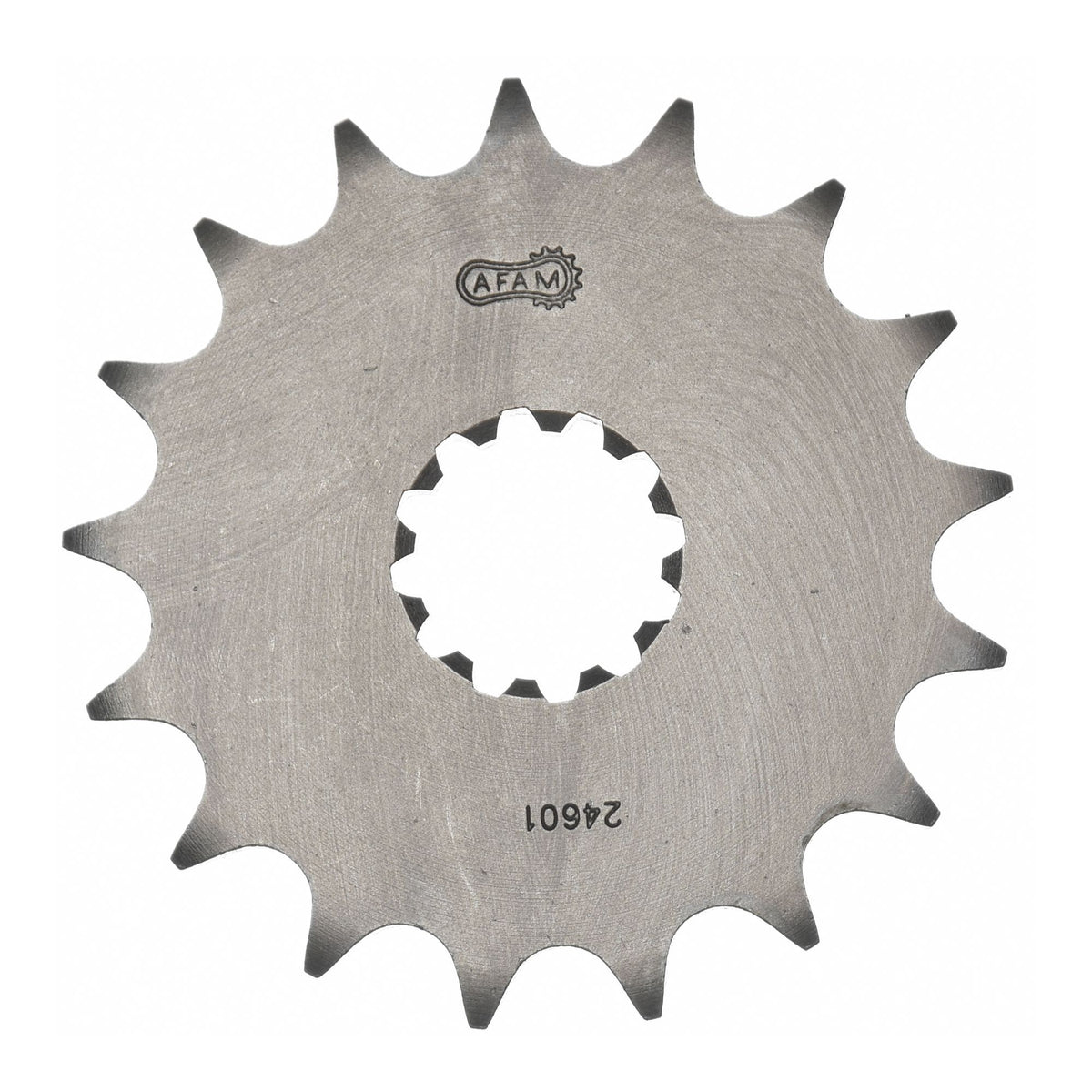

• Sprocket: AFAM sprocket #530 17 teeth - a24601.17
• Chain: AFAM chain 530 XSR2-G Xs-ring 110 w. rivet link - a530xsr2.g.110

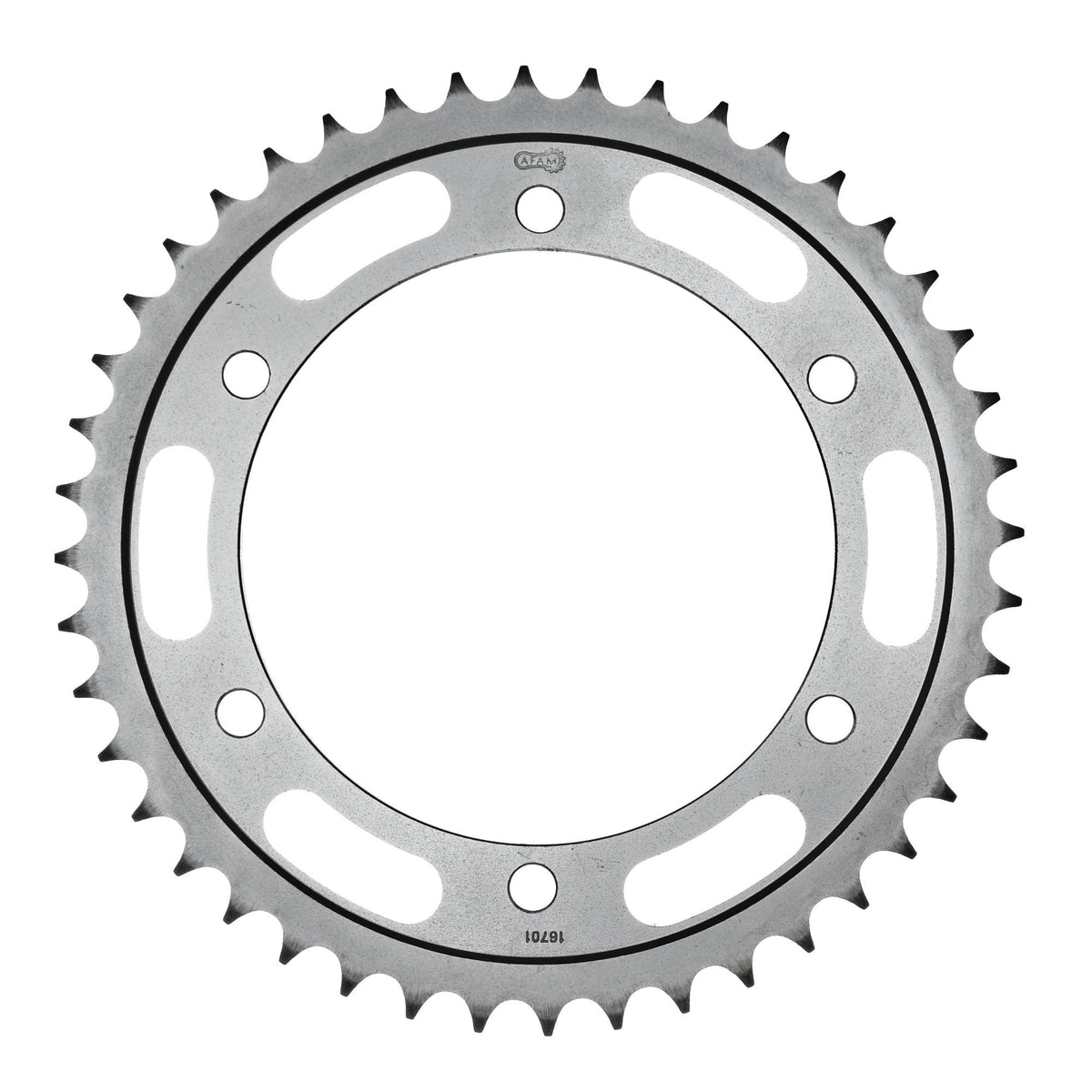

• Rear sprocket: AFAM STEEL rear sprocket #530 45 teeth - a16701.45
• Gear ratio sprocket-chain-rear sprocket: 17-110-45

AFAM 530 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1100 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-53447

Suitable for

Kawasaki over 1001 cc ZZ-R 1100 ZXT10D 1993
Kawasaki over 1001 cc ZZ-R 1100 ZXT10D 1994
