AFAM chain kit for Kawasaki ZZ-R 250 90-01 520 XHR2G chain kit

AFAM Chain Kit for Kawasaki ZZ-R 250 90-01 520 XHR2G Chain Kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a matching master link.

Unless otherwise stated: Not an original part - manufacturer names are mentioned only to indicate compatibility!

Components of the Kawasaki ZZ-R 250 EX250H 1990-2001 chain kit

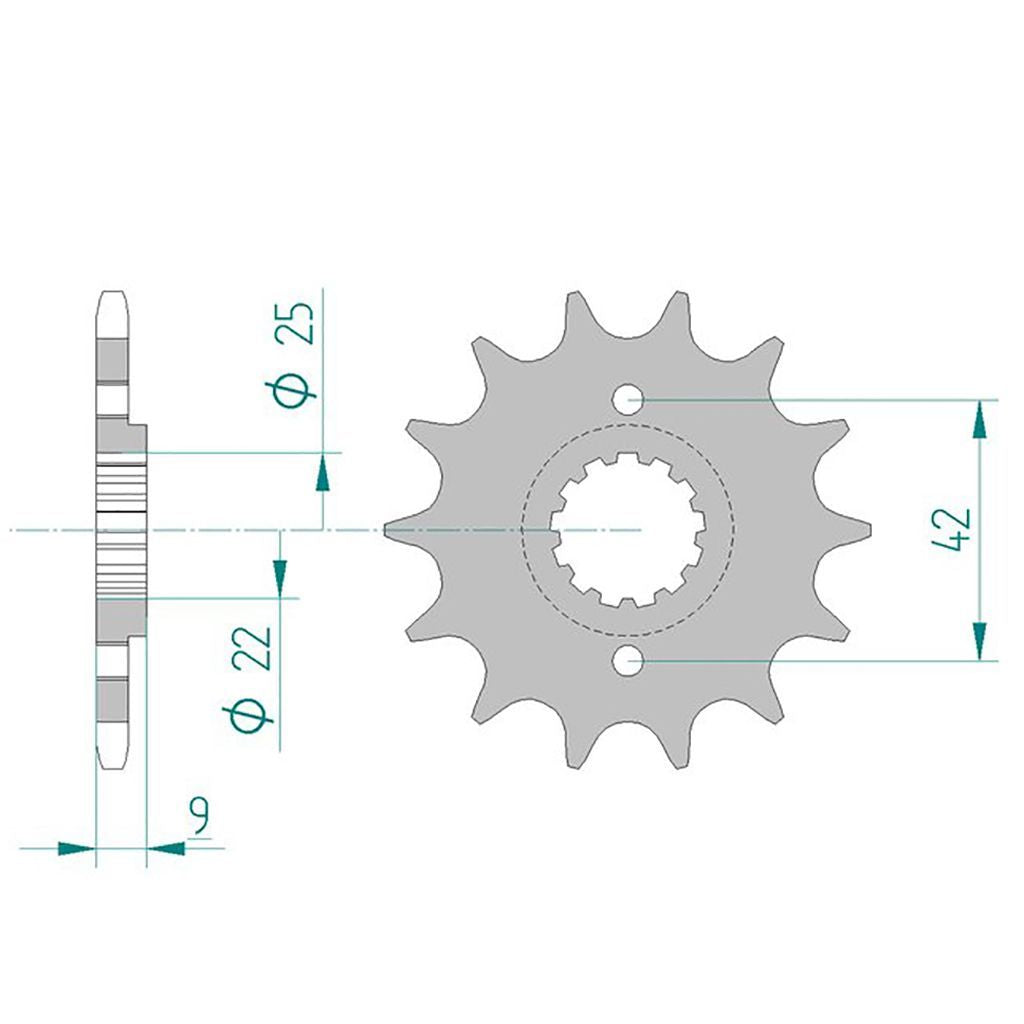

• Front sprocket: AFAM front sprocket #520 14 teeth - a24502.14
• Chain: AFAM chain 520 XHR2-G Xs-ring 108 with rivet link - a520xhr2.g.108

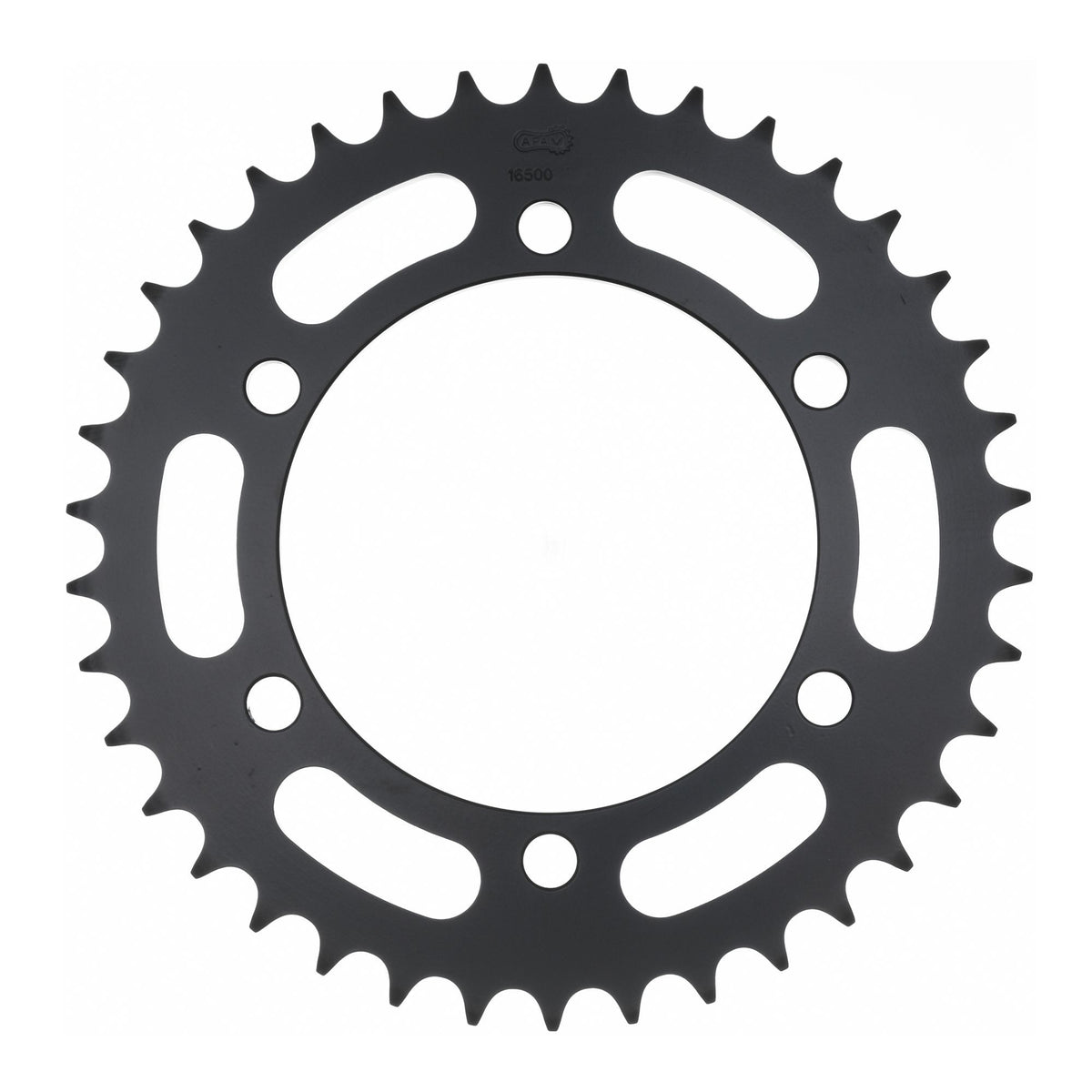

• Rear sprocket: AFAM rear sprocket STEEL #520 47 teeth - a16500.47
• Transmission ratio front sprocket-chain-rear sprocket: 14-108-47

AFAM 520 XHR2-G

Hyper-reinforced chain with low-friction characteristics. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical specifications:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Part number	KKF-30910

Suitable for

Kawasaki 126 - 250 cc ZZ-R 250 EX250H 1990
Kawasaki 126 - 250 cc ZZ-R 250 EX250H 1991
Kawasaki 126 - 250 cc ZZ-R 250 EX250H 1992
Kawasaki 126 - 250 cc ZZ-R 250 EX250H 1993
Kawasaki 126 - 250 cc ZZ-R 250 EX250H 1994
Kawasaki 126 - 250 cc ZZ-R 250 EX250H 1995
Kawasaki 126 - 250 cc ZZ-R 250 EX250H 1996
Kawasaki 126 - 250 cc ZZ-R 250 EX250H 1997
Kawasaki 126 - 250 cc ZZ-R 250 EX250H 1998
Kawasaki 126 - 250 cc ZZ-R 250 EX250H 1999
Kawasaki 126 - 250 cc ZZ-R 250 EX250H 2000
Kawasaki 126 - 250 cc ZZ-R 250 EX250H 2001
