AFAM chain kit for Kawasaki ZZ-R 600 90-92 530 XMR3 chain kit

AFAM chain kit for Kawasaki ZZ-R 600 90-92 530 XMR3 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - Mention of the manufacturer is for compatibility purposes only!

Components of the chain kit Kawasaki ZZ-R 600 ZX600D 1990-1992

• Front sprocket: AFAM front sprocket #530 15 teeth - a28400.15
• Chain: AFAM chain 530 XMR3 Xs-ring 110 links incl. rivet link - a530xmr3.110

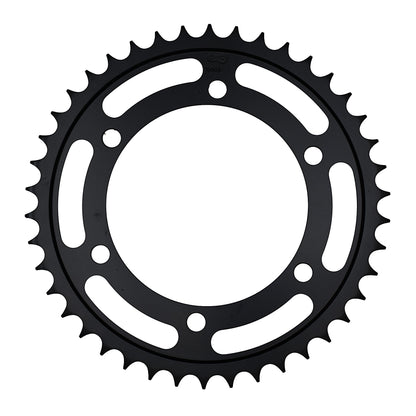

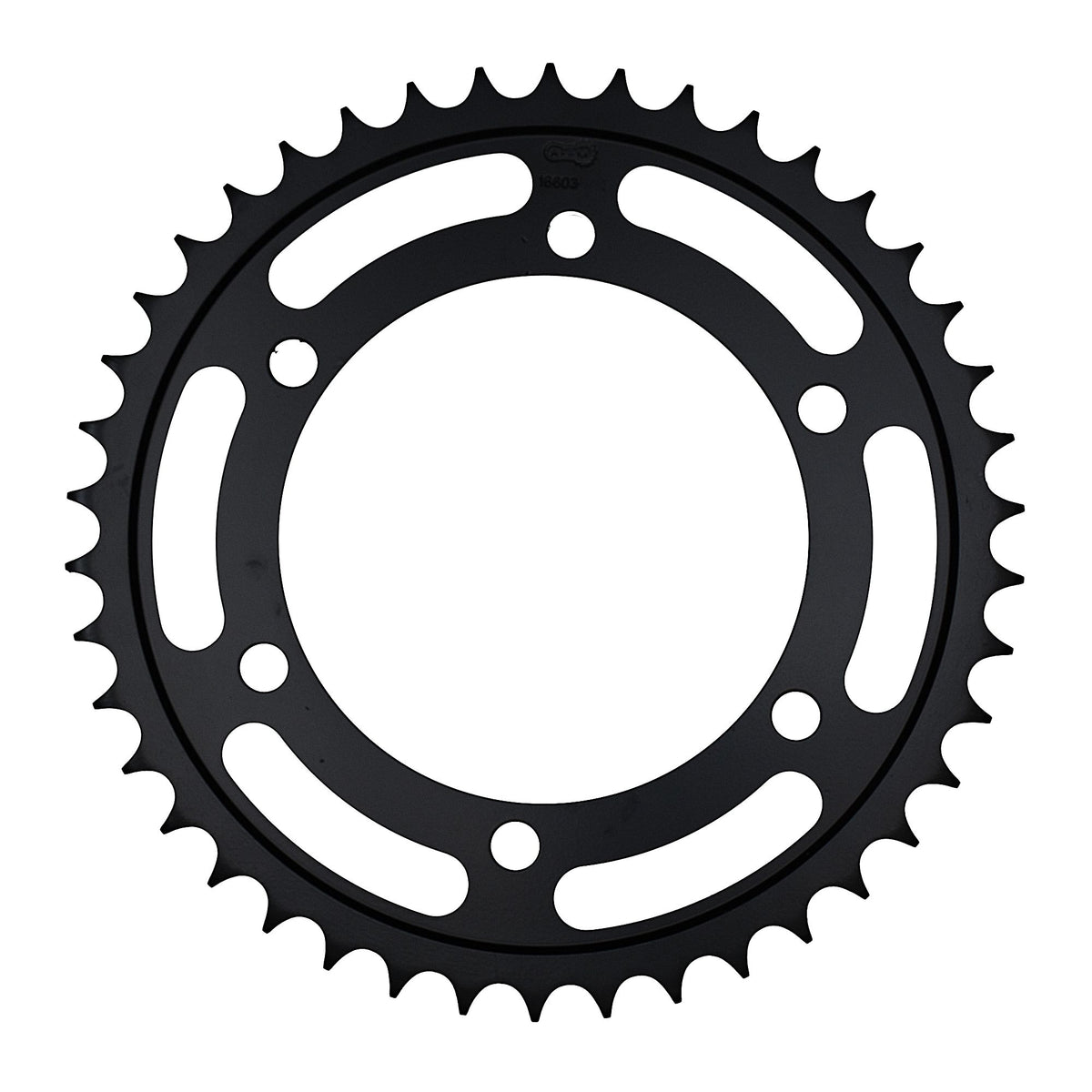

• Rear sprocket: AFAM rear sprocket STEEL #530 45 teeth - a16603.45
• Gear ratio front sprocket-chain-rear sprocket: 15-110-45

AFAM 530 XMR3

Reinforced chain with low-friction properties
Xs-ring chain
Color: Steel
Application by displacement: up to 800 cc / road

Technical specifications:
Pitch: 530
Pin length: 25.50 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 2.08 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-32106

Suitable for

Kawasaki 501 - 750 cc ZZ-R 600 ZX600D 1990
Kawasaki 501 - 750 cc ZZ-R 600 ZX600D 1991
Kawasaki 501 - 750 cc ZZ-R 600 ZX600D 1992
