AFAM chain kit for Kawasaki ZZ-R 600 90-92 530 XSR2G chain kit

AFAM chain kit for Kawasaki ZZ-R 600 90-92 530 XSR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility identification only!

Components of the chain kit for Kawasaki ZZ-R 600 ZX600D 1990-1992

• Sprocket: AFAM sprocket #530 15 teeth - a28400.15
• Chain: AFAM chain 530 XSR2-G Xs-Ring 110 w. rivet link - a530xsr2.g.110

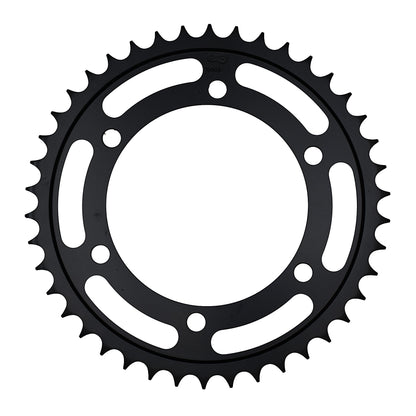

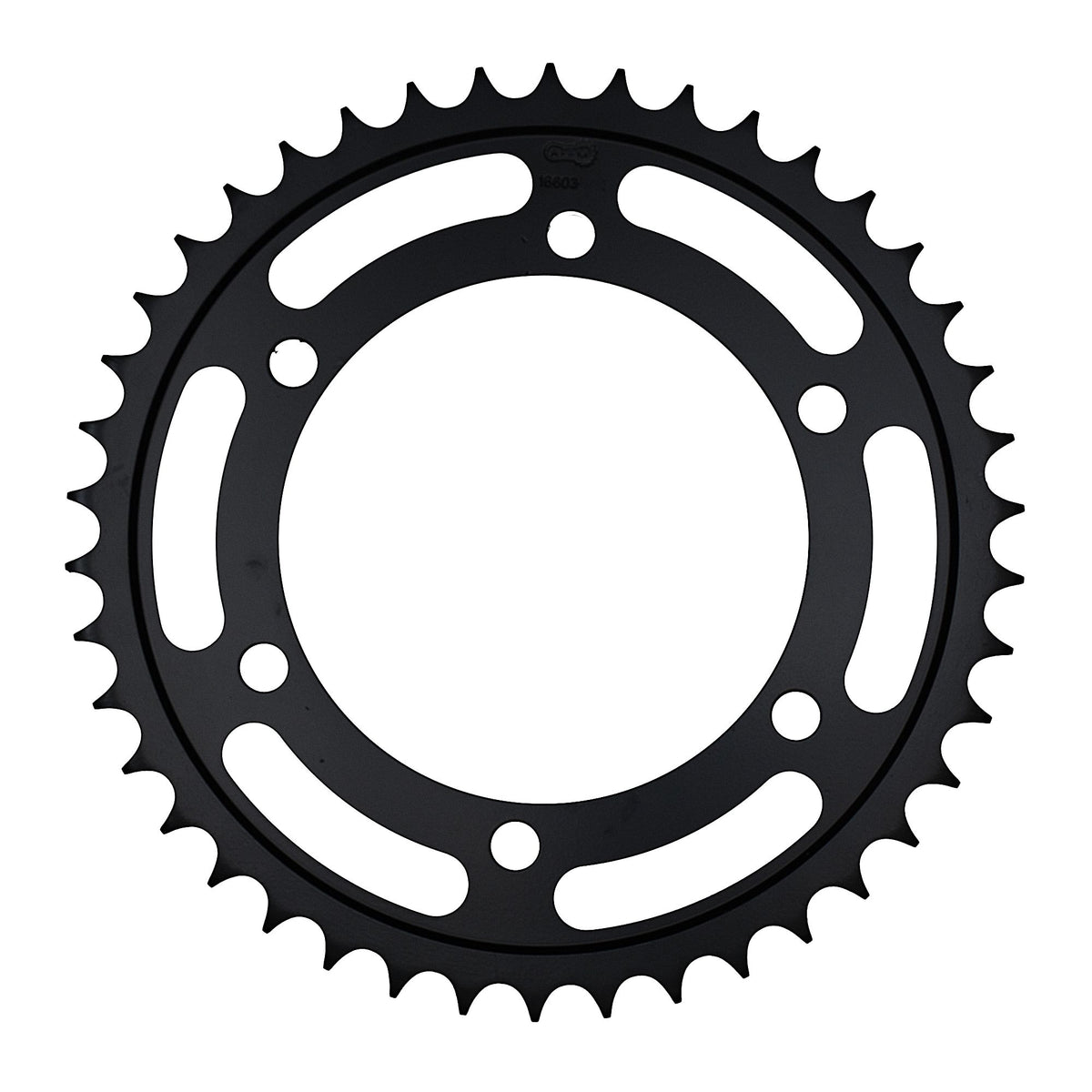

• Rear sprocket: AFAM STEEL sprocket #530 45 teeth - a16603.45
• Gear ratio sprocket-chain-rear sprocket: 15-110-45

AFAM 530 XSR2-G

Super reinforced chain with low-friction properties
Xs-Ring chain
Color: Gold
Application by displacement: up to 1100 cc / street and sport

Technical data:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-36163

Fits

Kawasaki 501 - 750 cc ZZ-R 600 ZX600D 1990
Kawasaki 501 - 750 cc ZZ-R 600 ZX600D 1991
Kawasaki 501 - 750 cc ZZ-R 600 ZX600D 1992
