AFAM chain kit for KSR Moto TR 125 SM 14-16 428 R1G chain kit

AFAM chain kit for KSR Moto TR 125 SM 14-16 428 R1G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain master link.

Unless otherwise stated: Not an original part - manufacturer names are only provided to indicate compatibility!

Components of the chain kit KSR Moto TR 125 SM 2014-2016

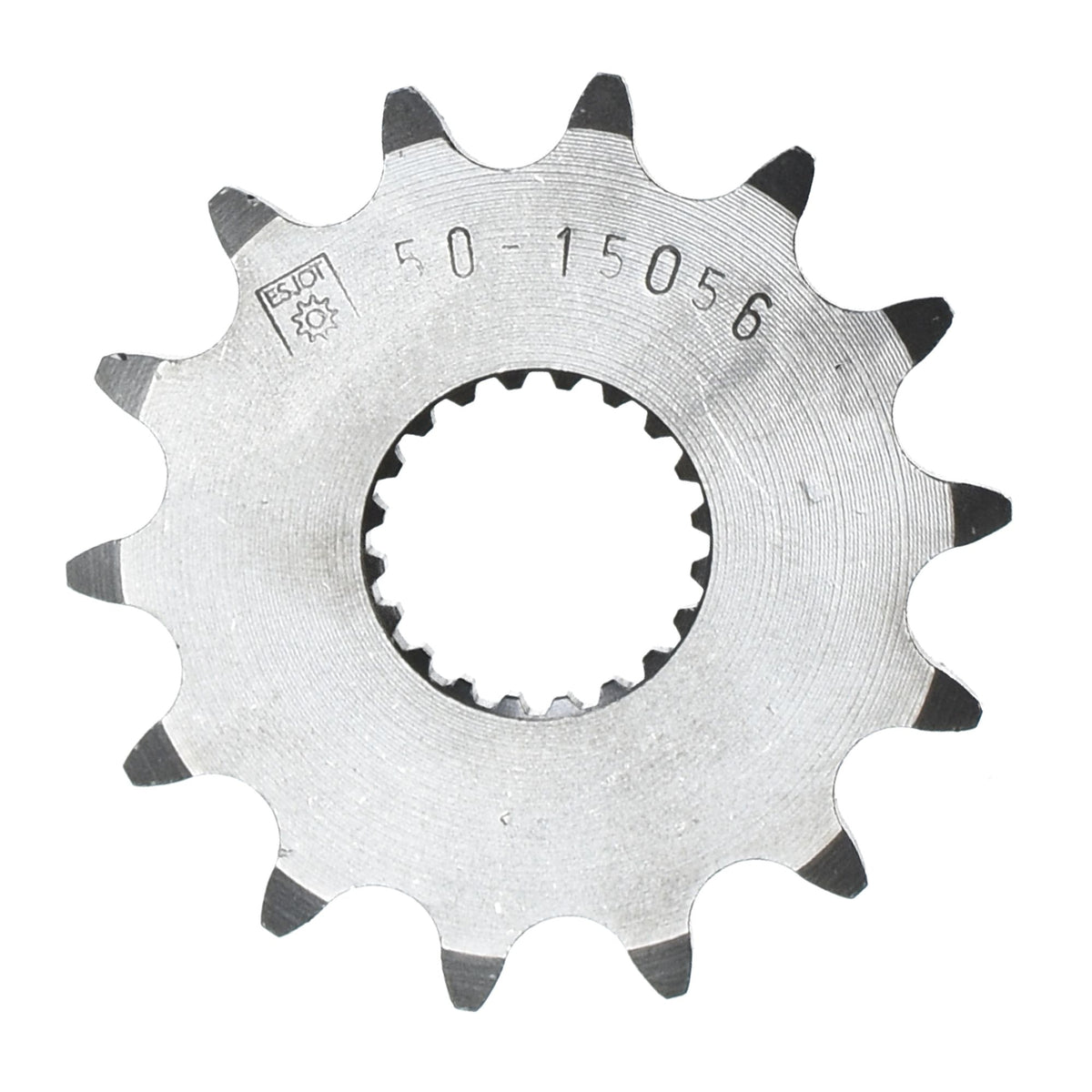

• Sprocket: Esjot sprocket #428 14 teeth - e15056.14
• Chain: AFAM chain 428 R1-G reinforced 136 with clip master link - a428r1.g.136
• Rear sprocket: Esjot STEEL rear sprocket #428 55 teeth - e15058.55
• Gear ratio sprocket-chain-rear sprocket: 14-136-55

AFAM 428 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 200 ccm

Technical data:
Pitch: 428
Pin length: 18.4 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.01 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-17687

Suitable for

KSR Moto 101 - 125 ccm TR 125 SM 2014
KSR Moto 101 - 125 ccm TR 125 SM 2015
KSR Moto 101 - 125 ccm TR 125 SM 2016
