AFAM chain kit for KSR Moto TR 50 X 19-20 420 M chain kit

AFAM chain kit for KSR Moto TR 50 X 19-20 420 M chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain master link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility representation only!

Components of the chain kit KSR Moto TR 50 X 2019-2020

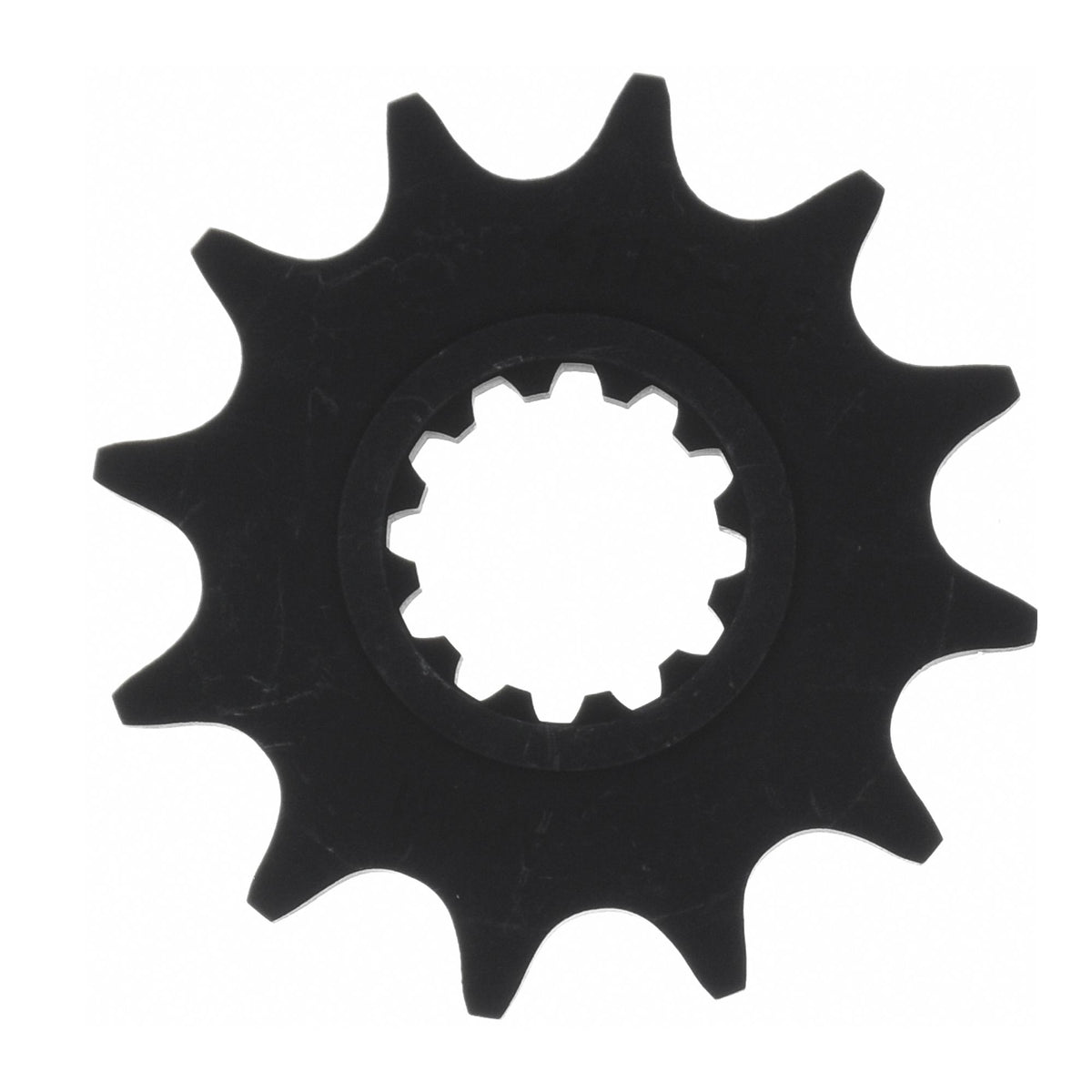

• Sprocket: AFAM sprocket #420 11 teeth - a94119.11

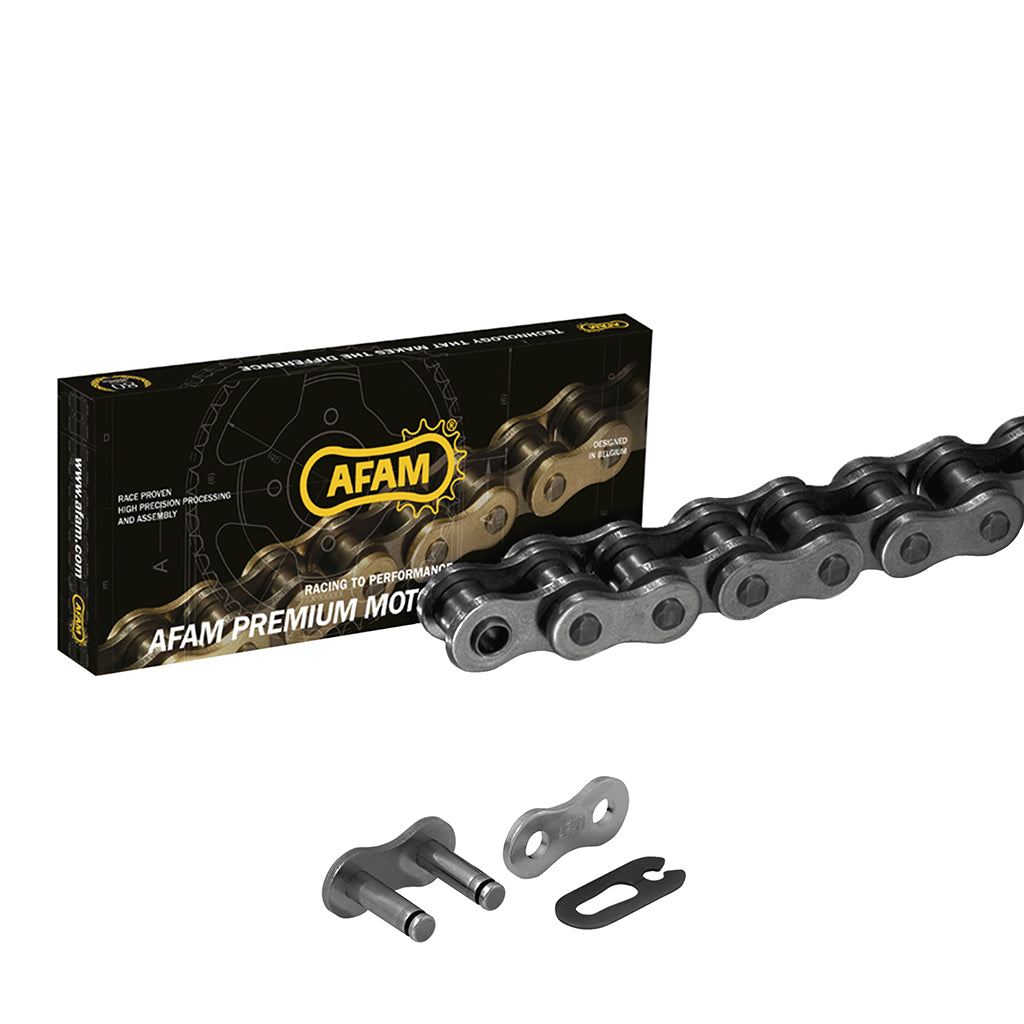

• Chain: AFAM chain 420 M 128 with clip link - a420m.128

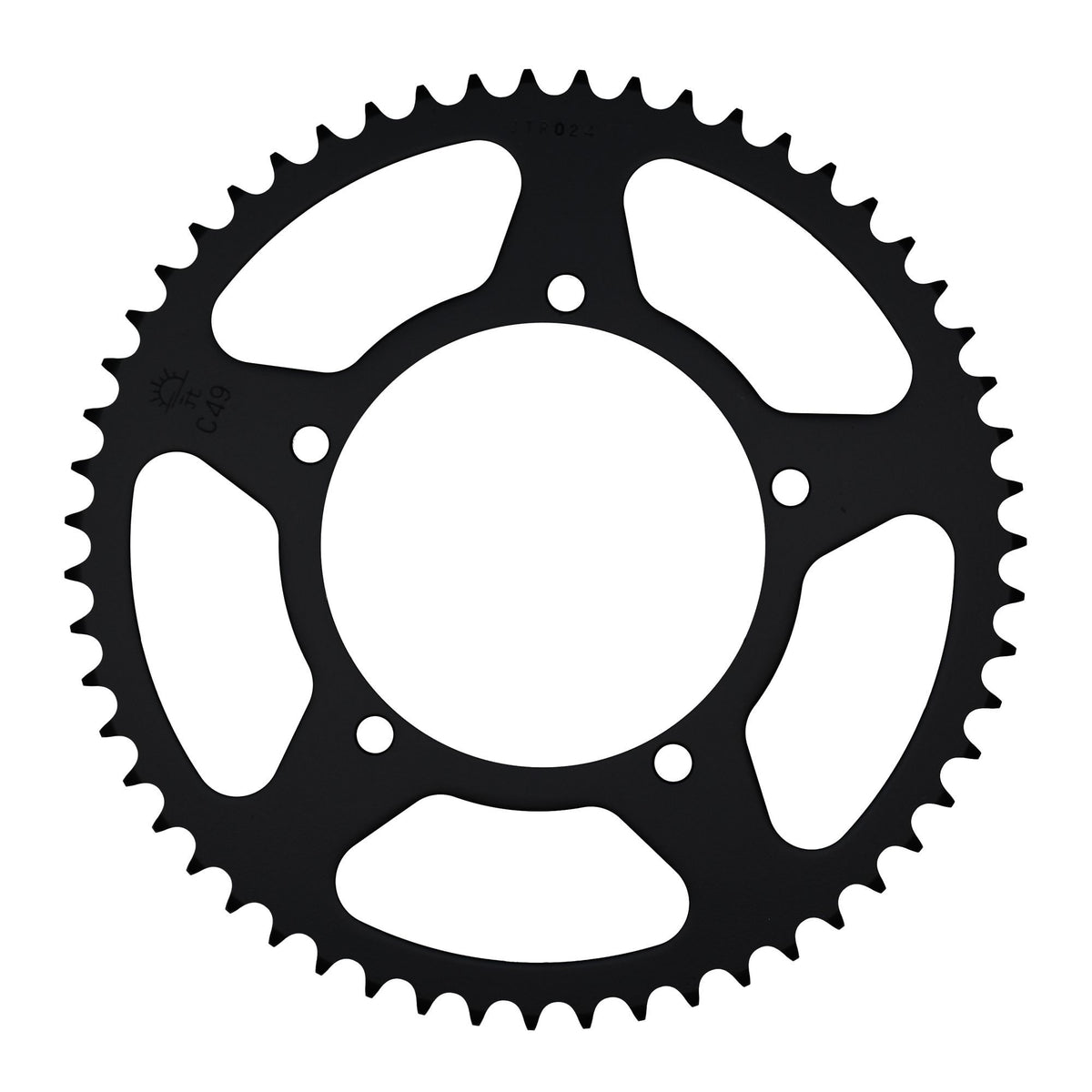

• Rear sprocket: Esjot rear sprocket 50-13016-55 STEEL #420 55 teeth - a35103.55
• Gear ratio sprocket-chain-rear sprocket: 11-128-55

AFAM 420 M

Affordable and simple standard chain
Without O-rings
Color: Steel

Technical data:
Pitch: 420
Pin length: 14.40 mm
Roller Ø: 7.75 mm
Plate thickness: inner: 1.5 mm
Plate thickness: outer: 1.5 mm
Tensile strength: 20.00 kN
Weight per 100 links: 0.72 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-33458

Fits

KSR Moto 0 - 100 ccm TR 50 X 2019
KSR Moto 0 - 100 ccm TR 50 X 2020
