AFAM chain kit for KSR Moto Worx 125 14-17 428 R1G chain kit

AFAM chain kit for KSR Moto Worx 125 14-17 428 R1G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless stated otherwise: Not an original part - Manufacturer names are only for compatibility purposes!

Components of the chain kit KSR Moto Worx 125 2014-2017

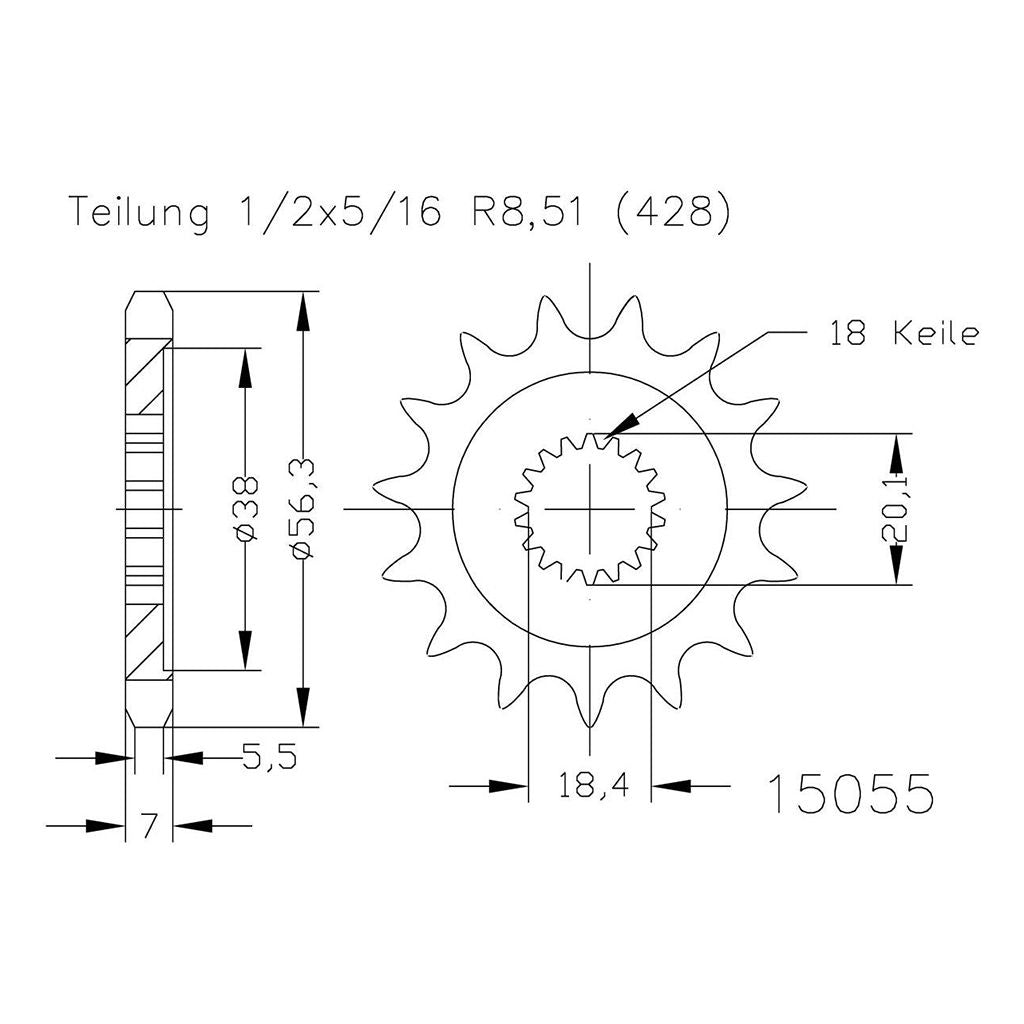

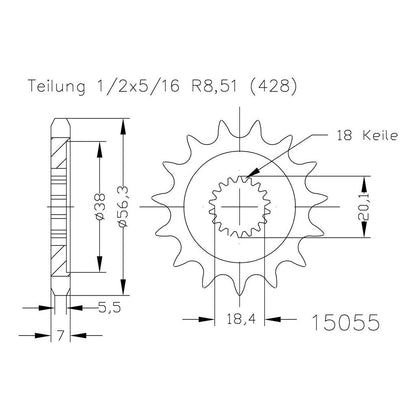

• Front sprocket: Esjot sprocket #428 13 teeth - e5015055.13
• Chain: AFAM chain 428 R1-G reinforced 136 with clip link - a428r1.g.136

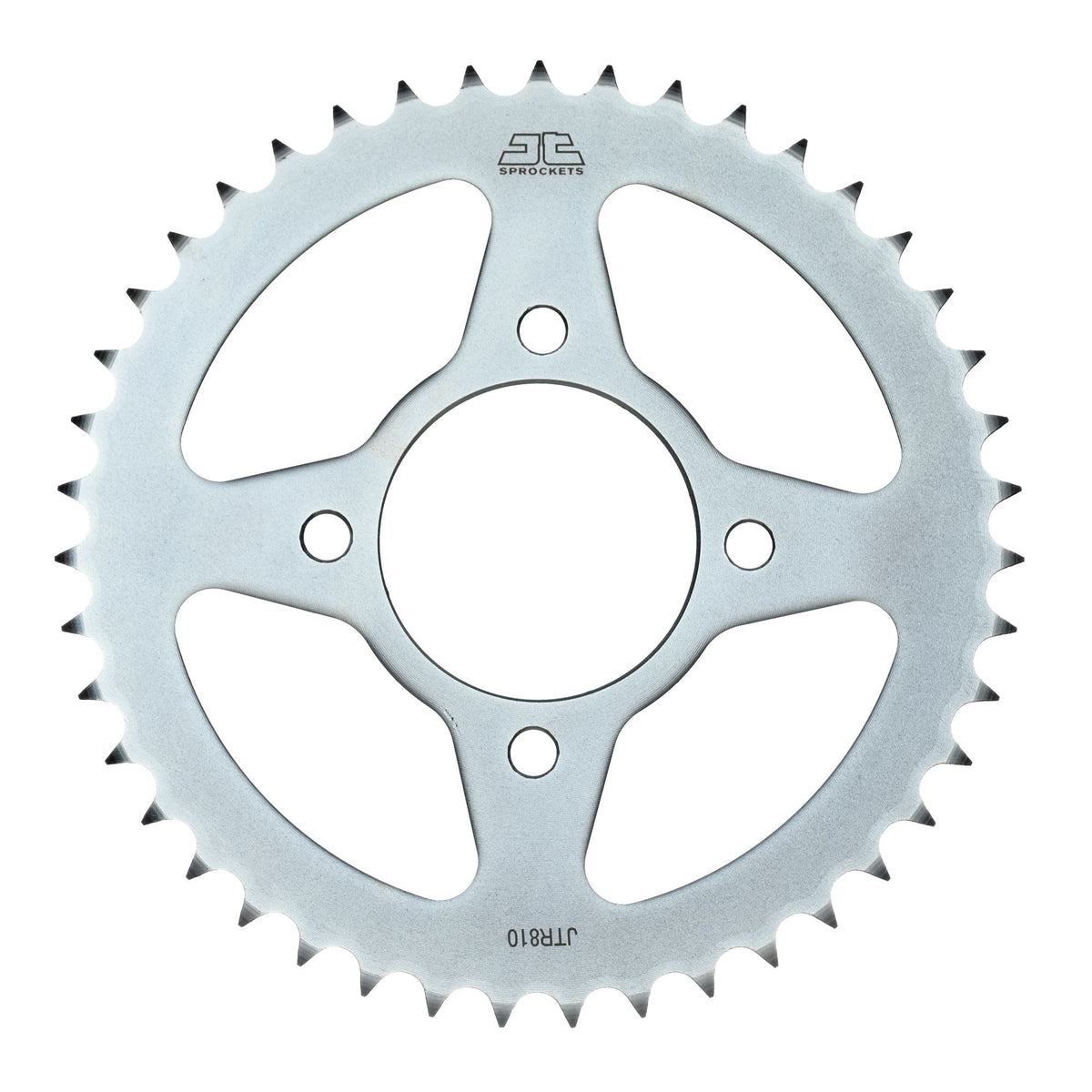

• Rear sprocket: AFAM rear sprocket STEEL #428 43 teeth - a14201.43
• Gear ratio sprocket-chain-rear sprocket: 13-136-43

AFAM 428 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 200 ccm

Technical data:
Pitch: 428
Pin length: 18.4 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.01 kg

Unless stated otherwise: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-20497

Suitable for

KSR Moto 101 - 125 ccm Worx 125 2014
KSR Moto 101 - 125 ccm Worx 125 2015
KSR Moto 101 - 125 ccm Worx 125 2016
KSR Moto 101 - 125 ccm Worx 125 2017
