AFAM chain kit for KTM 1290 Super Duke R ABS 13-16 525 XHR3G chain kit

AFAM chain kit for KTM 1290 Super Duke R ABS 13-16 525 XHR3G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit KTM 1290 Super Duke R ABS KTM Superduke 2013-2016

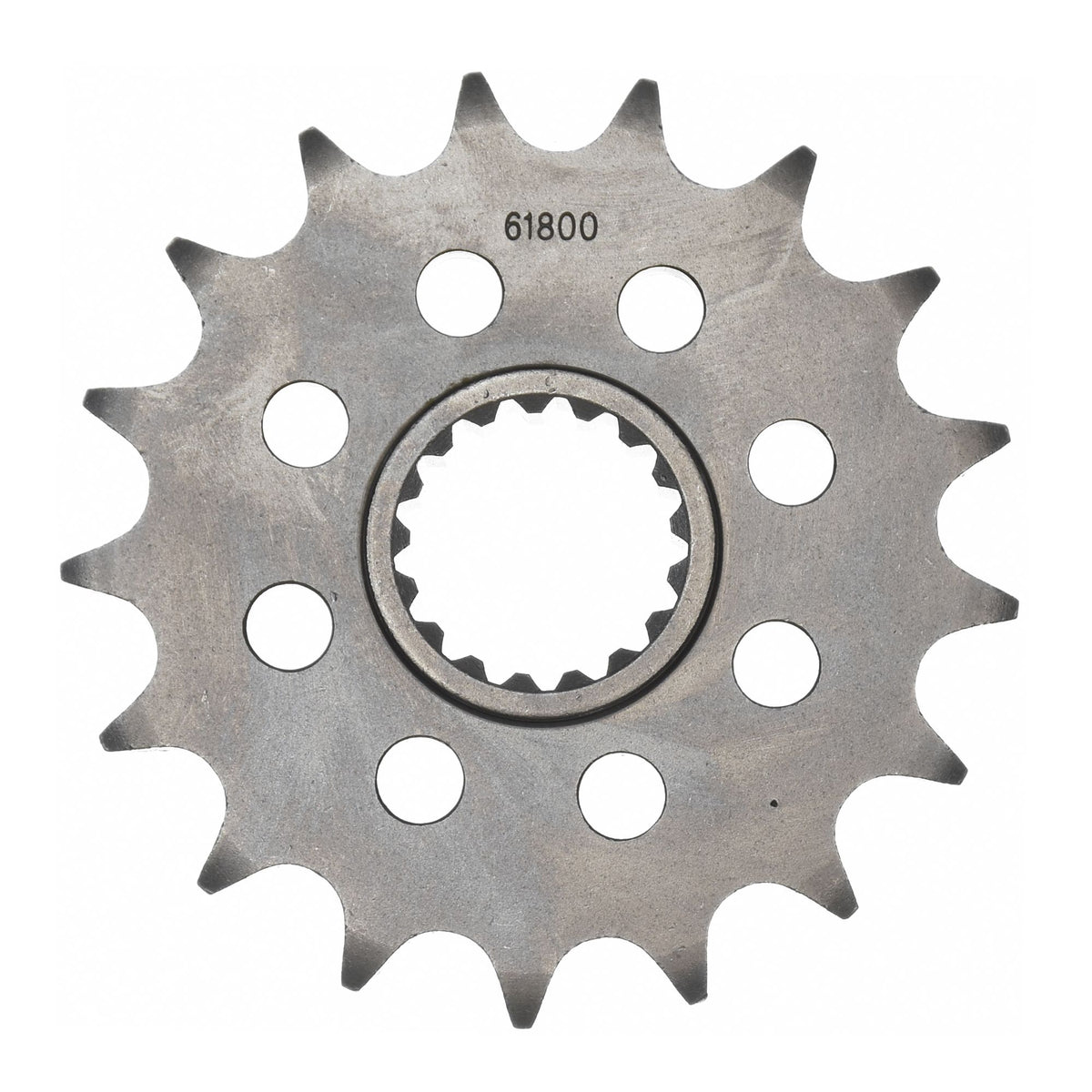

• Front sprocket: AFAM front sprocket #525 17 teeth - a61800.17
• Chain: AFAM chain 525 XHR3-G Xs-ring 112 links w. rivet link - a525xhr3.g.112

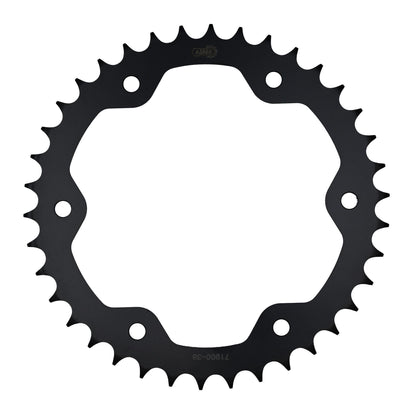

• Rear sprocket: AFAM rear sprocket 29050-38 STEEL #525 38 teeth - a29050.38
• Gear ratio front sprocket-chain-rear sprocket: 17-112-38

AFAM 525 XHR3-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical specifications:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer that was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-40749

Suitable for

KTM over 1001 cc 1290 Super Duke R ABS KTM Superduke 2013
KTM over 1001 cc 1290 Super Duke R ABS KTM Superduke 2014
KTM over 1001 cc 1290 Super Duke R ABS KTM Superduke 2015
KTM over 1001 cc 1290 Super Duke R ABS KTM Superduke 2016
