AFAM chain kit for KTM 250 Freeride R 14-17 520 XHR2G chain kit

AFAM chain kit for KTM 250 Freeride R 14-17 520 XHR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit KTM 250 Freeride R 2T 2014-2017

• Front sprocket: AFAM front sprocket #520 16 teeth - a73301.16
• Chain: AFAM chain 520 XHR2-G Xs-ring 118 with rivet link - a520xhr2.g.118

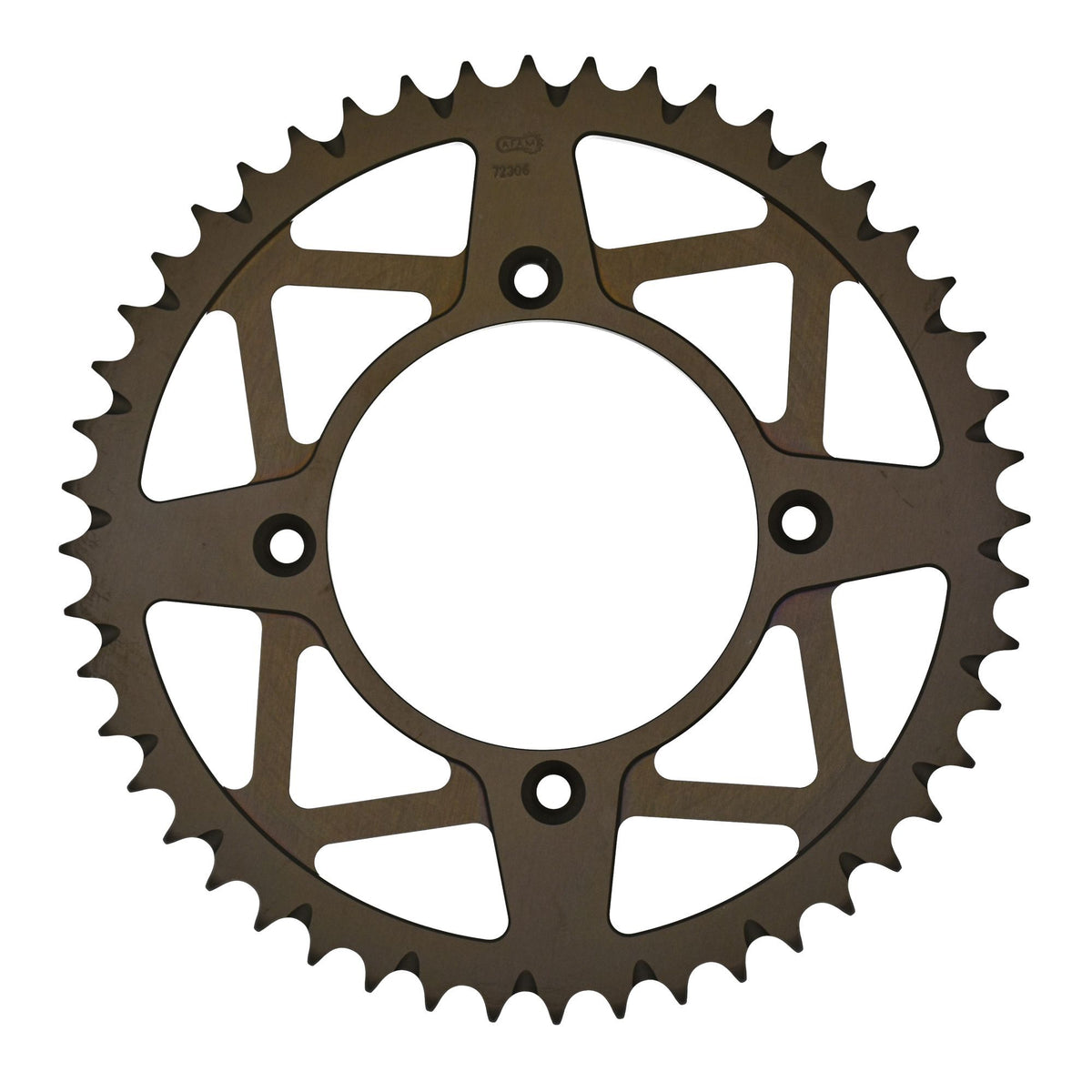

• Rear sprocket: AFAM rear sprocket ALU #520 S/C 46 teeth - a72306.46
• Gear ratio sprocket-chain-rear sprocket: 16-118-46

AFAM 520 XHR2-G

Hyper-reinforced chain with smooth-running properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-33425

Fits

KTM 126 - 250 cc 250 Freeride R 2T 2014
KTM 126 - 250 cc 250 Freeride R 2T 2015
KTM 126 - 250 cc 250 Freeride R 2T 2016
KTM 126 - 250 cc 250 Freeride R 2T 2017
