AFAM chain kit for KTM 640 Supermoto E LC4 1999 520 MX5G chain kit

AFAM chain kit for KTM 640 Supermoto E LC4 1999 520 MX5G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - Manufacturer names are used for compatibility purposes only!

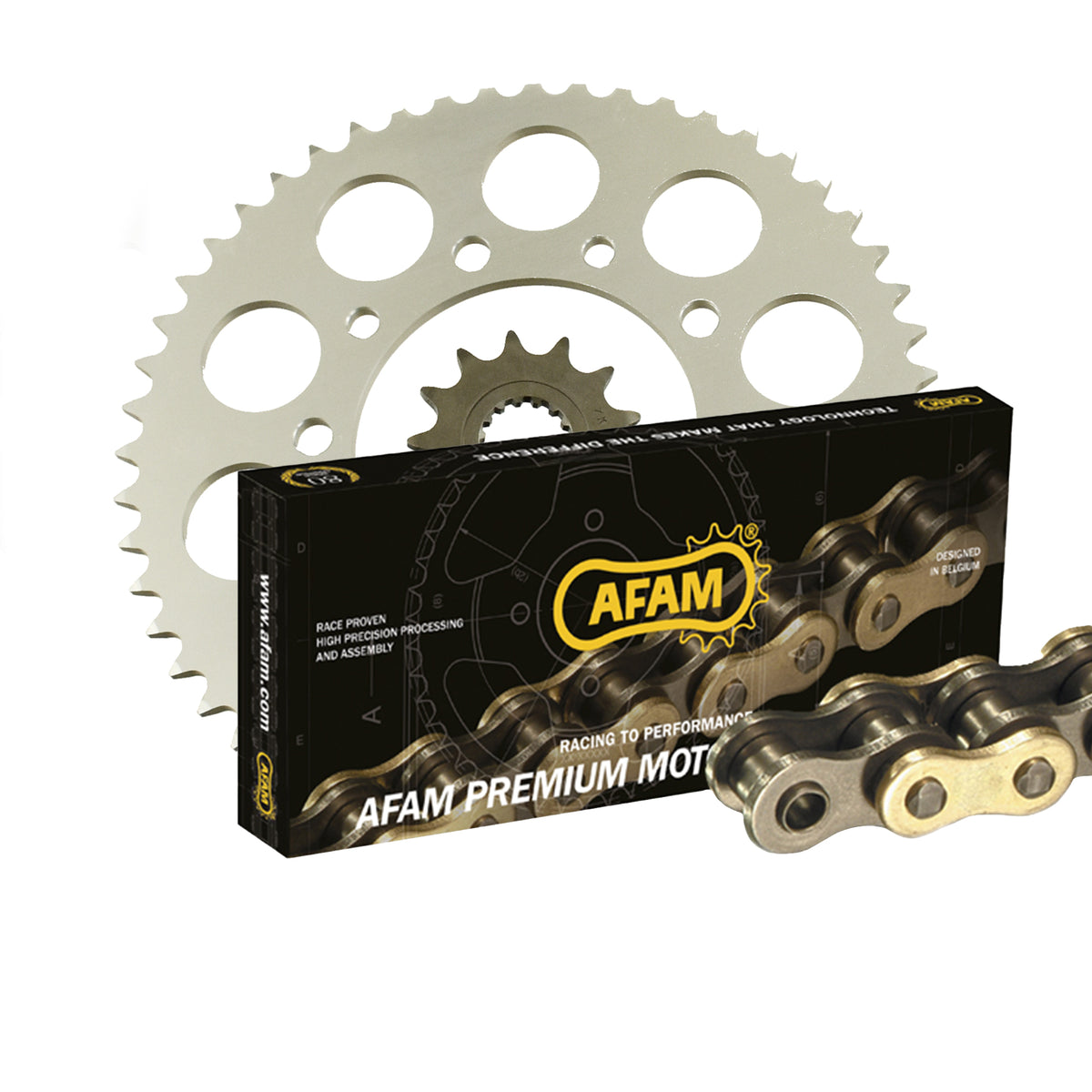

Components of the chain kit KTM 640 Supermoto E LC4 1999-1999

• Sprocket: AFAM sprocket #520 17 teeth - a73303.17
• Chain: AFAM chain 520 MX5-G MX w. clip link - a520mx5.g.108
• Chain wheel: AFAM chain wheel STEEL #520 40 teeth - a71304.40
• Gear ratio sprocket-chain-chain wheel: 17-108-40

AFAM 520 MX5-G

Pure Moto-Cross chain
Without sealing rings
Color: Gold
Application by displacement: up to 500 cc / Moto-Cross only

Technical data:
Pitch: 520
Pin length: 16.8 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 37.40 kN
Weight per 100 links: 1.51 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-44019

Suitable for

KTM 501 - 750 cc 640 Supermoto E LC4 1999
