AFAM chain kit for KTM 690 Enduro R ABS 19-20 520 XHR2G chain kit

AFAM Chain Kit for KTM 690 Enduro R ABS 19-20 520 XHR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit KTM 690 Enduro R ABS KTM 690 LC4 2019-2020

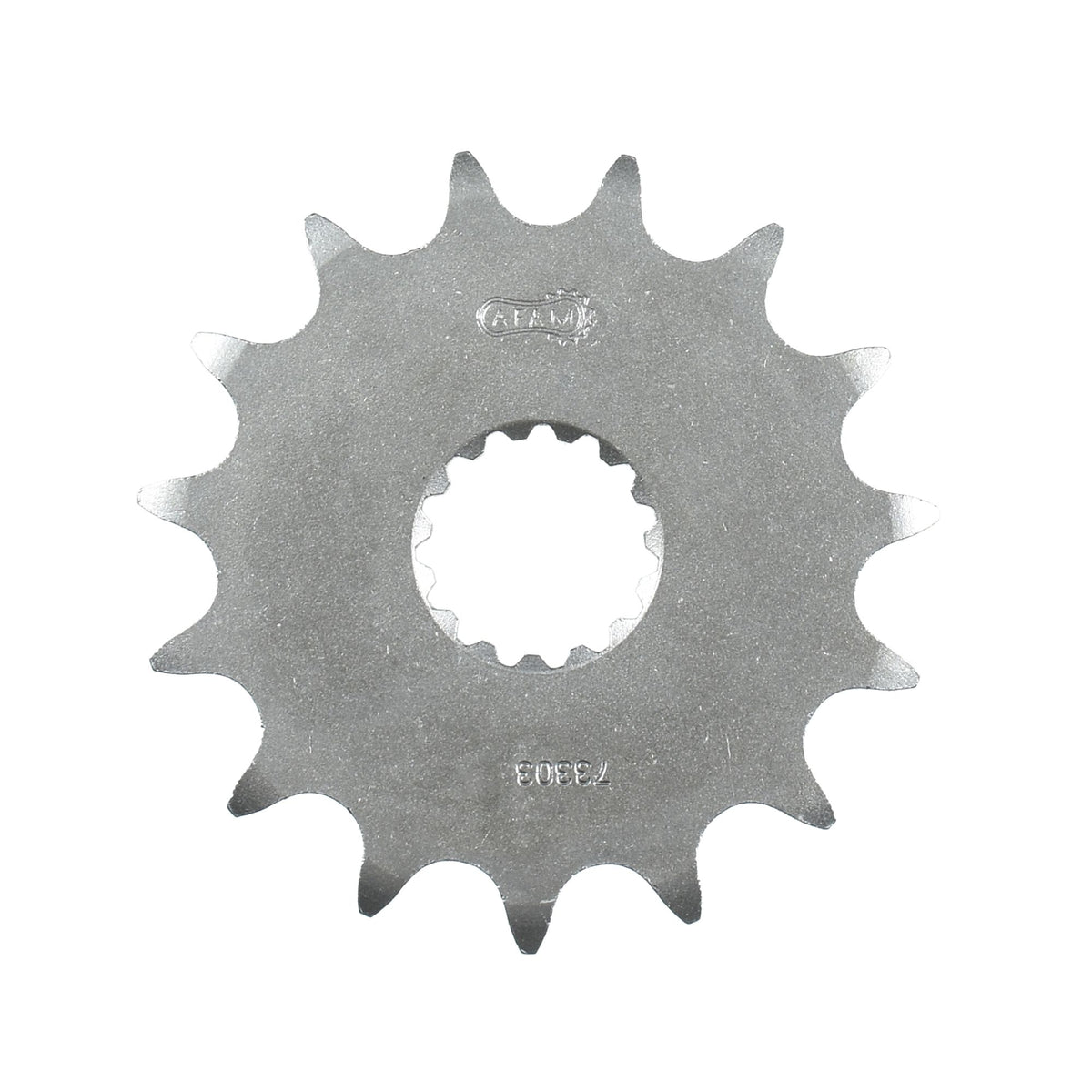

• Front sprocket: AFAM sprocket #520 15 teeth - a73303.15
• Chain: AFAM chain 520 XHR2-G Xs-ring 116 with rivet link - a520xhr2.g.116
• Rear sprocket: Esjot rear sprocket STEEL #520 46 teeth - a71304.46
• Transmission ratio sprocket-chain-rear sprocket: 15-116-46

AFAM 520 XHR2-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The offered goods are accessory/spare parts from a third-party manufacturer, which were not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-40381

Suitable for

KTM 501 - 750 cc 690 Enduro R ABS KTM 690 LC4 2019
KTM 501 - 750 cc 690 Enduro R ABS KTM 690 LC4 2020
