AFAM chain kit for KTM 690 Enduro R ABS 19-20 520 XHR2G chain kit

AFAM chain kit for KTM 690 Enduro R ABS 19-20 520 XHR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit KTM 690 Enduro R ABS KTM 690 LC4 2019-2020

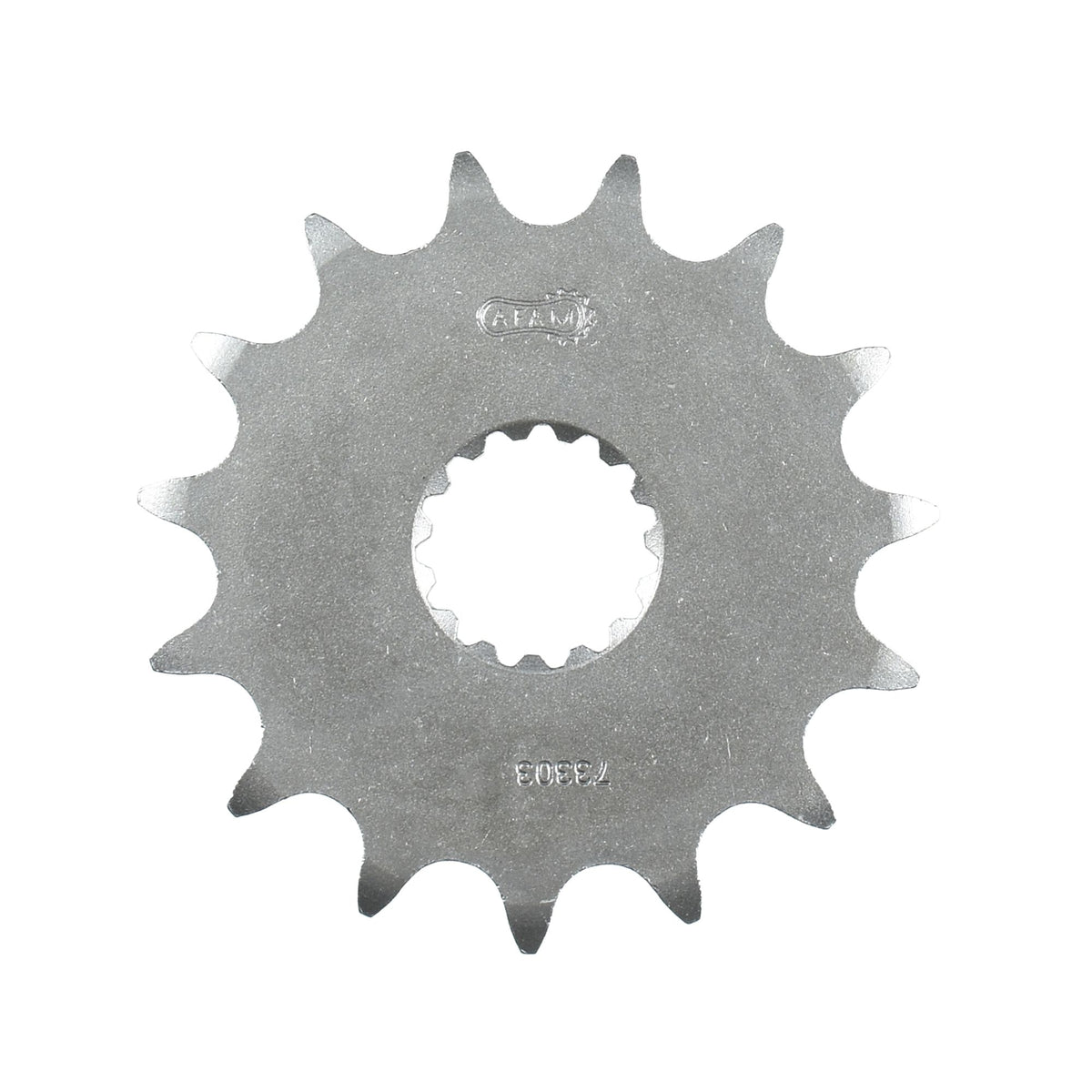

• Front sprocket: AFAM front sprocket #520 15 teeth - a73303.15
• Chain: AFAM chain 520 XHR2-G Xs-Ring 116 with rivet link - a520xhr2.g.116
• Rear sprocket: AFAM rear sprocket ALU #520 46 teeth - a72304n.46
• Gear ratio sprocket-chain-rear sprocket: 15-116-46

AFAM 520 XHR2-G

Hyper-reinforced chain with smooth-running properties. The "all-rounder"!
Xs-Ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-50043

Suitable for

KTM 501 - 750 cc 690 Enduro R ABS KTM 690 LC4 2019
KTM 501 - 750 cc 690 Enduro R ABS KTM 690 LC4 2020
