AFAM chain kit for KTM 950 Supermoto 06-08 525 XSR2G chain kit

AFAM Chain Kit for KTM 950 Supermoto 06-08 525 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit KTM 950 Supermoto KTM LC8 SM 2006-2008

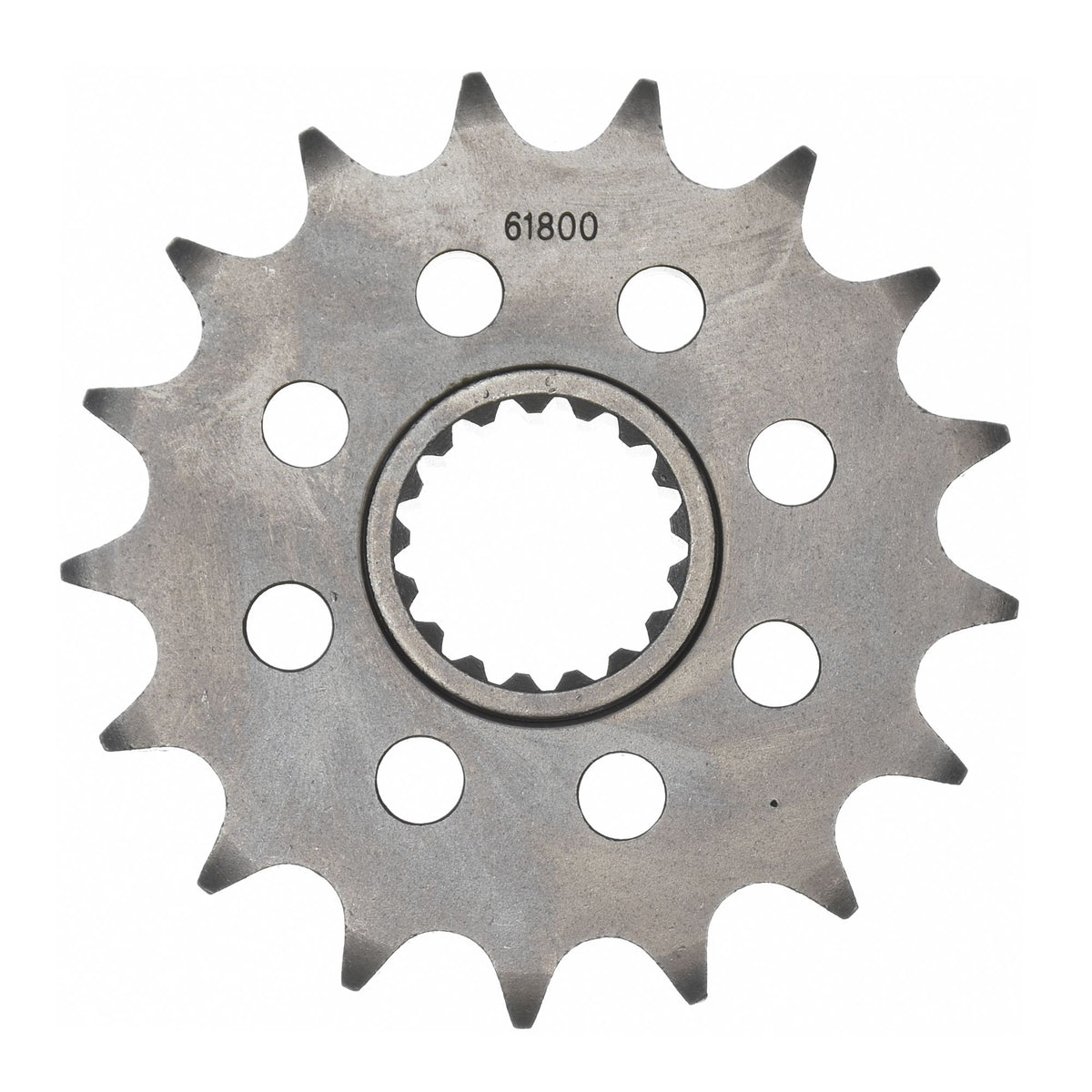

• Front sprocket: AFAM sprocket #525 17 teeth - a61800.17
• Chain: AFAM chain 525 XSR2-G Xs-ring 112 with rivet link - a525xsr2.g.112

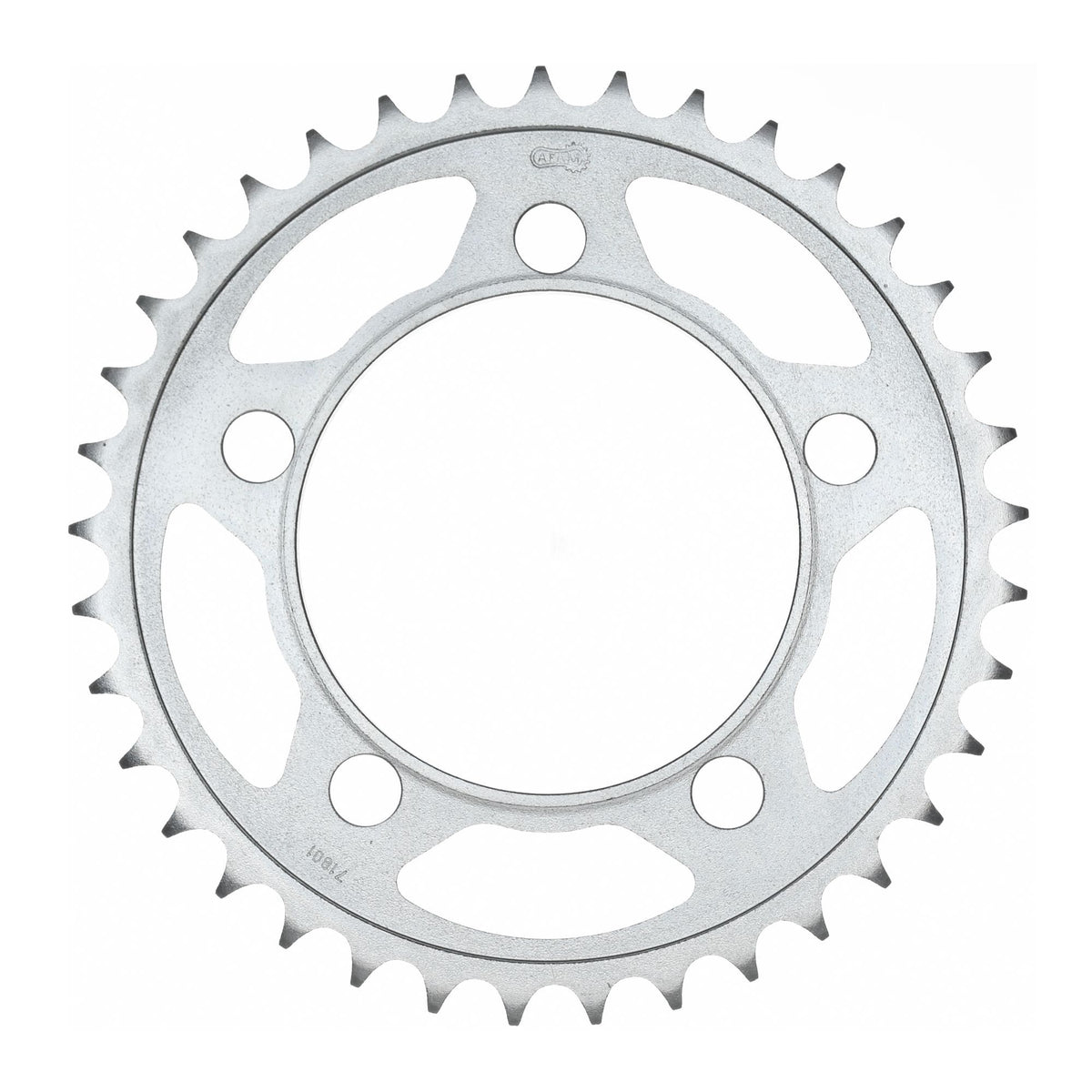

• Rear sprocket: AFAM steel rear sprocket #525 41 teeth - a71801.41
• Gear ratio sprocket-chain-rear sprocket: 17-112-41

AFAM 525 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical specifications:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered goods are accessory/spare parts from a third-party manufacturer, which were not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Part number	KKF-44411

Fits

KTM 751 - 1000 cc 950 Supermoto KTM LC8 SM 2006
KTM 751 - 1000 cc 950 Supermoto KTM LC8 SM 2007
KTM 751 - 1000 cc 950 Supermoto KTM LC8 SM 2008
