AFAM chain kit for KTM 950 Supermoto R 07-08 525 XHR3G chain kit

AFAM Chain Kit for KTM 950 Supermoto R 07-08 525 XHR3G Chain Kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility identification purposes only!

Components of the chain kit KTM 950 Supermoto R KTM LC8 SM 2007-2008

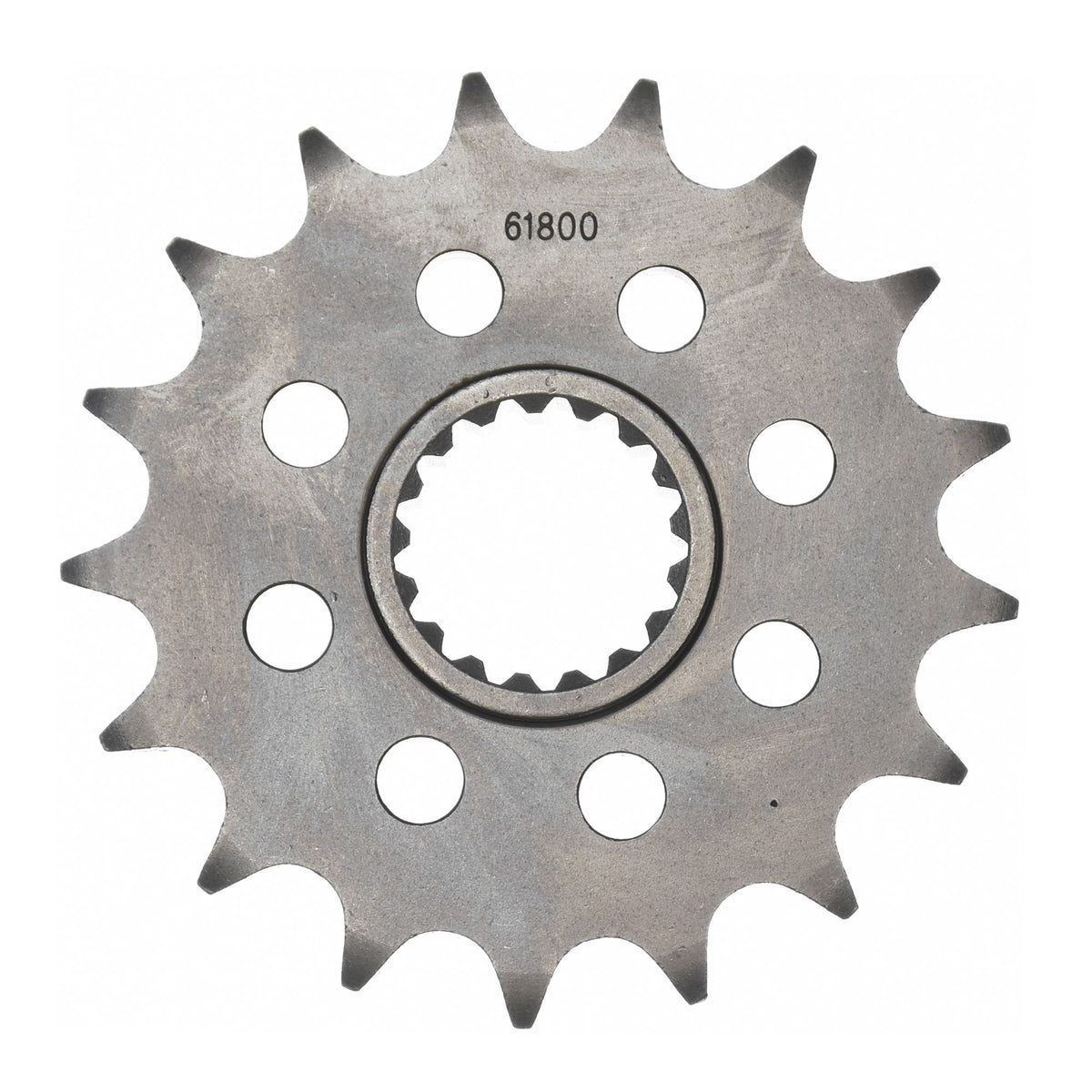

• Sprocket: AFAM sprocket #525 17 teeth - a61800.17
• Chain: AFAM chain 525 XHR3-G Xs-Ring 112 with rivet link - a525xhr3.g.112

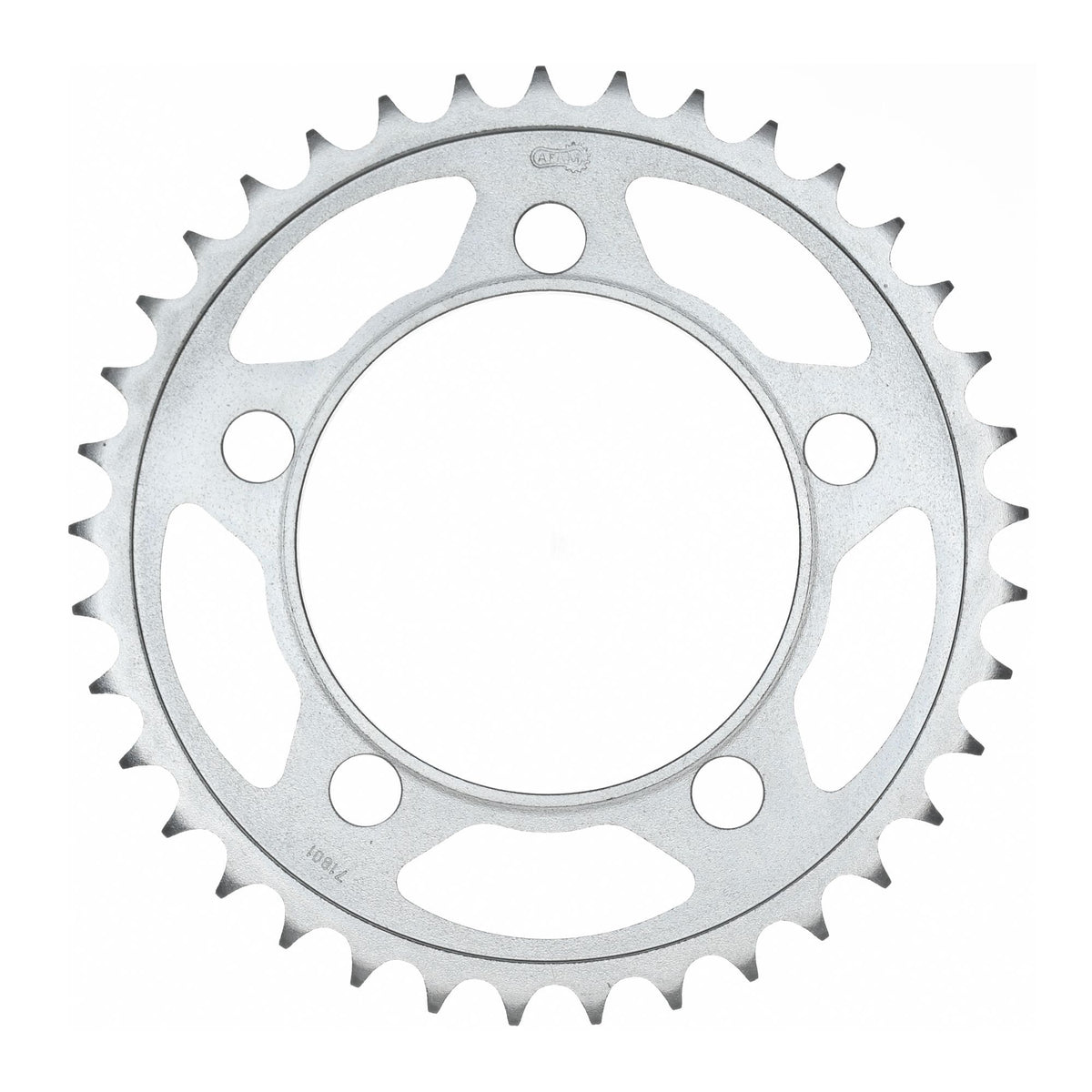

• Rear sprocket: AFAM STEEL rear sprocket #525 41 teeth - a71801.41
• Gear ratio sprocket-chain-rear sprocket: 17-112-41

AFAM 525 XHR3-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-Ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical specifications:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-44413

Suitable for

KTM 751 - 1000 ccm 950 Supermoto R KTM LC8 SM 2007
KTM 751 - 1000 ccm 950 Supermoto R KTM LC8 SM 2008
