AFAM chain kit for KTM 950 Supermoto R 07-08 525 XHR3G chain kit

AFAM Chain Kit for KTM 950 Supermoto R 07-08 525 XHR3G Chain Kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the KTM 950 Supermoto R KTM LC8 SM 2007-2008 chain kit

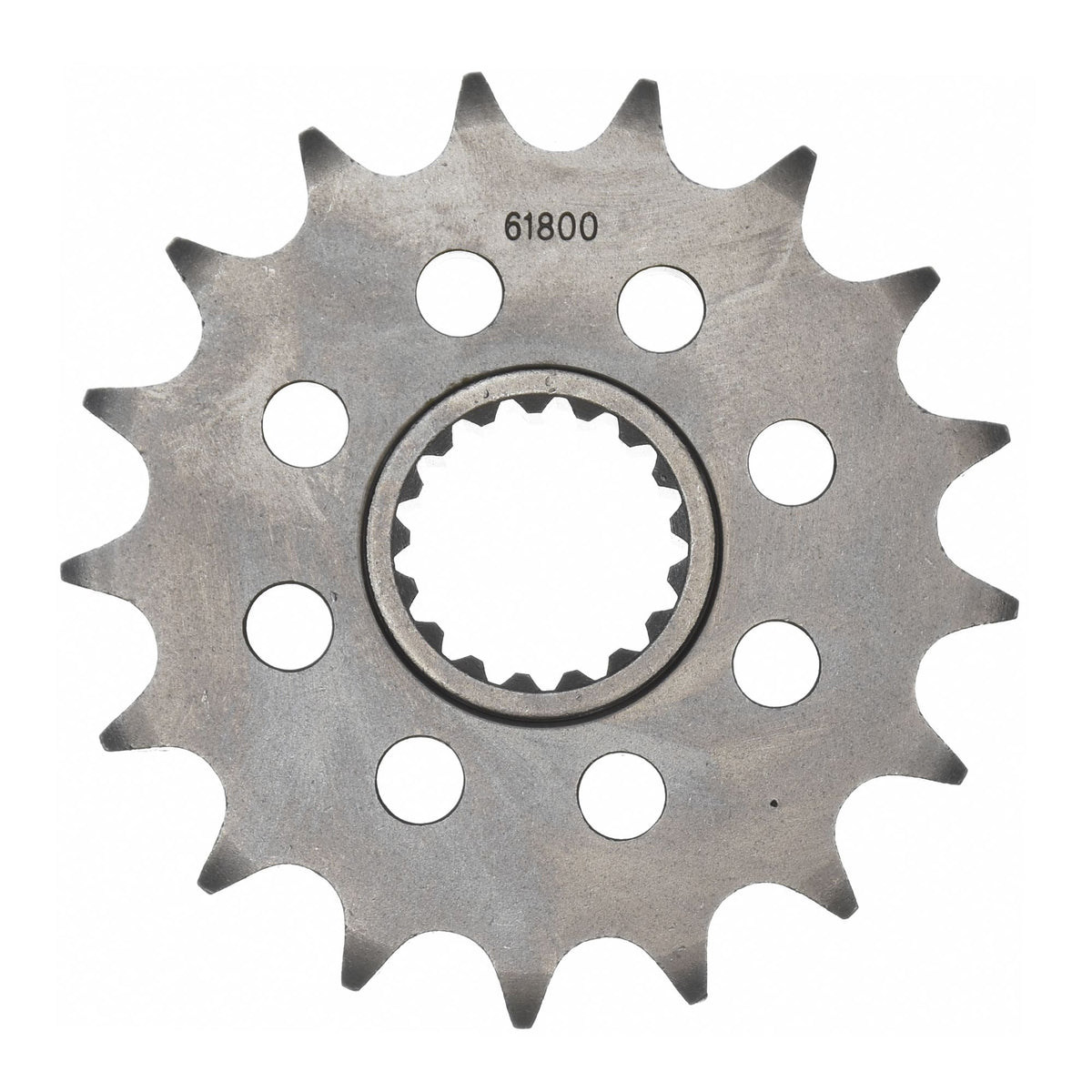

• Front sprocket: AFAM sprocket #525 17 teeth - a61800.17
• Chain: AFAM chain 525 XHR3-G Xs-ring 112 with rivet link - a525xhr3.g.112

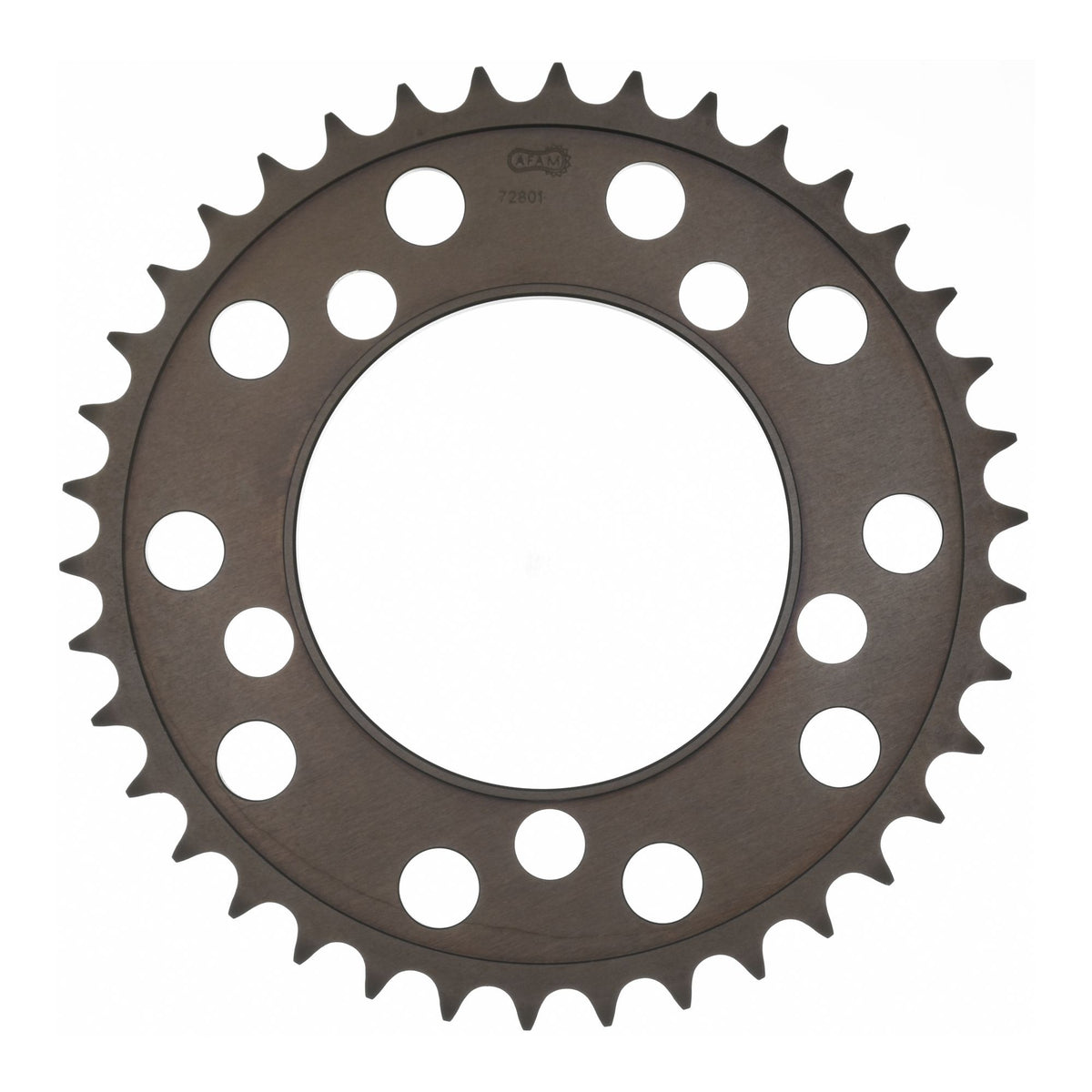

• Rear sprocket: AFAM sprocket ALU #525 41 teeth - a72801.41
• Gear ratio sprocket-chain-rear sprocket: 17-112-41

AFAM 525 XHR3-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical data:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-47097

Suitable for

KTM 751 - 1000 cc 950 Supermoto R KTM LC8 SM 2007
KTM 751 - 1000 cc 950 Supermoto R KTM LC8 SM 2008
