AFAM chain kit for KTM 990 Super Duke 07-11 525 XHR3G chain kit

AFAM Chain Kit for KTM 990 Super Duke 07-11 525 XHR3G Chain Kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit KTM 990 Super Duke KTM LC8 EF 2007-2011

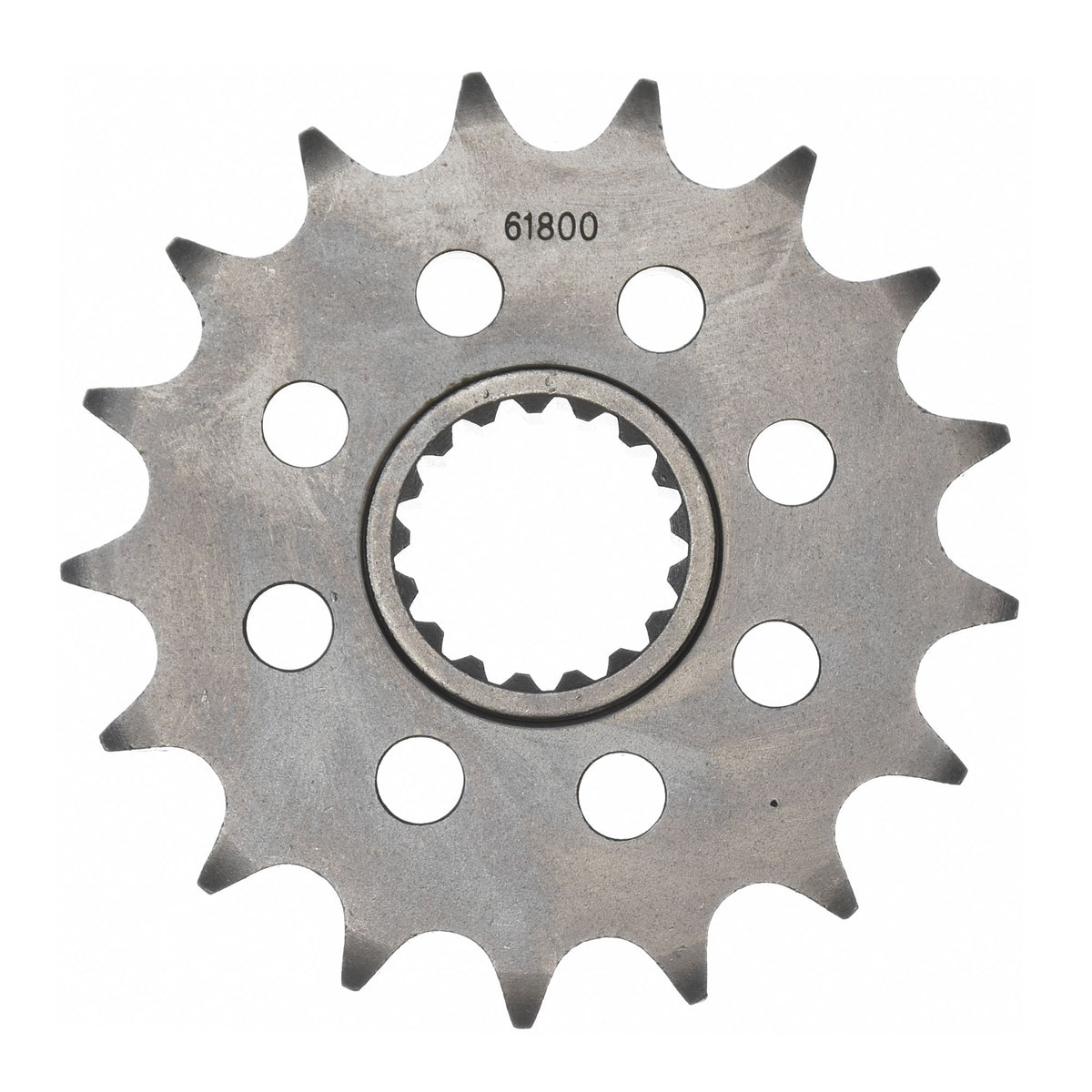

• Front sprocket: AFAM front sprocket #525 16 teeth - a61800.16
• Chain: AFAM chain 525 XHR3-G Xs-Ring 110 w. rivet link - a525xhr3.g.110

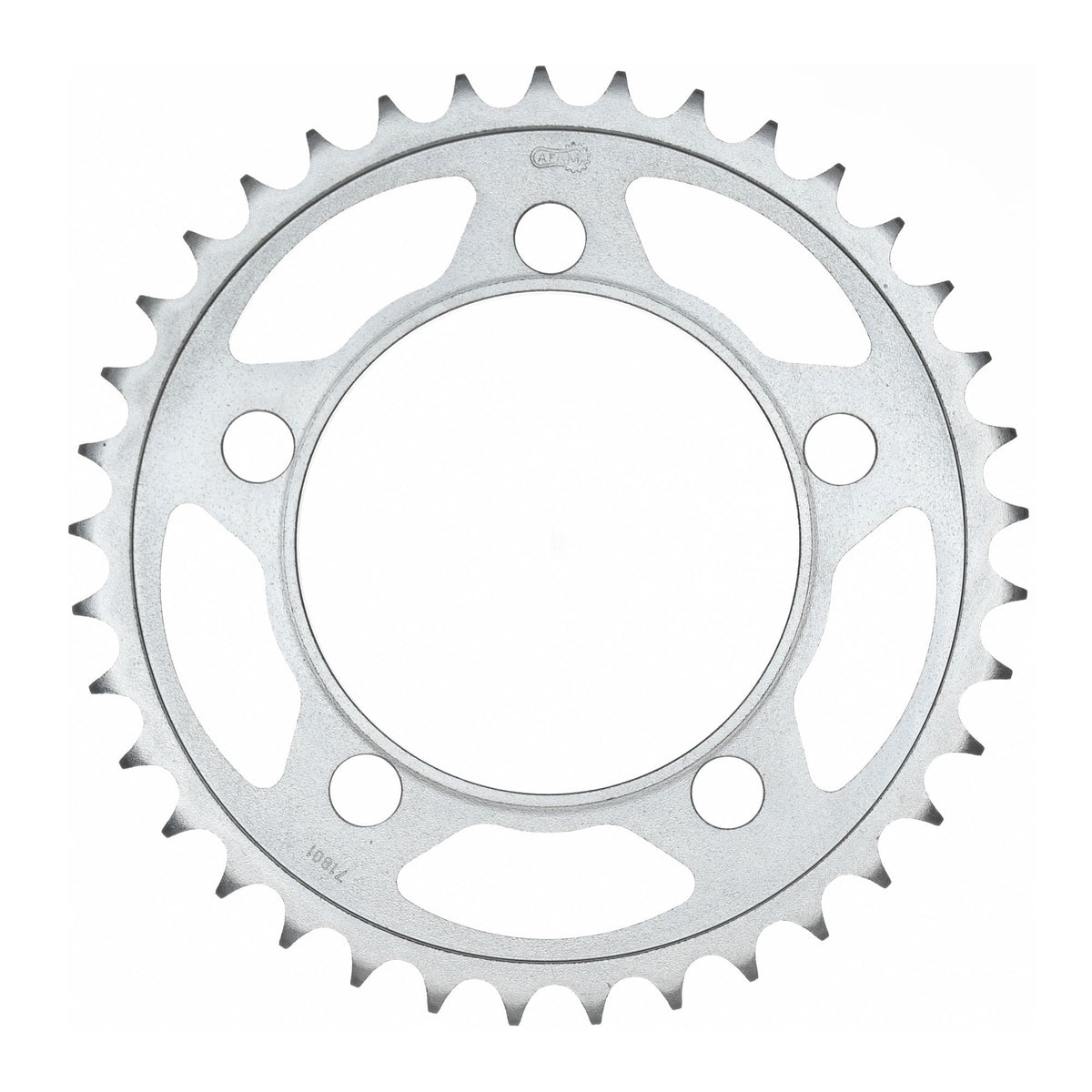

• Rear sprocket: AFAM rear sprocket STEEL #525 38 teeth - a71801.38
• Gear ratio sprocket-chain-rear sprocket: 16-110-38

AFAM 525 XHR3-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-Ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical data:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The offered goods are accessory/spare parts from a third-party manufacturer, which were not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-47104

Suitable for

KTM 751 - 1000 cc 990 Super Duke KTM LC8 EF 2007
KTM 751 - 1000 cc 990 Super Duke KTM LC8 EF 2008
KTM 751 - 1000 cc 990 Super Duke KTM LC8 EF 2009
KTM 751 - 1000 cc 990 Super Duke KTM LC8 EF 2010
KTM 751 - 1000 cc 990 Super Duke KTM LC8 EF 2011
