AFAM chain kit for KTM EGS 620 E Adventure LC4 1997 520 XMR3 chain kit

AFAM chain kit for KTM EGS 620 E Adventure LC4 1997 520 XMR3 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only mentioned to indicate compatibility!

Components of the chain kit KTM EGS 620 E Adventure LC4 1997-1997

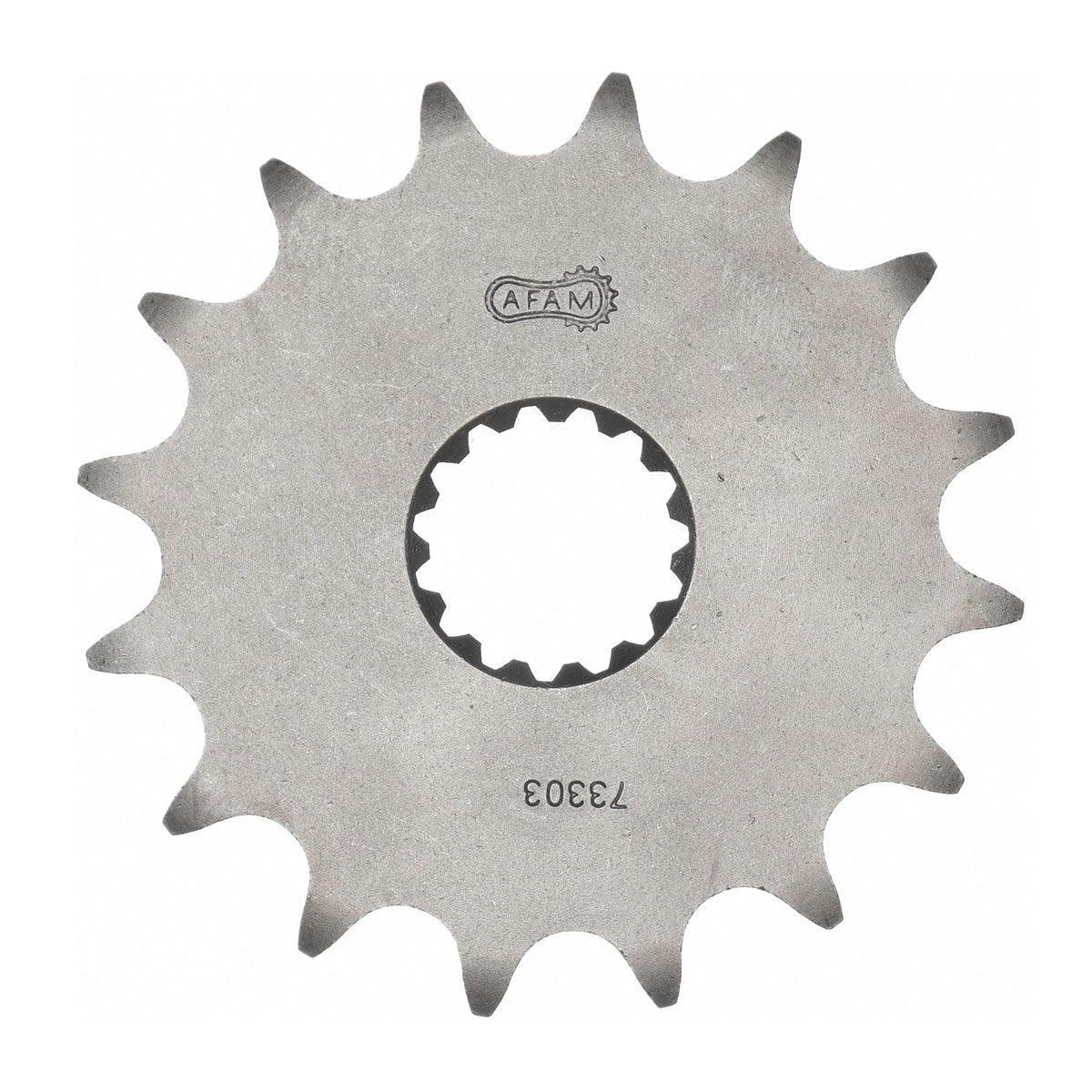

• Front sprocket: AFAM front sprocket #520 17 teeth - a73303.17

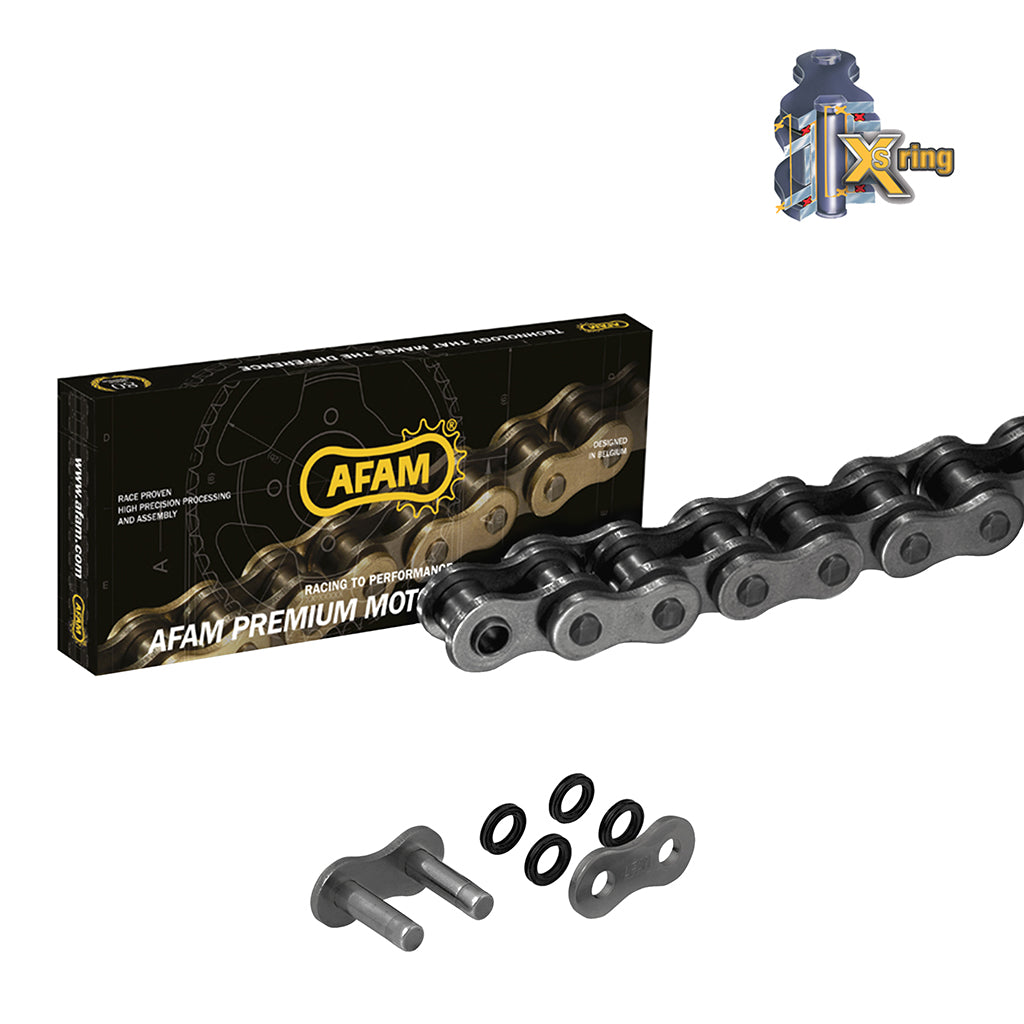

• Chain: AFAM chain 520 XMR3 Xs-Ring 118 with rivet link - a520xmr3.118
• Rear sprocket: AFAM STEEL rear sprocket #520 50 teeth - a71304.50
• Gear ratio front sprocket-chain-rear sprocket: 17-118-50

AFAM 520 XMR3

Reinforced chain with smooth running properties
Xs-Ring chain
Color: Steel
Application by displacement: up to 650 cc / street

Technical data:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer that was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-39953

Suitable for

KTM 501 - 750 cc EGS 620 E Adventure LC4 1997
