AFAM chain kit for KTM EGS 620 E Adventure LC4 1997 520 XSRG chain kit

AFAM chain kit for KTM EGS 620 E Adventure LC4 1997 520 XSRG chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - Manufacturer names are mentioned only to indicate compatibility!

Components of the chain kit KTM EGS 620 E Adventure LC4 1997-1997

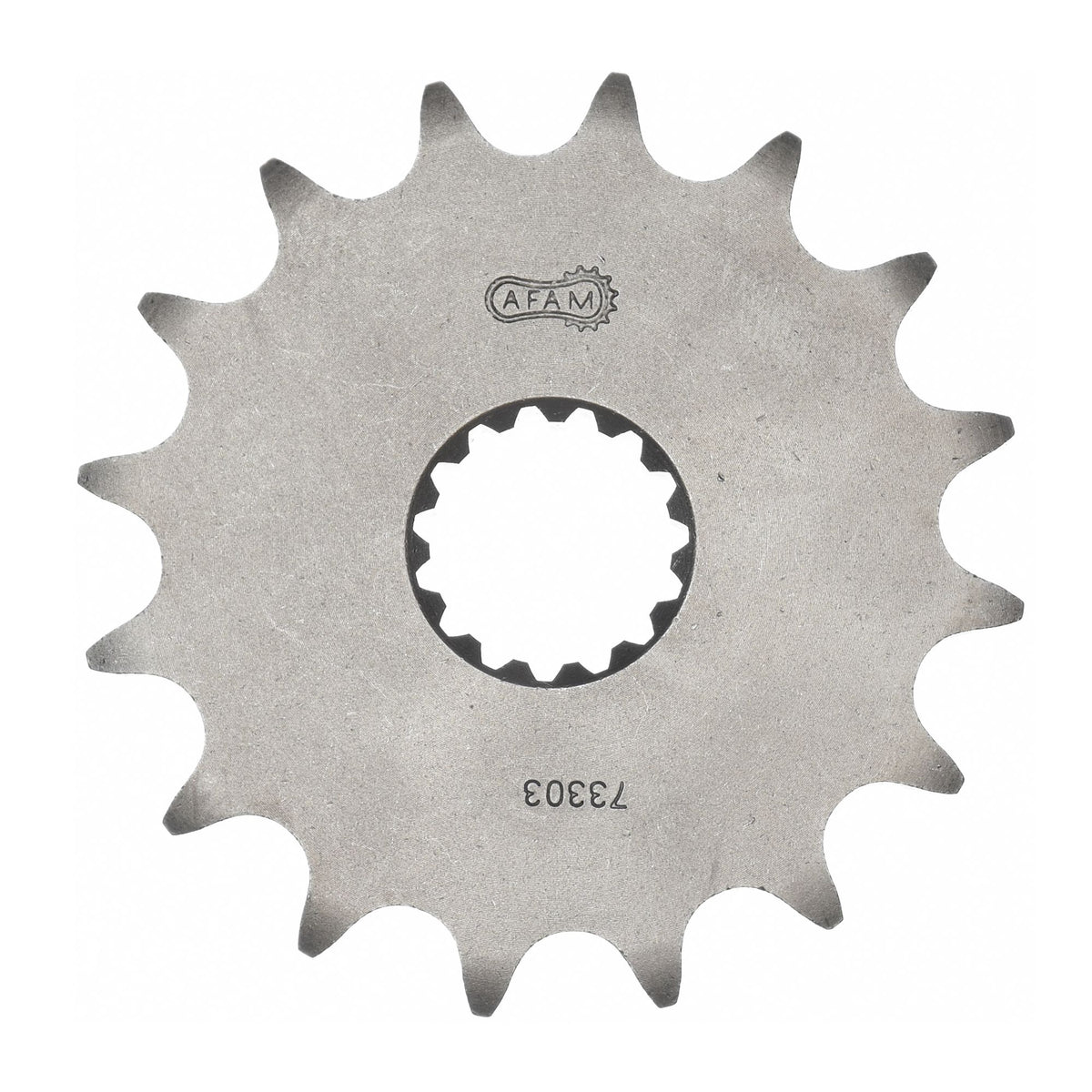

• Front sprocket: AFAM front sprocket #520 17 teeth - a73303.17
• Chain: AFAM chain 520 XSR-G Xs-ring 118 with rivet link - a520xsr.g.118

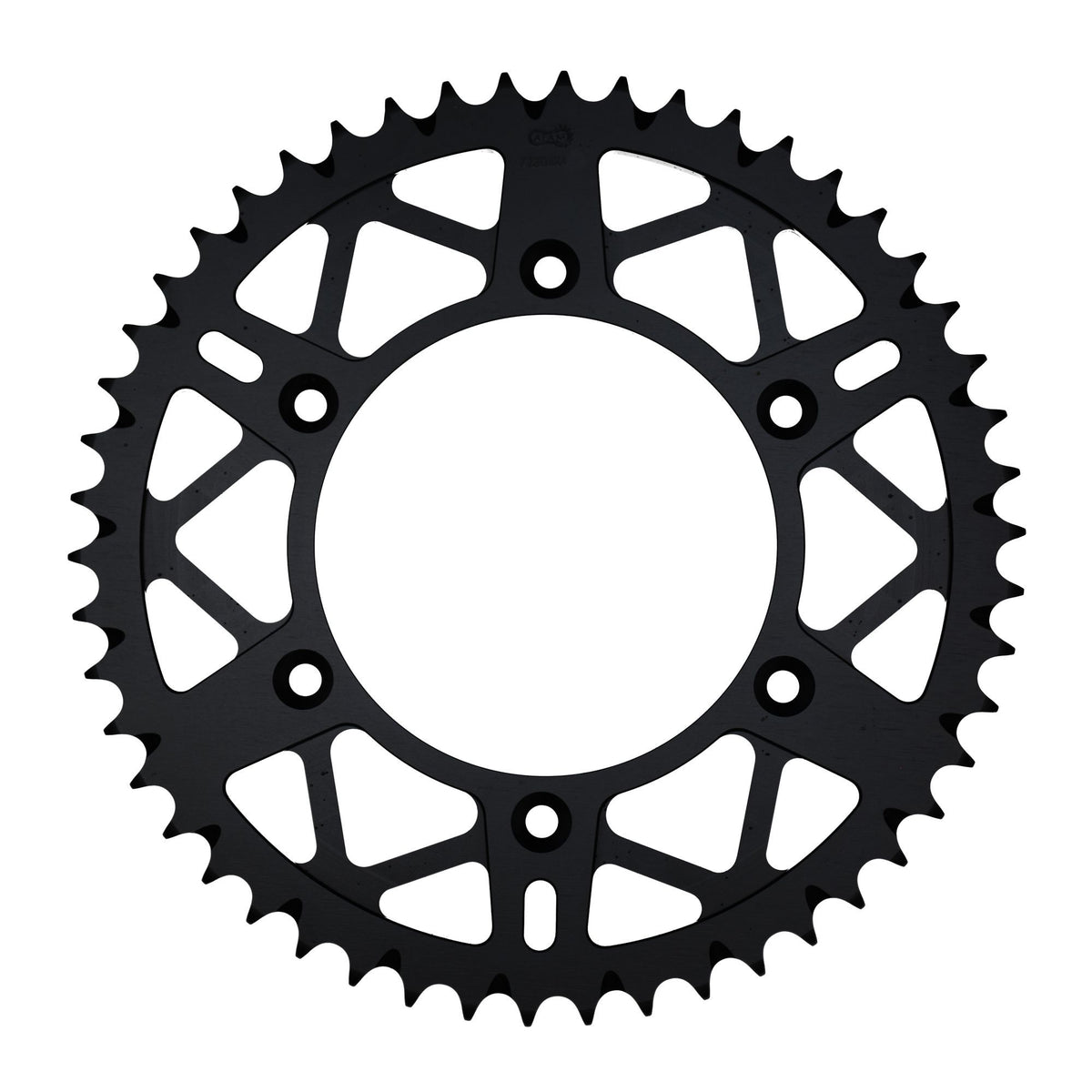

• Rear sprocket: AFAM steel rear sprocket #520 with mud grooves 50 T - a72304PK.50
• Gear ratio front sprocket-chain-rear sprocket: 17-118-50

AFAM 520 XSR-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 800 cc / road, sport and off-road

Technical data:
Pitch: 520
Pin length: 20.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 36.30 kN
Weight per 100 links: 1.58 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-39954

Fits

KTM 501 - 750 cc EGS 620 E Adventure LC4 1997
