AFAM chain kit for KTM EXC 125 99-08 520 XHR2G chain kit

AFAM chain set for KTM EXC 125 99-08 520 XHR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit KTM EXC 125 2T 1999-2008

• Front sprocket: AFAM front sprocket #520 13 teeth - a73301.13
• Chain: AFAM chain 520 XHR2-G Xs-ring 116 with rivet link - a520xhr2.g.116

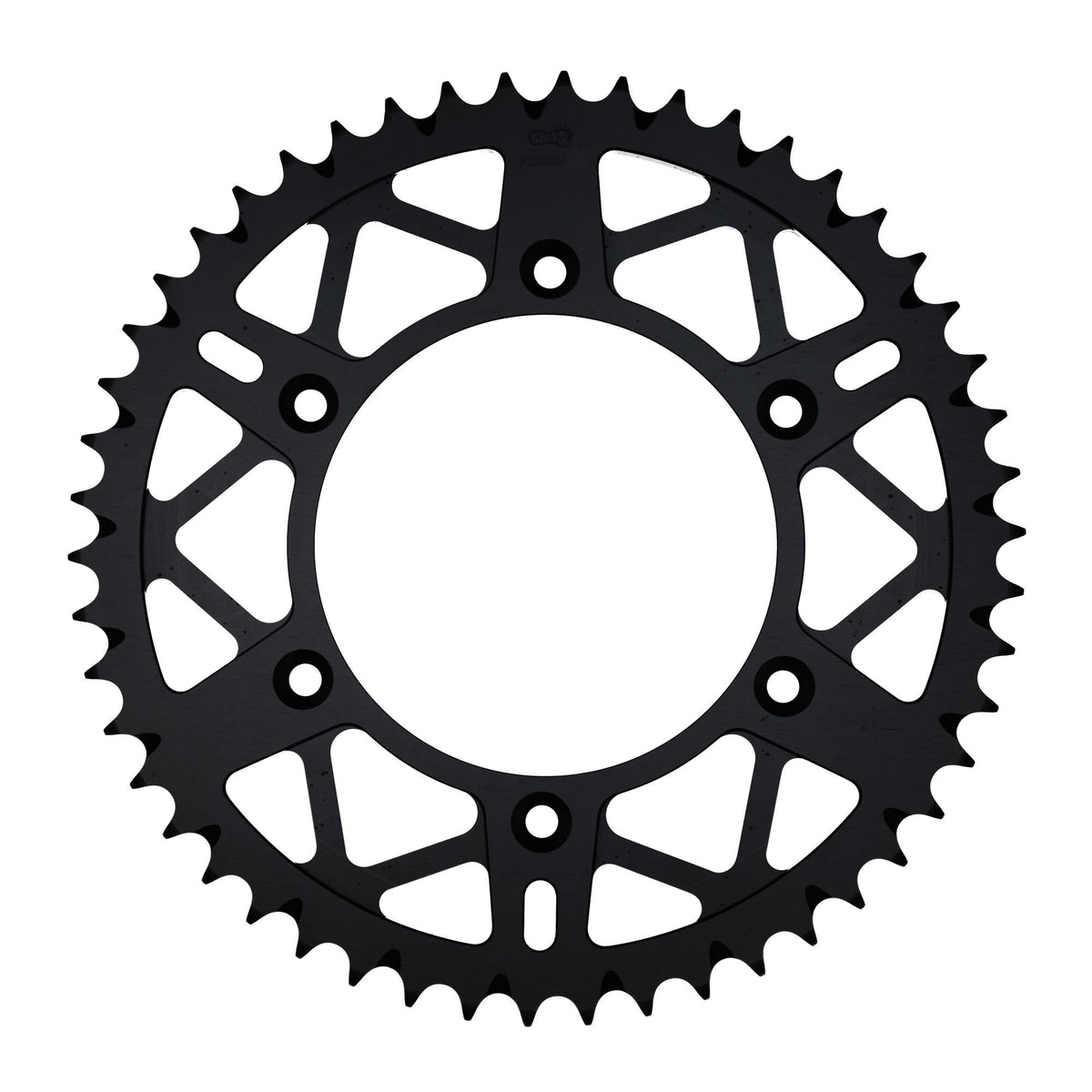

• Rear sprocket: AFAM steel rear sprocket #520 with mud grooves 50 T - a72304PK.50
• Gear ratio front sprocket-chain-rear sprocket: 13-116-50

AFAM 520 XHR2-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Colour: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for the purpose of identifying compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-45476

Suitable for

KTM 101 - 125 cc EXC 125 2T 1999
KTM 101 - 125 cc EXC 125 2T 2000
KTM 101 - 125 cc EXC 125 2T 2001
KTM 101 - 125 cc EXC 125 2T 2002
KTM 101 - 125 cc EXC 125 2T 2003
KTM 101 - 125 cc EXC 125 2T 2004
KTM 101 - 125 cc EXC 125 2T 2005
KTM 101 - 125 cc EXC 125 2T 2006
KTM 101 - 125 cc EXC 125 2T 2007
KTM 101 - 125 cc EXC 125 2T 2008
