AFAM chain kit for KTM EXC 250 12-17 520 XHR2G chain kit

AFAM chain set for KTM EXC 250 12-17 520 XHR2G chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit KTM EXC 250 2T 2012-2017

• Sprocket: AFAM sprocket #520 14 teeth - a73301.14
• Chain: AFAM chain 520 XHR2-G Xs-ring 118 with rivet link - a520xhr2.g.118

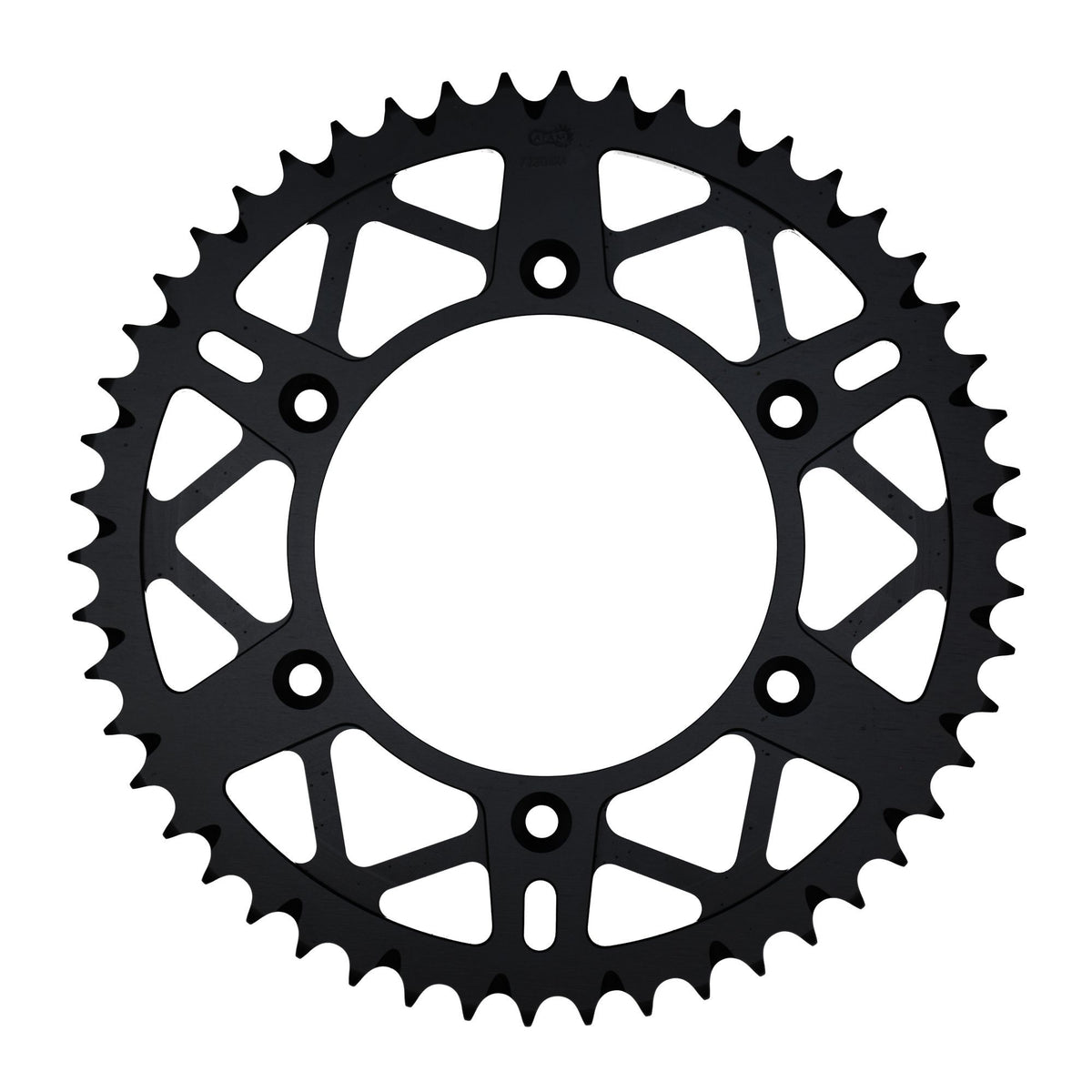

• Rear sprocket: AFAM steel sprocket #520 with mud grooves 50 T - a72304PK.50
• Transmission ratio sprocket-chain-rear sprocket: 14-118-50

AFAM 520 XHR2-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-41546

Suitable for

KTM 126 - 250 cc EXC 250 2T 2012
KTM 126 - 250 cc EXC 250 2T 2013
KTM 126 - 250 cc EXC 250 2T 2014
KTM 126 - 250 cc EXC 250 2T 2015
KTM 126 - 250 cc EXC 250 2T 2016
KTM 126 - 250 cc EXC 250 2T 2017
