AFAM chain kit for KTM EXC 300 TPI 18-20 520 MX6GG chain kit

AFAM chain kit for KTM EXC 300 TPI 18-20 520 MX6GG chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

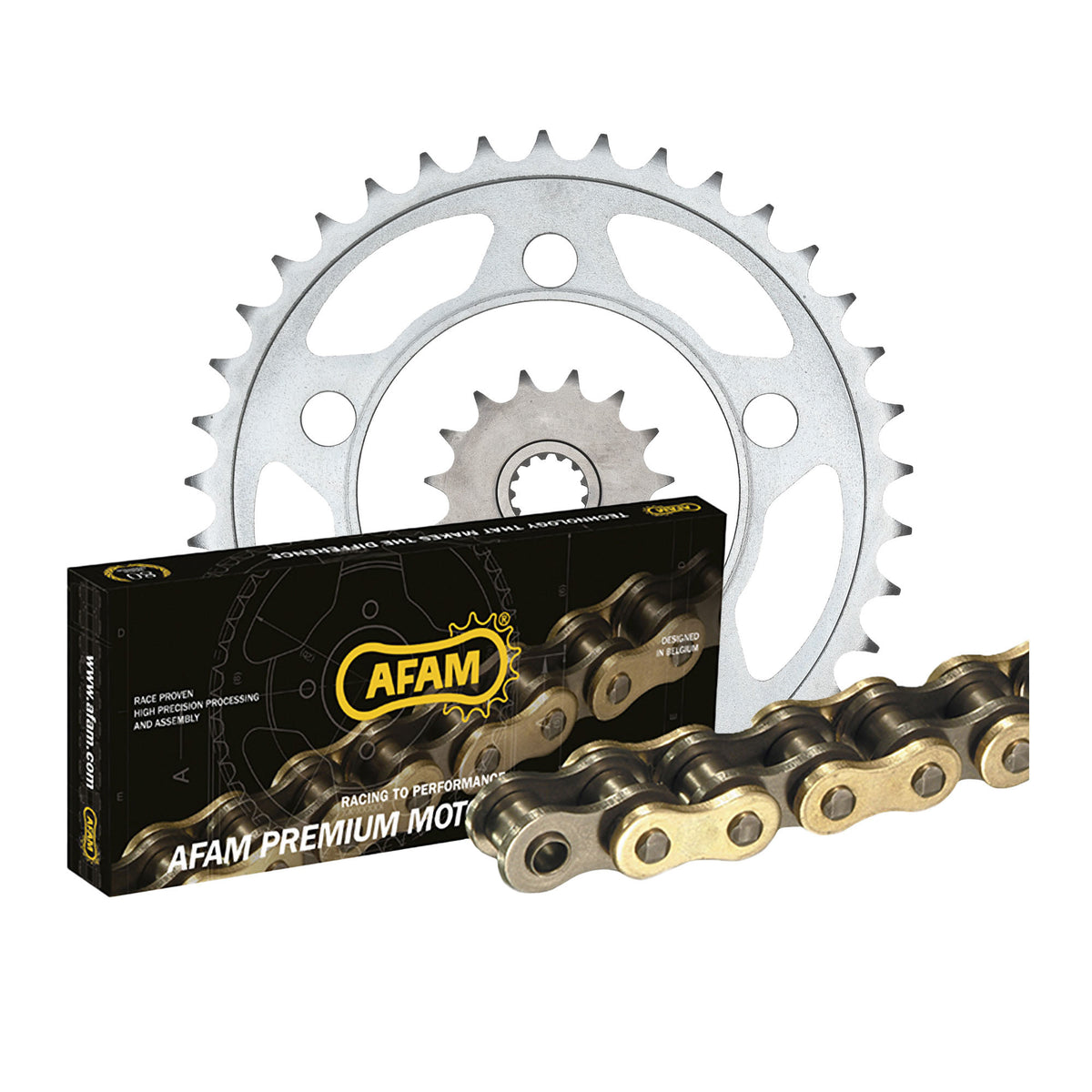

Components of the KTM EXC 300 TPI 2T 2018-2020 chain kit

• Front sprocket: AFAM sprocket #520 14 teeth - a73301.14
• Chain: AFAM chain 520 MX6-GG 118 w. clip link - a520mx6.gg.118
• Rear sprocket: AFAM steel sprocket #520 with mud grooves 50 T - a72304PK.50
• Gear ratio sprocket-chain-rear sprocket: 14-118-50

AFAM 520 MX6-GG MX Racing GP

Pure moto-cross chain
Without O-rings
Color: Gold/Gold
Application by displacement: up to 500 cc / moto-cross only

Technical specifications:
Pitch: 520
Pin length: 16.8 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 37.40 kN
Weight per 100 links: 1.64 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-63510

Fits

KTM 251 - 500 cc EXC 300 TPI 2T 2018
KTM 251 - 500 cc EXC 300 TPI 2T 2019
KTM 251 - 500 cc EXC 300 TPI 2T 2020
