AFAM chain kit for KTM Freeride E 12-14 520 MX6GG chain kit

AFAM Chain Kit for KTM Freeride E 12-14 520 MX6GG Chain Kit

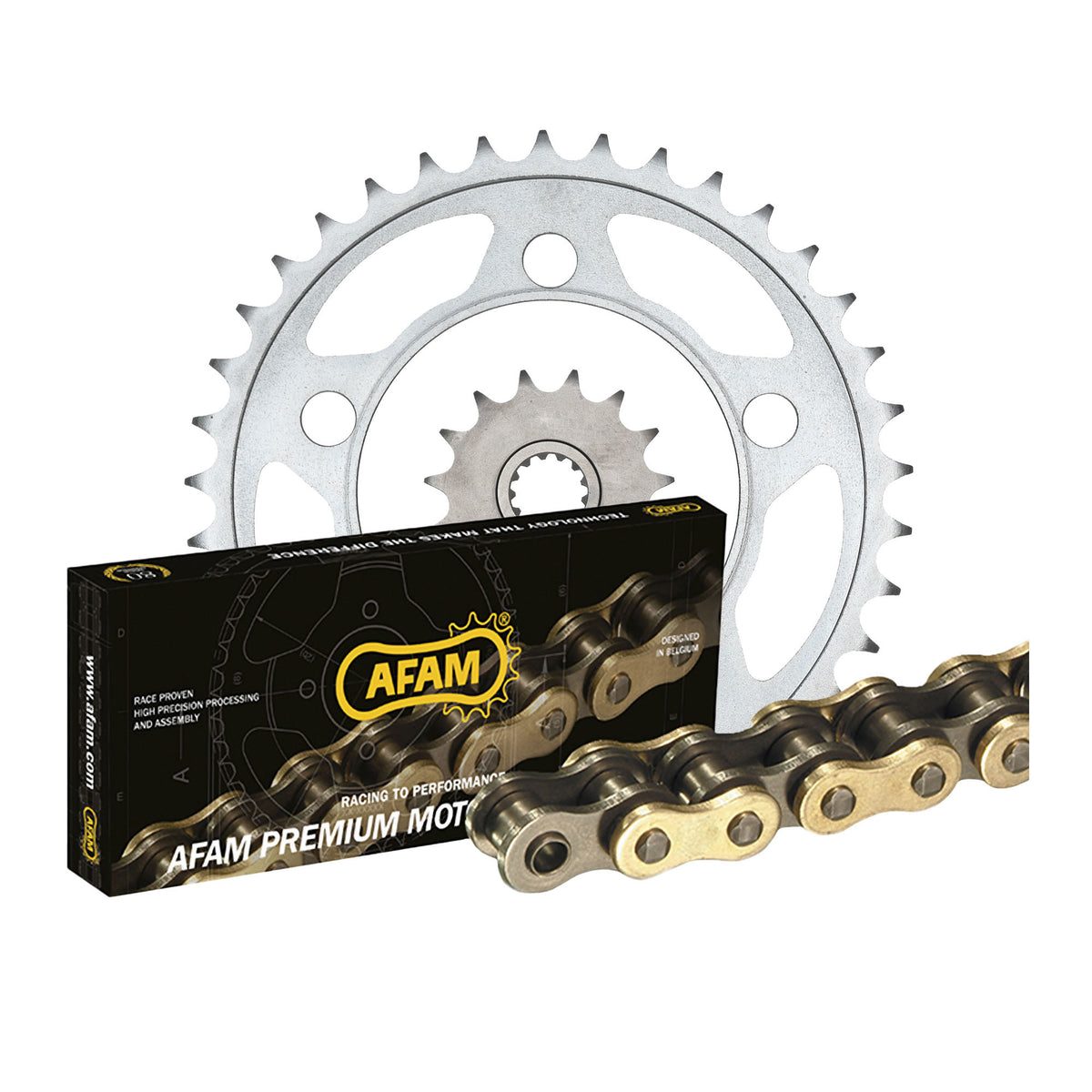

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching master link.

Unless stated otherwise: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit for KTM Freeride E Electric 2012-2014

• Sprocket: AFAM sprocket #520 11 teeth - a73301.11
• Chain: AFAM chain 520 MX6-GG 118 w. clip master link - a520mx6.gg.118

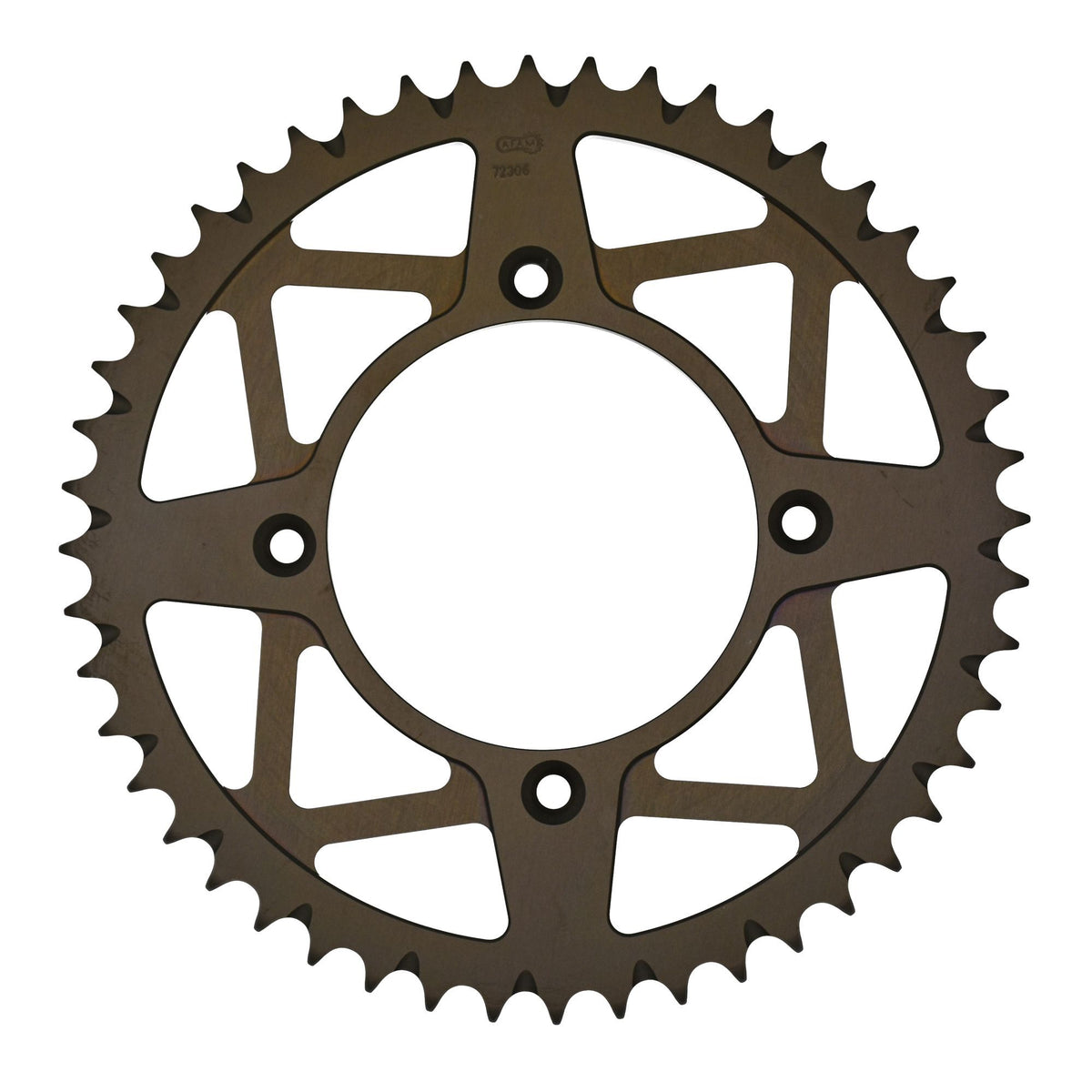

• Rear sprocket: AFAM rear sprocket 32243-48 ALU #520 S/C 48 teeth - a72306.48
• Gear ratio sprocket-chain-rear sprocket: 11-118-48

AFAM 520 MX6-GG MX Racing GP

Pure motocross chain
Without O-rings
Color: Gold/Gold
Application by displacement: up to 500 cc / motocross only

Technical specifications:
Pitch: 520
Pin length: 16.8 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 37.40 kN
Weight per 100 links: 1.64 kg

Unless stated otherwise: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-78785

Suitable for

KTM electric Freeride E Electric 2012
KTM electric Freeride E Electric 2013
KTM electric Freeride E Electric 2014
