AFAM chain kit for KTM SC 400 Super Competition 95-00 520 XHR2G chain kit

AFAM Chain kit for KTM SC 400 Super Competition 95-00 520 XHR2G chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit KTM SC 400 Super Competition 4T 1995-2000

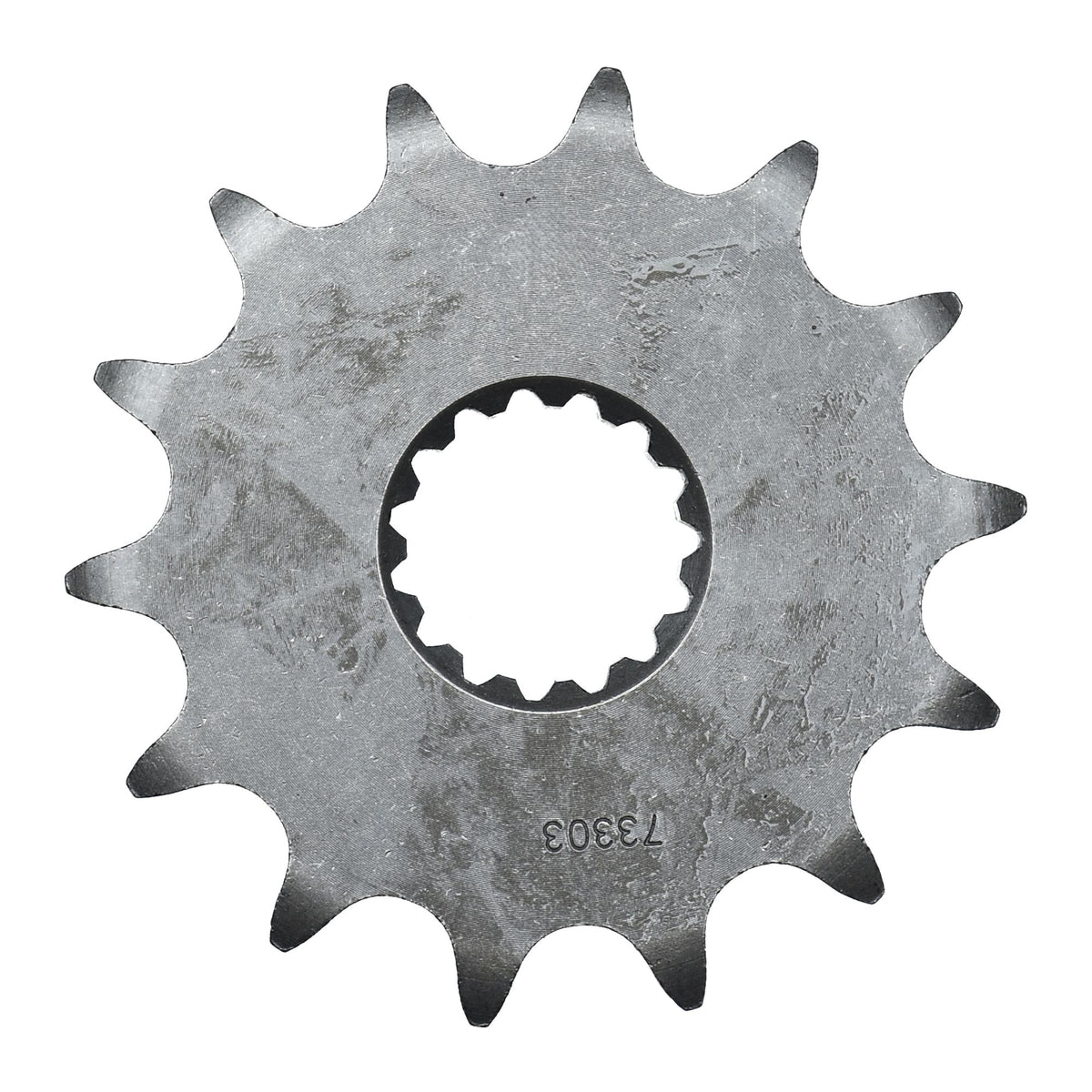

• Front sprocket: AFAM front sprocket #520 14 teeth - a73303.14
• Chain: AFAM chain 520 XHR2-G Xs-Ring 114 w. rivet link - a520xhr2.g.114
• Rear sprocket: AFAM rear sprocket STEEL #520 50 teeth - a71304.50
• Gear ratio front sprocket-chain-rear sprocket: 14-114-50

AFAM 520 XHR2-G

Hyper-reinforced chain with smooth-running properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-31835

Suitable for

KTM 251 - 500 cc SC 400 Super Competition 4T 1995
KTM 251 - 500 cc SC 400 Super Competition 4T 1996
KTM 251 - 500 cc SC 400 Super Competition 4T 1997
KTM 251 - 500 cc SC 400 Super Competition 4T 1998
KTM 251 - 500 cc SC 400 Super Competition 4T 1999
KTM 251 - 500 cc SC 400 Super Competition 4T 2000
