AFAM chain kit for KTM SC 620 Supermoto Competition 00-01 520 XHR2G chain kit

AFAM Chain Kit for KTM SC 620 Supermoto Competition 00-01 520 XHR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - Manufacturer names are used for compatibility purposes only!

Components of the chain kit KTM SC 620 Supermoto Competition LC4 2000-2001

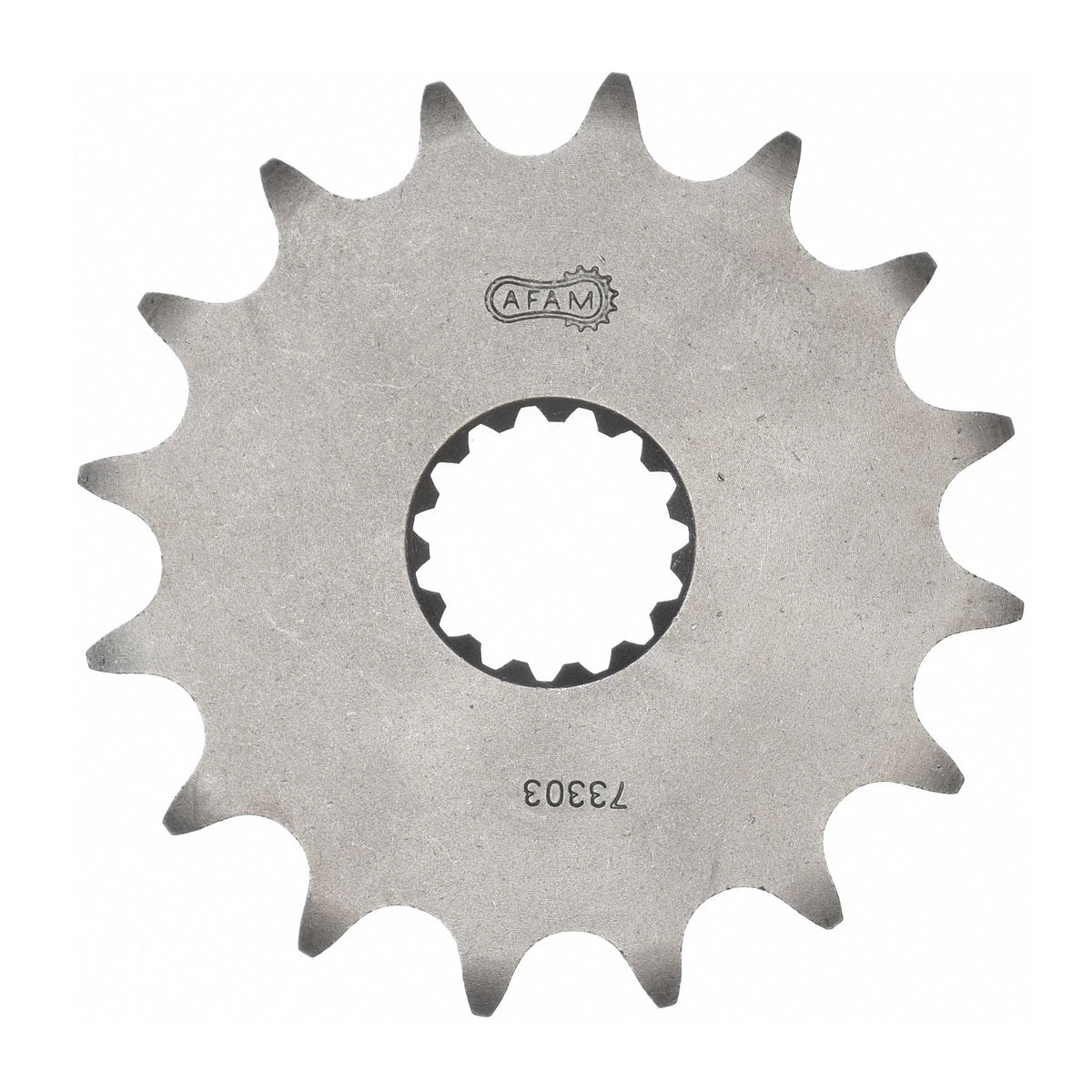

• Front sprocket: AFAM front sprocket #520 17 teeth - a73303.17
• Chain: AFAM chain 520 XHR2-G Xs-ring 110 w. rivet link - a520xhr2.g.110
• Rear sprocket: AFAM rear sprocket ALU #520 40 teeth - a72304n.40
• Transmission ratio front sprocket-chain-rear sprocket: 17-110-40

AFAM 520 XHR2-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical specifications:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-49987

Suitable for

KTM 501 - 750 cc SC 620 Supermoto Competition LC4 2000
KTM 501 - 750 cc SC 620 Supermoto Competition LC4 2001
