AFAM chain set for KTM SX 125 95-17 520 XMR3 chain kit

AFAM Chain Kit for KTM SX 125 95-17 520 XMR3 Chain Kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the KTM SX 125 2T 1995-2017 chain kit

• Sprocket: AFAM sprocket #520 13 teeth - a73301.13
• Chain: AFAM chain 520 XMR3 Xs-ring 118 with rivet link - a520xmr3.118

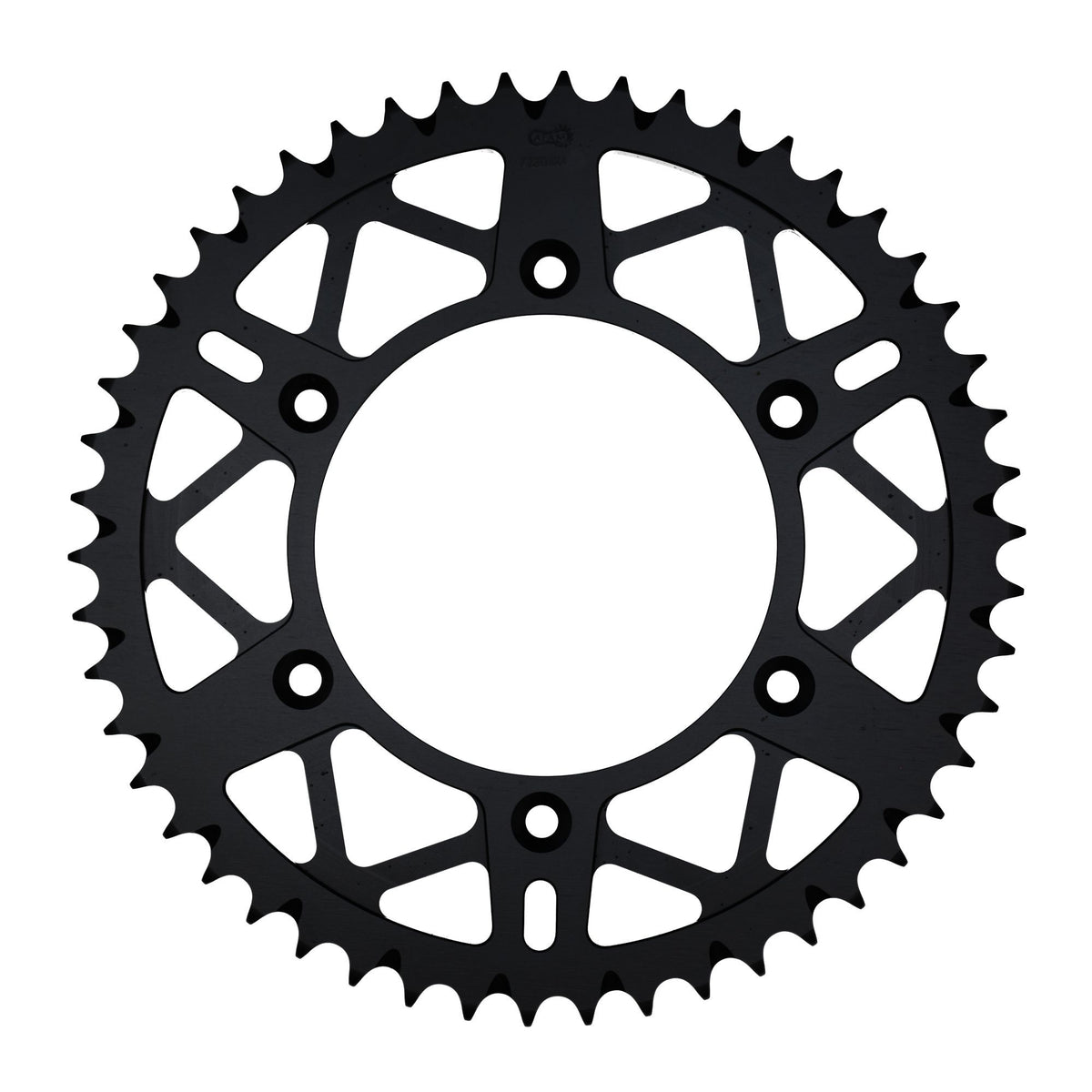

• Chainwheel: AFAM steel chainwheel #520 with mud grooves 50 T - a72304PK.50
• Gear ratio sprocket-chain-chainwheel: 13-118-50

AFAM 520 XMR3

Reinforced chain with low-friction properties
Xs-ring chain
Color: Steel
Application by displacement: up to 650 cc / street

Technical specifications:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-40570

Suitable for

KTM 101 - 125 cc SX 125 2T 1995
KTM 101 - 125 cc SX 125 2T 1996
KTM 101 - 125 cc SX 125 2T 1997
KTM 101 - 125 cc SX 125 2T 1998
KTM 101 - 125 cc SX 125 2T 1999
KTM 101 - 125 cc SX 125 2T 2000
KTM 101 - 125 cc SX 125 2T 2001
KTM 101 - 125 cc SX 125 2T 2002
KTM 101 - 125 cc SX 125 2T 2003
KTM 101 - 125 cc SX 125 2T 2004
KTM 101 - 125 cc SX 125 2T 2005
KTM 101 - 125 cc SX 125 2T 2006
KTM 101 - 125 cc SX 125 2T 2007
KTM 101 - 125 cc SX 125 2T 2008
KTM 101 - 125 cc SX 125 2T 2009
KTM 101 - 125 cc SX 125 2T 2010
KTM 101 - 125 cc SX 125 2T 2011
KTM 101 - 125 cc SX 125 2T 2012
KTM 101 - 125 cc SX 125 2T 2013
KTM 101 - 125 cc SX 125 2T 2014
KTM 101 - 125 cc SX 125 2T 2015
KTM 101 - 125 cc SX 125 2T 2016
KTM 101 - 125 cc SX 125 2T 2017
