AFAM chain kit for KTM SX 50 Pro Senior LC 03-05 415 F chain kit

AFAM chain kit for KTM SX 50 Pro Senior LC 03-05 415 F chain kit

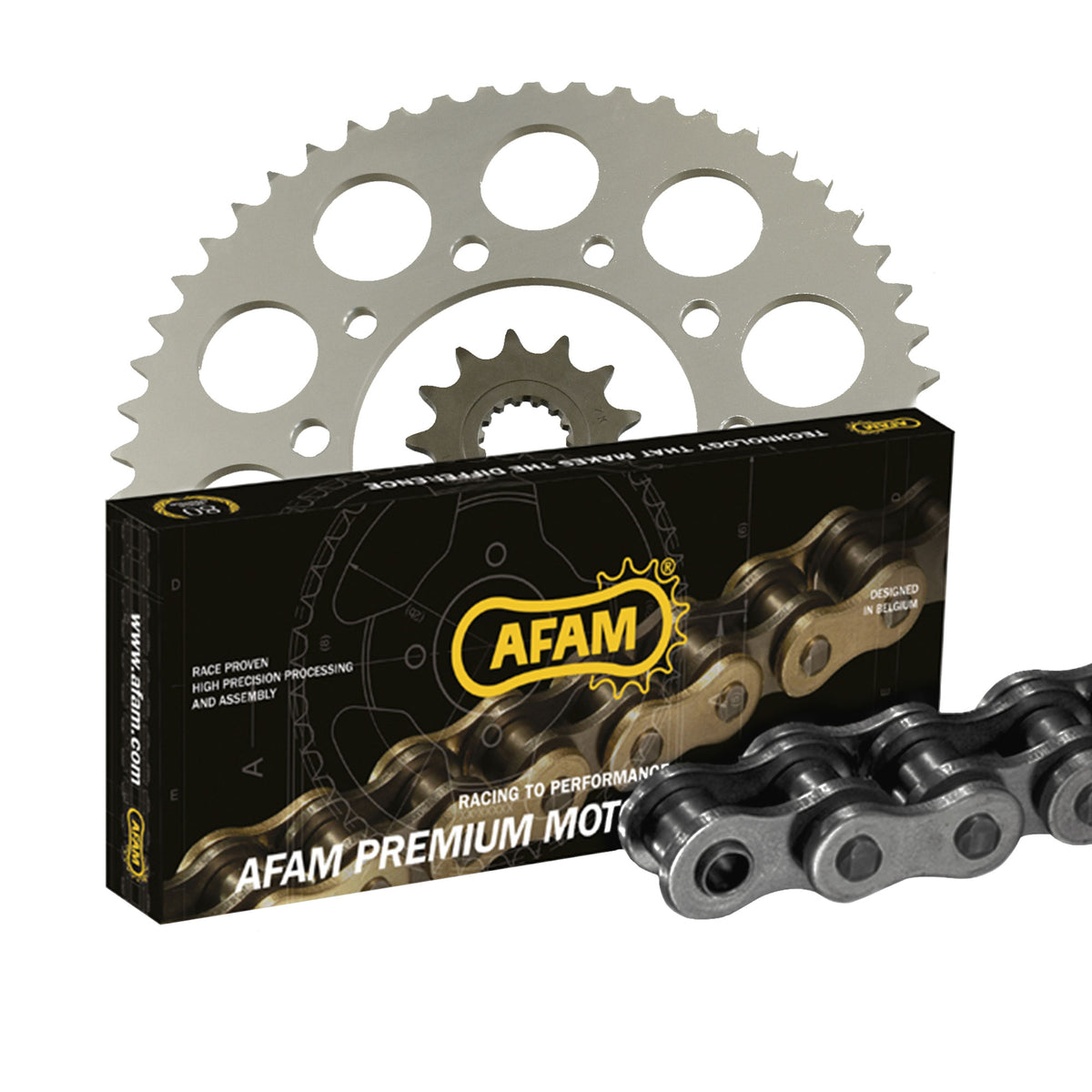

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the KTM SX 50 Pro Senior LC 2T 2003-2005 chain kit

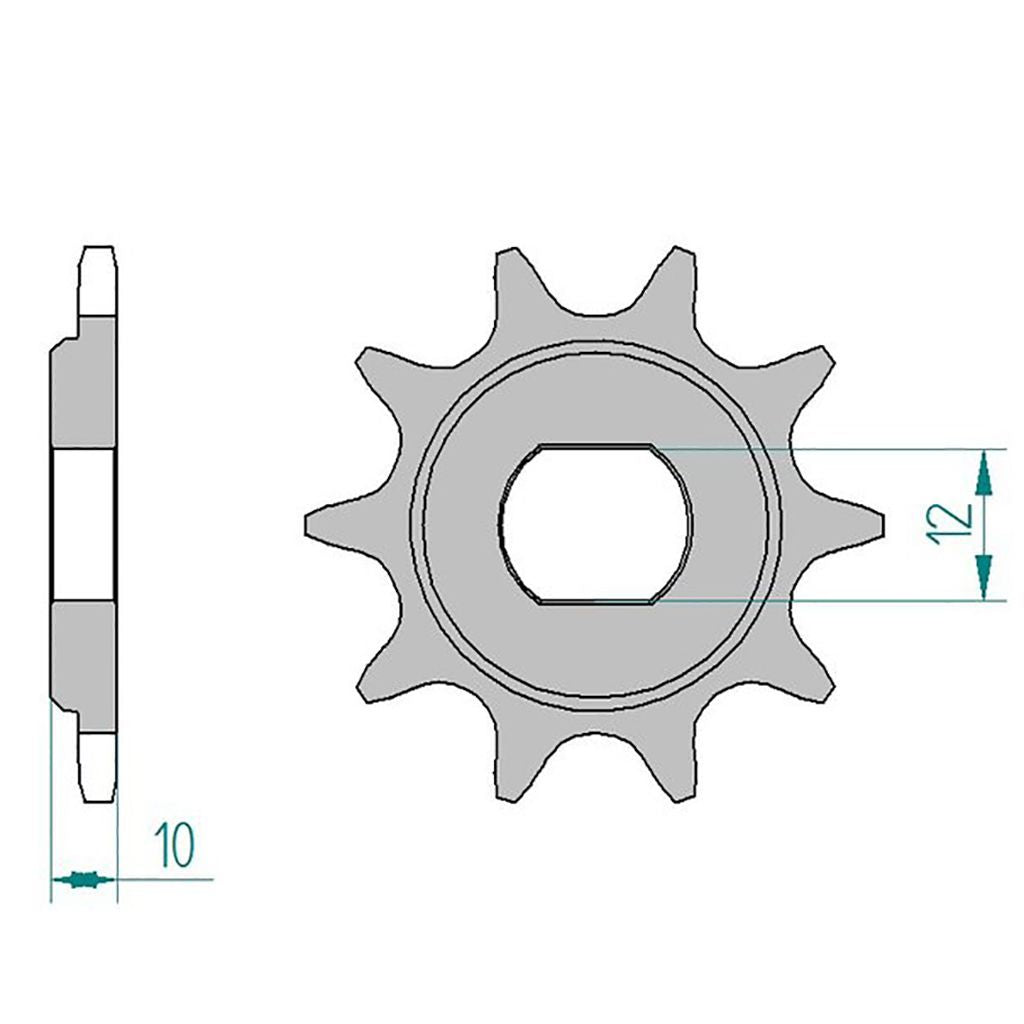

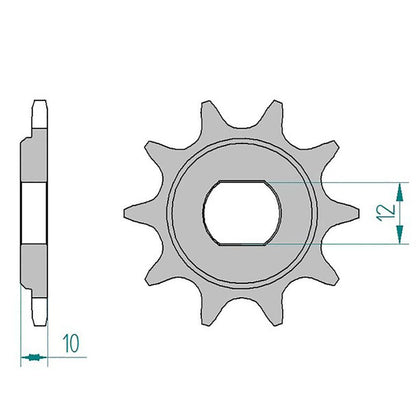

• Front sprocket: AFAM front sprocket #415 11 teeth - a94122.11

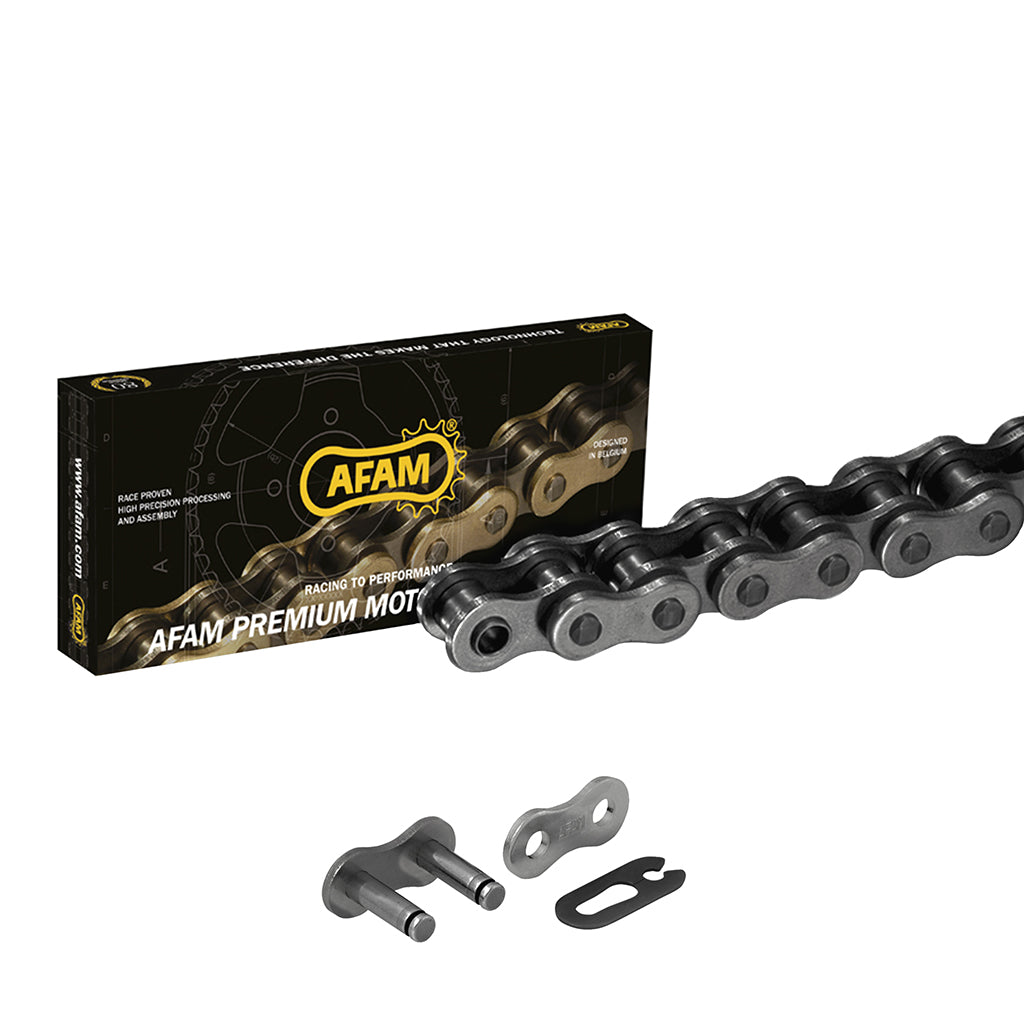

• Chain: AFAM chain 415 F 104 with clip connecting link - a415f.104

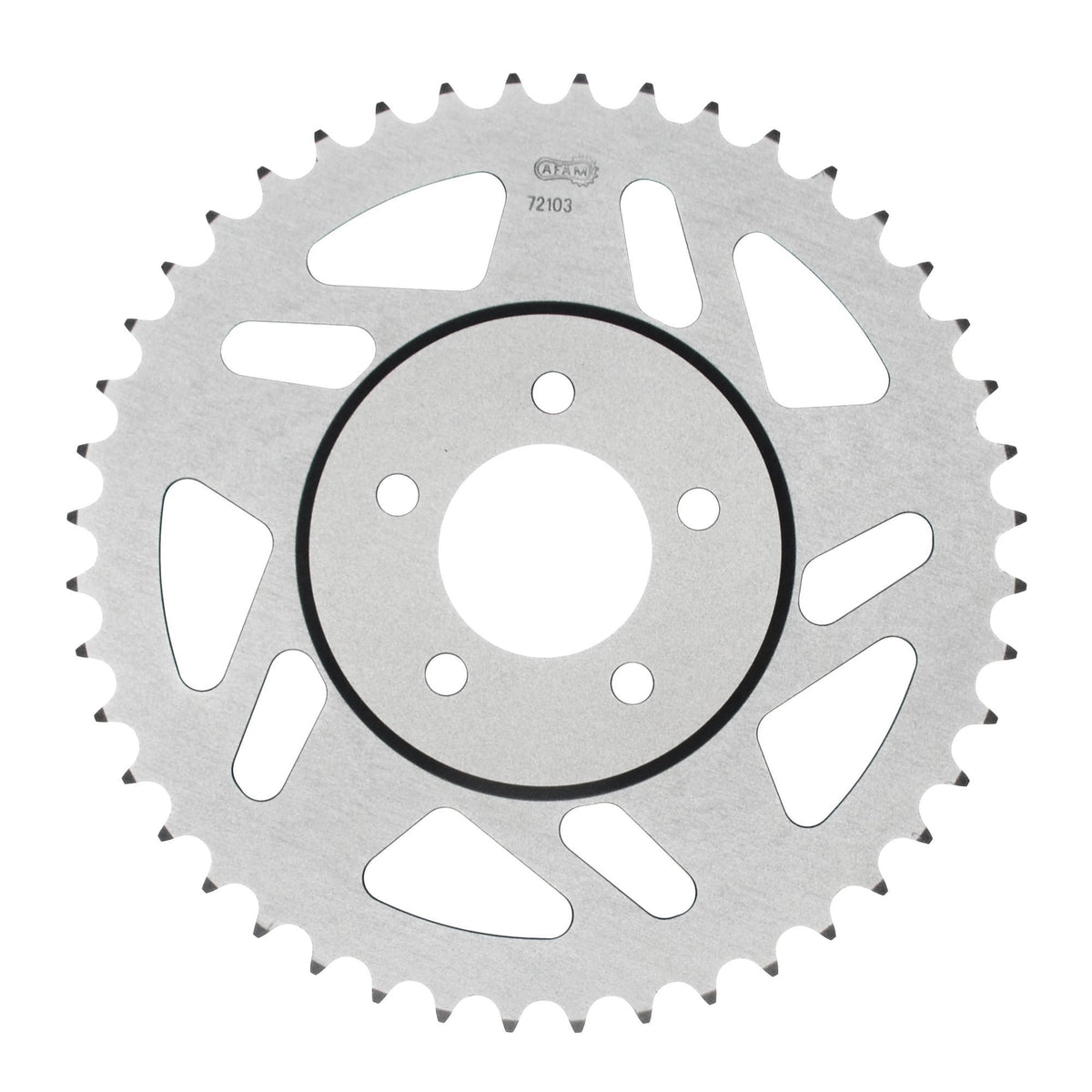

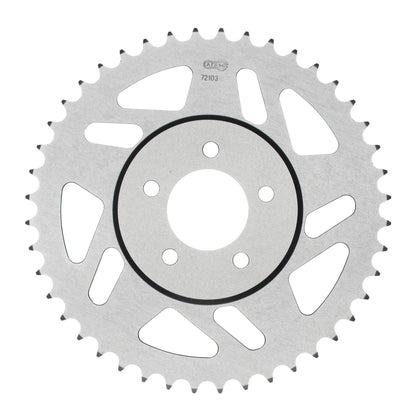

• Rear sprocket: AFAM rear sprocket ALU #415 44 teeth - a72103n.44
• Gear ratio front sprocket-chain-rear sprocket: 11-104-44

AFAM 415 F

Affordable and slightly reinforced chain
Without O-rings
Color: Steel

Technical specifications:
Pitch: 415
Pin length: 14.60 mm
Roller Ø: 7.75 mm
Plate thickness: inner: 1.6 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 17.00 kN
Weight per 100 links: 0.64 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for the purpose of identifying compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-57418

Suitable for

KTM 0 - 100 cc SX 50 Pro Senior LC 2T 2003
KTM 0 - 100 cc SX 50 Pro Senior LC 2T 2004
KTM 0 - 100 cc SX 50 Pro Senior LC 2T 2005
