AFAM chain kit for KTM SX 60 98-00 420 R1G chain kit

AFAM chain kit for KTM SX 60 98-00 420 R1G chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are only mentioned to indicate compatibility!

Components of the chain kit KTM SX 60 2T 1998-2000

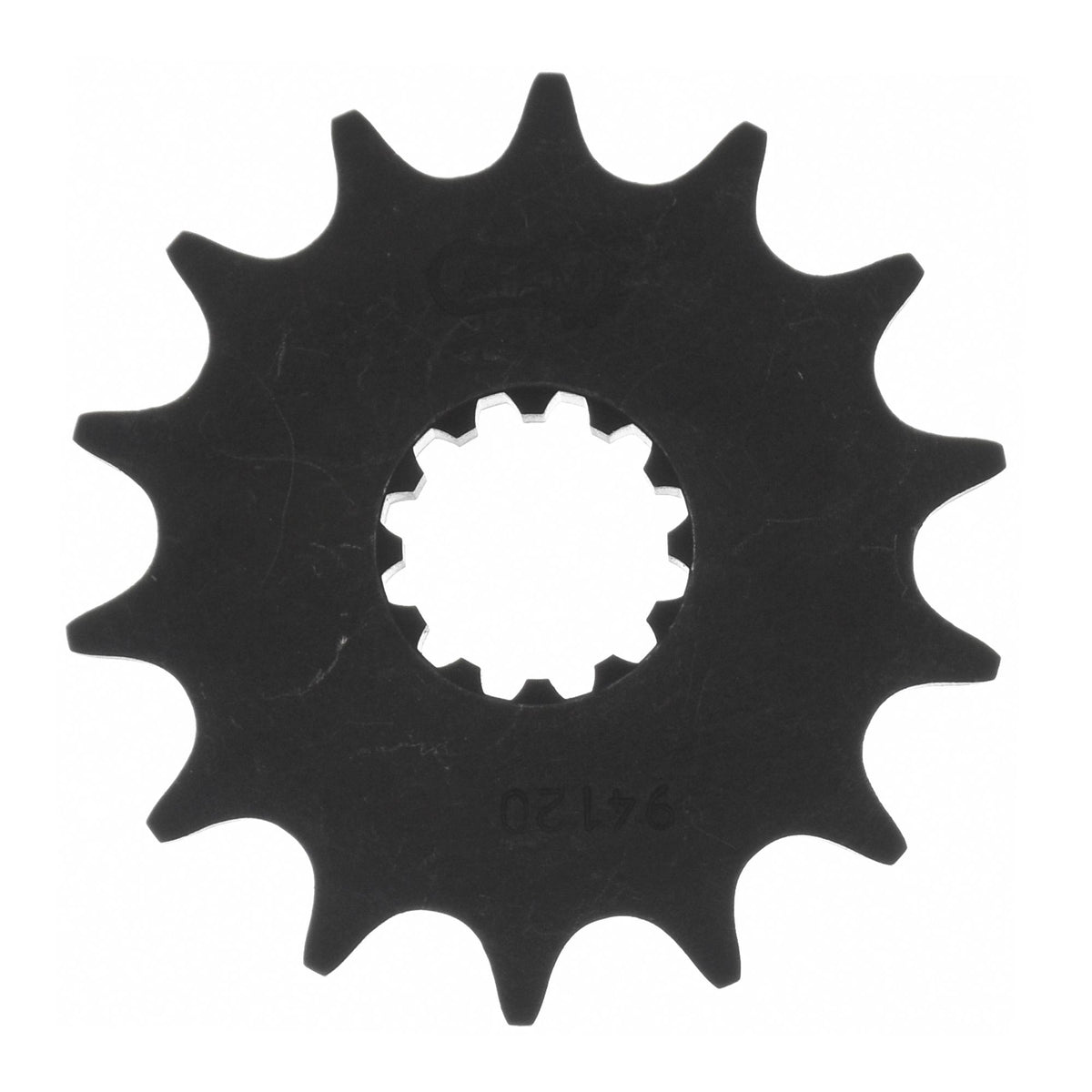

• Front sprocket: AFAM front sprocket #420 12 teeth - a94120.12
• Chain: AFAM chain 420 R1-G reinforced 108 with clip link - a420r1.g.108

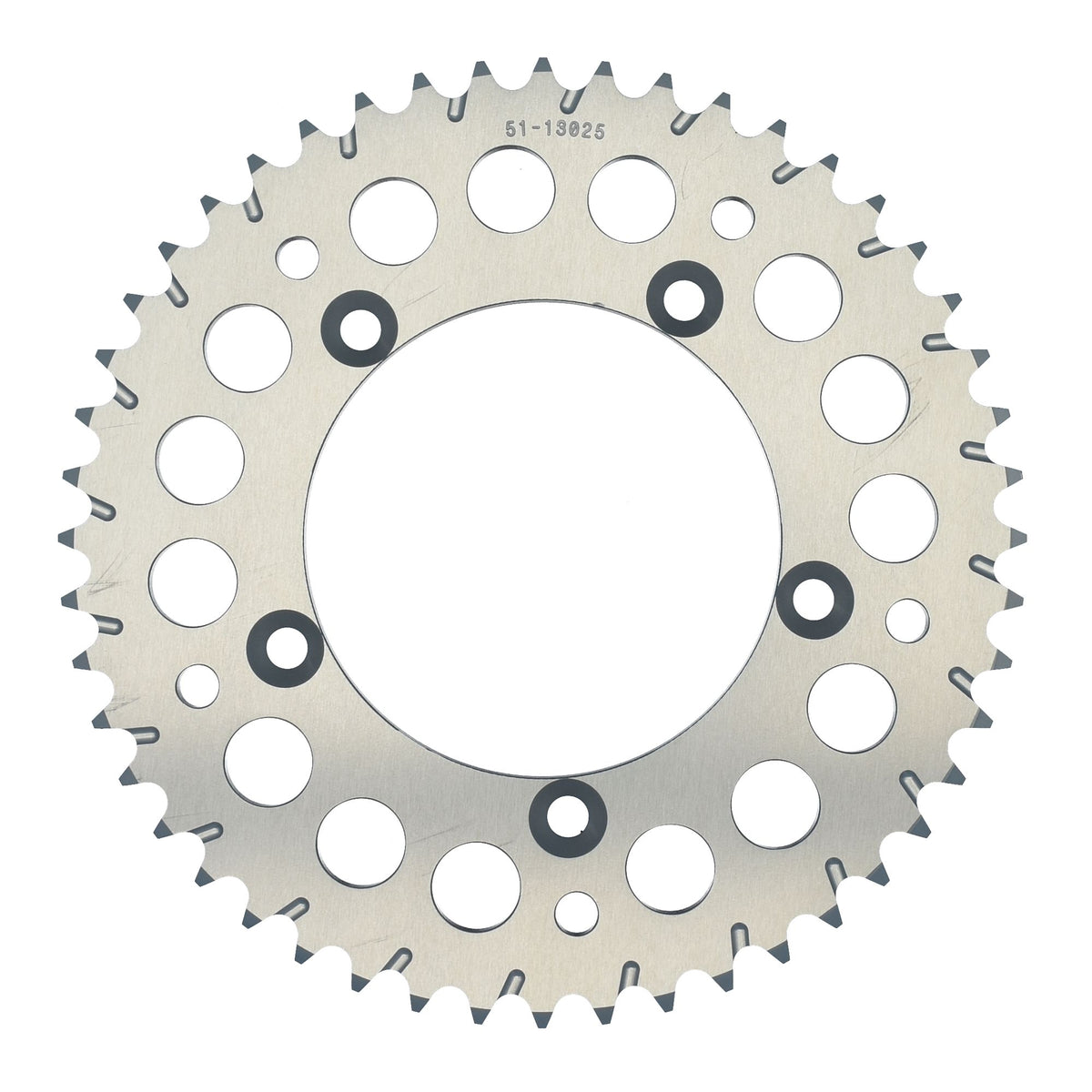

• Rear sprocket: AFAM rear sprocket ALU #420 46 teeth - a72101n.46
• Gear ratio front sprocket-chain-rear sprocket: 12-108-46

AFAM 420 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold

Technical specifications:
Pitch: 420
Pin length: 16.2 mm
Roller Ø: 7.75 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 21.00 kN
Weight per 100 links: 0.88 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Part number	KKF-43900

Suitable for

KTM 0 - 100 cc SX 60 2T 1998
KTM 0 - 100 cc SX 60 2T 1999
KTM 0 - 100 cc SX 60 2T 2000
