AFAM chain kit for KTM SX 620 LC4 94-99 520 XHR2G chain kit

AFAM chain kit for KTM SX 620 LC4 94-99 520 XHR2G chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the KTM SX 620 LC4 1994-1999 chain kit

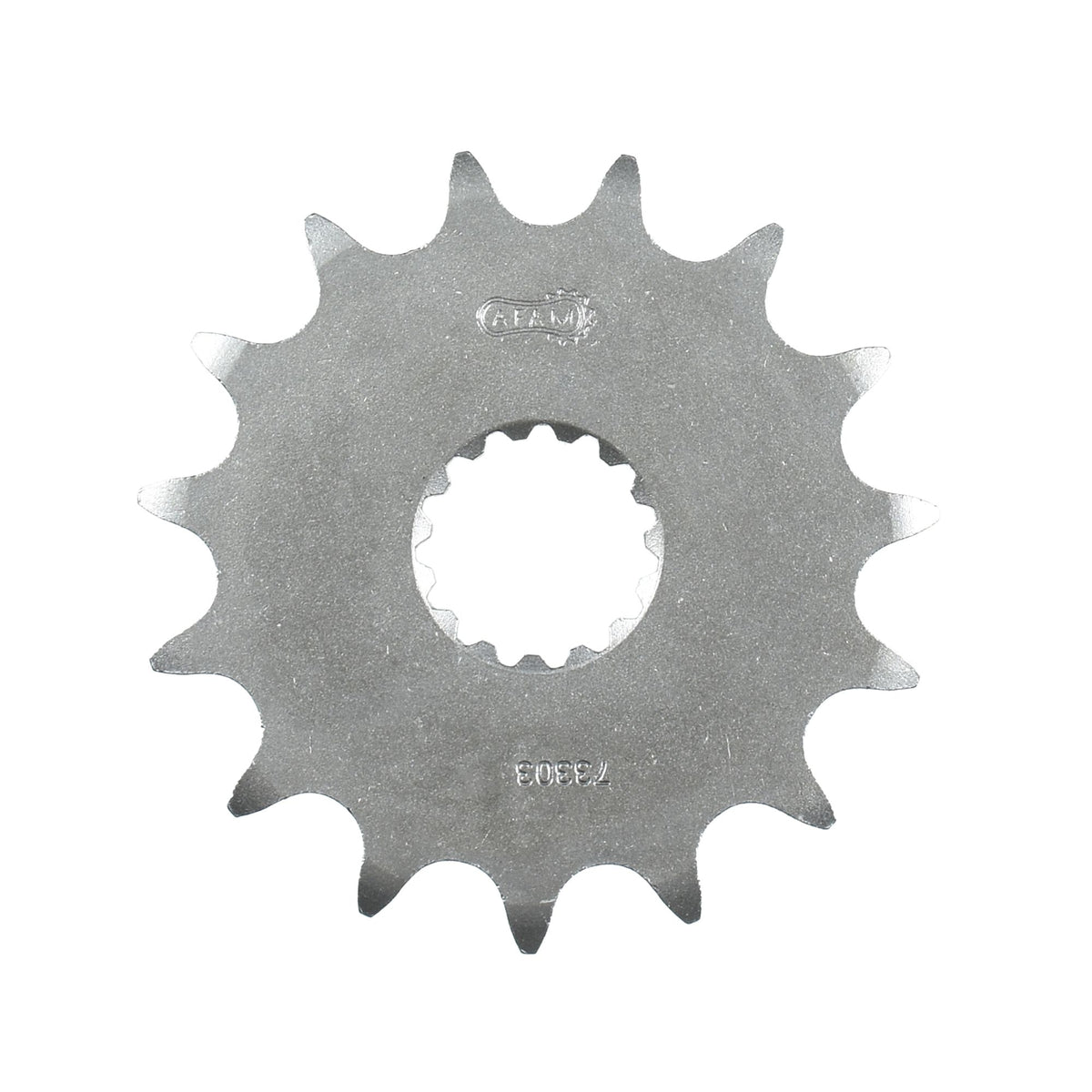

• Sprocket: AFAM sprocket #520 15 teeth - a73303.15
• Chain: AFAM chain 520 XHR2-G Xs-ring 114 with rivet link - a520xhr2.g.114

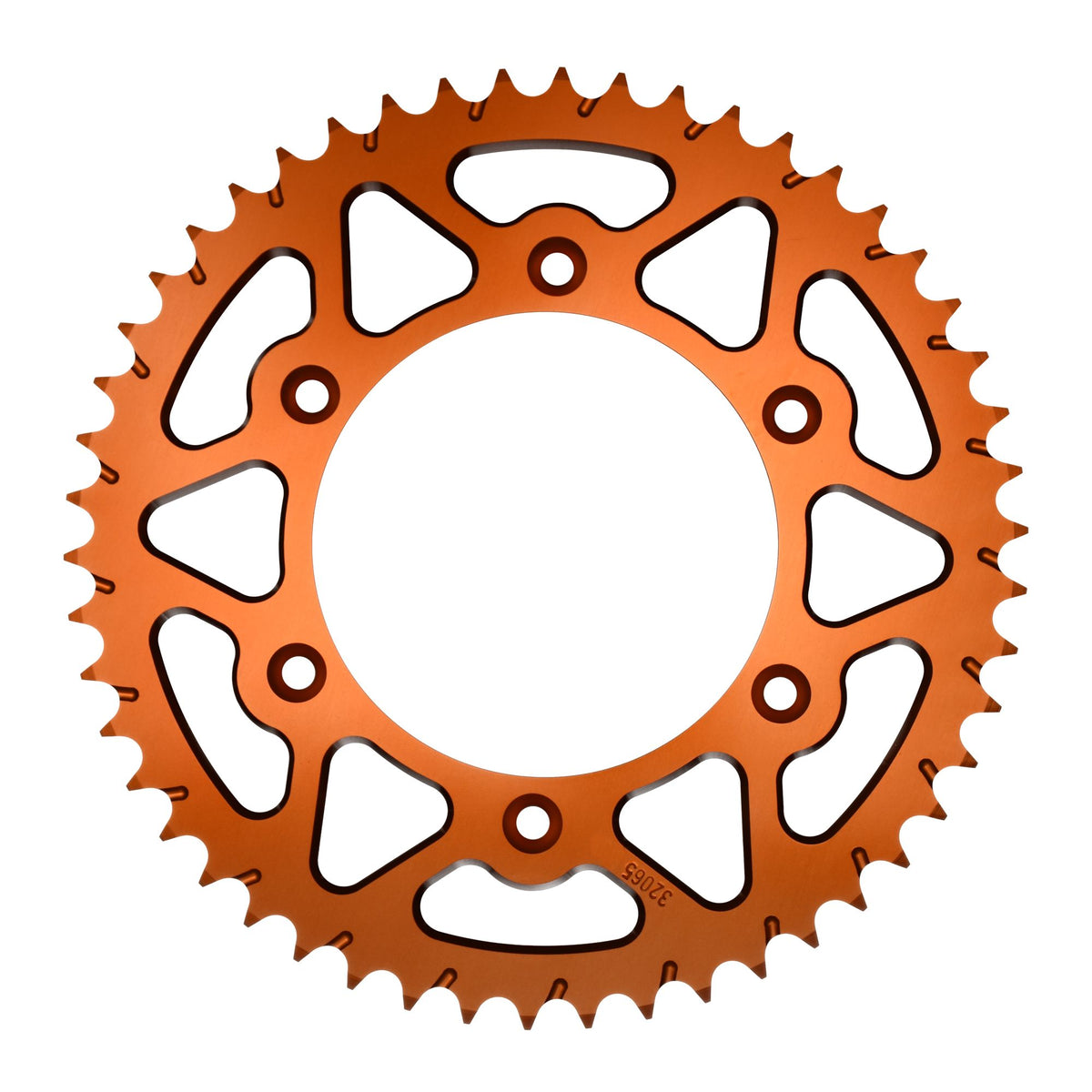

• Chain wheel: Esjot chain wheel 72304-50 ALU #520 50 teeth orange - a72304o.50
• Gear ratio sprocket-chain-chain wheel: 15-114-50

AFAM 520 XHR2-G

Hyper-reinforced chain with smooth-running properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Link plate thickness: inner: 2.2 mm
Link plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer and was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-43986

Suitable for

KTM 501 - 750 cc SX 620 LC4 1994
KTM 501 - 750 cc SX 620 LC4 1995
KTM 501 - 750 cc SX 620 LC4 1996
KTM 501 - 750 cc SX 620 LC4 1997
KTM 501 - 750 cc SX 620 LC4 1998
KTM 501 - 750 cc SX 620 LC4 1999
