AFAM chain kit for KTM SX 620 LC4 94-99 520 XHR2G chain kit

AFAM chain kit for KTM SX 620 LC4 94-99 520 XHR2G chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit KTM SX 620 LC4 1994-1999

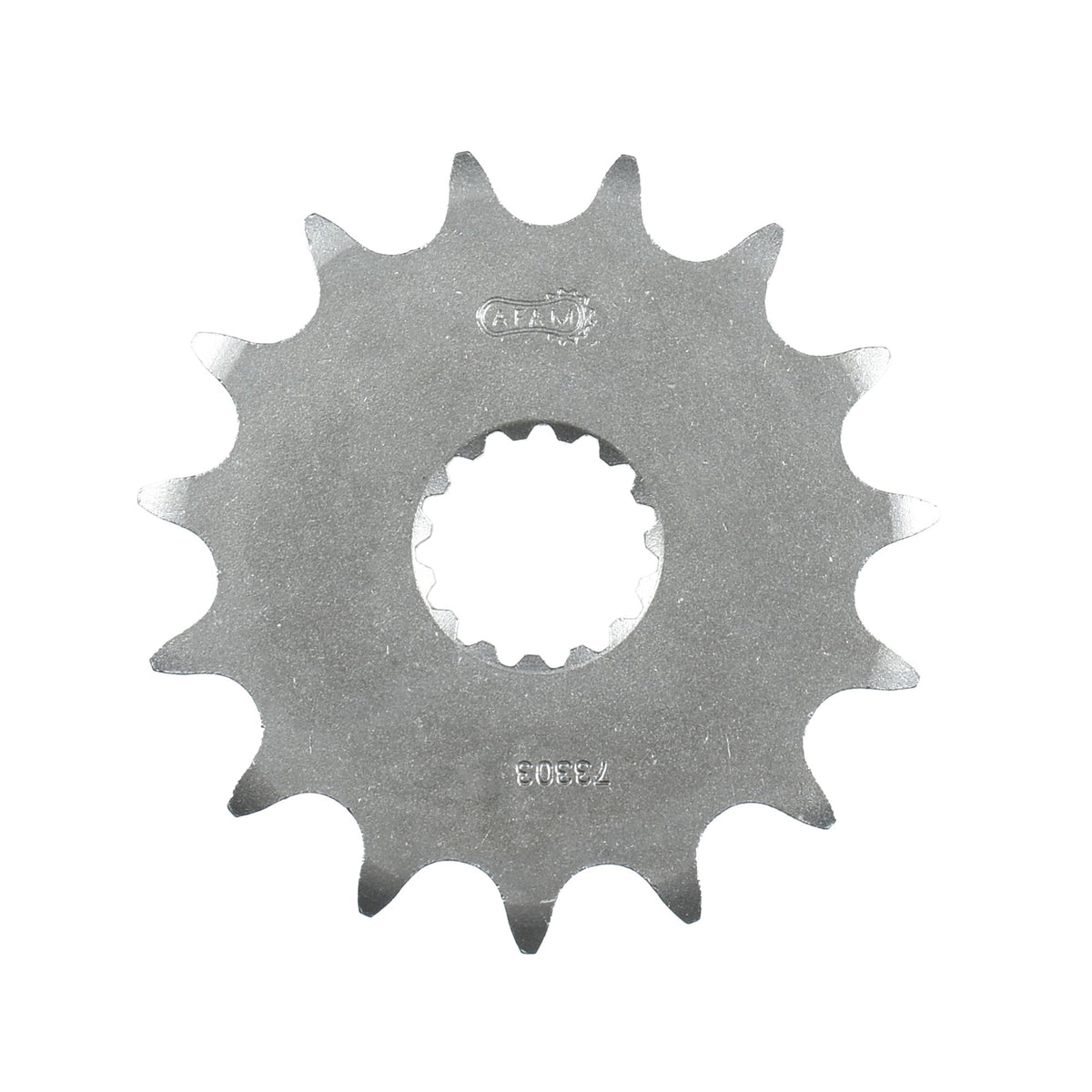

• Front sprocket: AFAM front sprocket #520 15 teeth - a73303.15
• Chain: AFAM chain 520 XHR2-G Xs-Ring 114 w. rivet link - a520xhr2.g.114
• Rear sprocket: AFAM rear sprocket ALU #520 50 teeth - a72304n.50
• Gear ratio front sprocket-chain-rear sprocket: 15-114-50

AFAM 520 XHR2-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-46894

Suitable for

KTM 501 - 750 cc SX 620 LC4 1994
KTM 501 - 750 cc SX 620 LC4 1995
KTM 501 - 750 cc SX 620 LC4 1996
KTM 501 - 750 cc SX 620 LC4 1997
KTM 501 - 750 cc SX 620 LC4 1998
KTM 501 - 750 cc SX 620 LC4 1999
