AFAM chain set for KTM SX 620 LC4 94-99 520 XMR3 chain kit

AFAM chain kit for KTM SX 620 LC4 94-99 520 XMR3 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit KTM SX 620 LC4 1994-1999

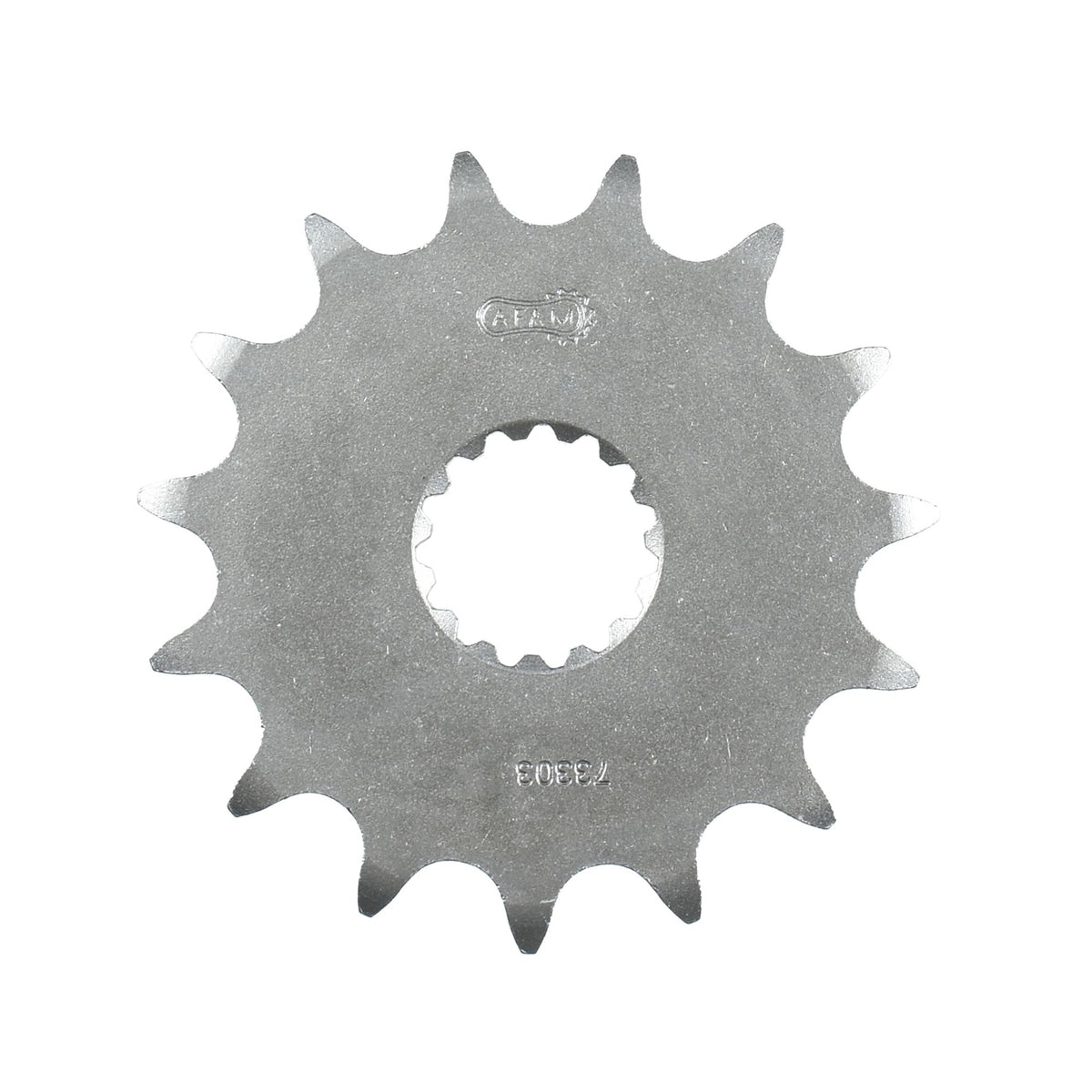

• Sprocket: AFAM sprocket #520 15 teeth - a73303.15
• Chain: AFAM chain 520 XMR3 Xs-ring 114 with rivet link - a520xmr3.114

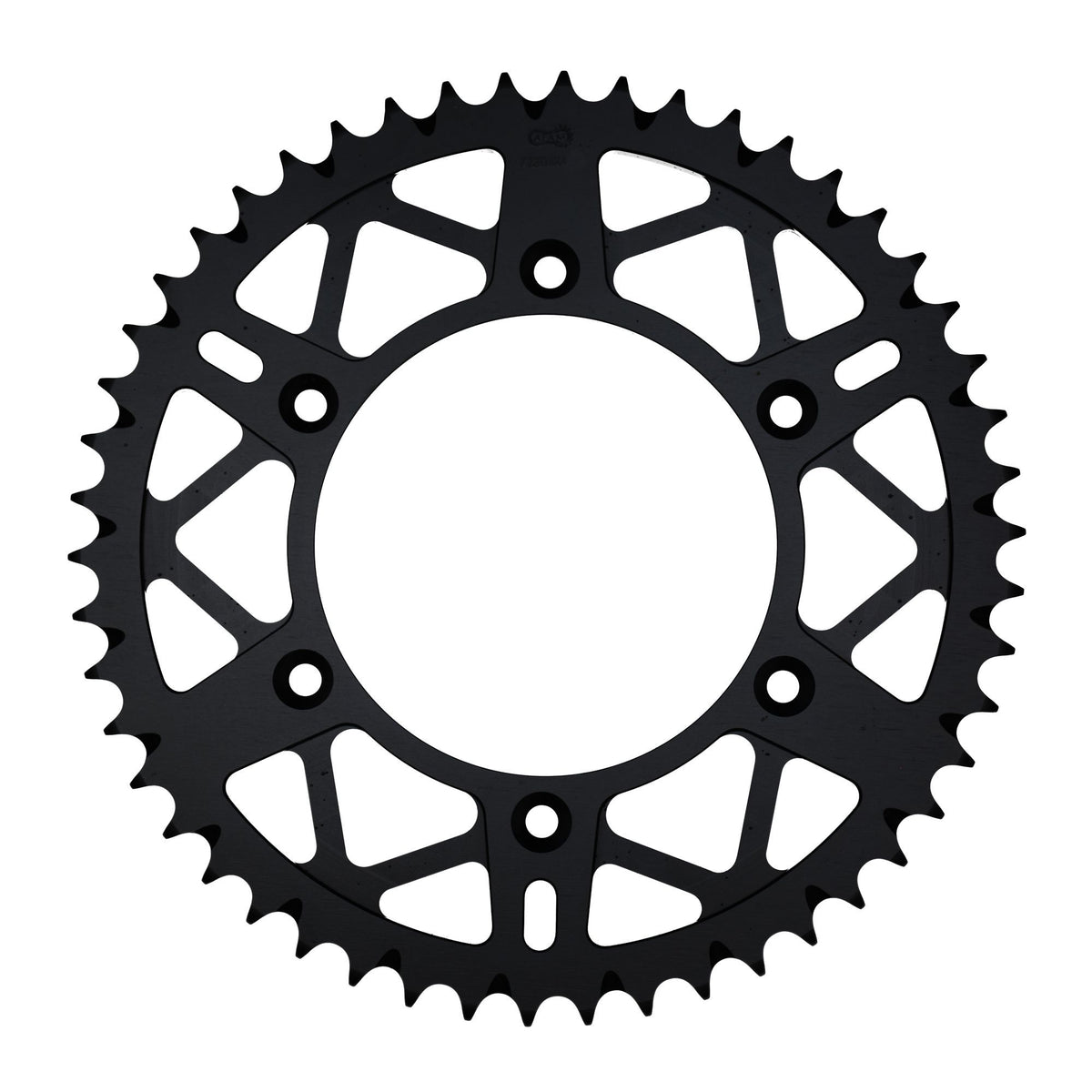

• Rear sprocket: AFAM steel sprocket #520 with mud grooves 50 T - a72304PK.50
• Gear ratio sprocket-chain-rear sprocket: 15-114-50

AFAM 520 XMR3

Reinforced chain with smooth-running properties
Xs-ring chain
Color: Steel
Application by displacement: up to 650 cc / street

Technical data:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-39964

Fits

KTM 501 - 750 cc SX 620 LC4 1994
KTM 501 - 750 cc SX 620 LC4 1995
KTM 501 - 750 cc SX 620 LC4 1996
KTM 501 - 750 cc SX 620 LC4 1997
KTM 501 - 750 cc SX 620 LC4 1998
KTM 501 - 750 cc SX 620 LC4 1999
