AFAM chain set for KTM SX 620 LC4 94-99 520 XMR3 chain kit

AFAM Chain Kit for KTM SX 620 LC4 94-99 520 XMR3 Chain Kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the KTM SX 620 LC4 1994-1999 chain kit

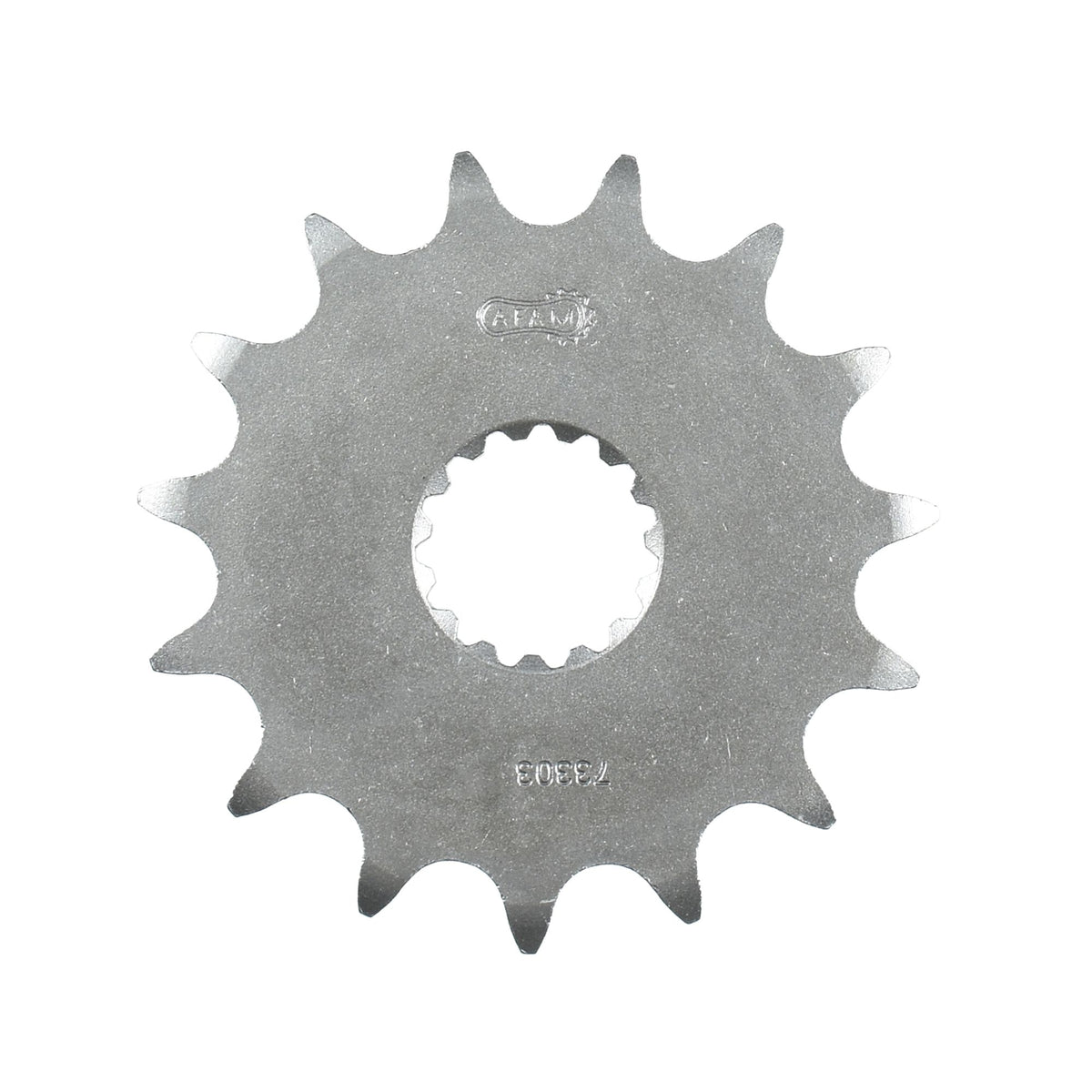

• Sprocket: AFAM sprocket #520 15 teeth - a73303.15
• Chain: AFAM chain 520 XMR3 Xs-Ring 114 w. rivet link - a520xmr3.114

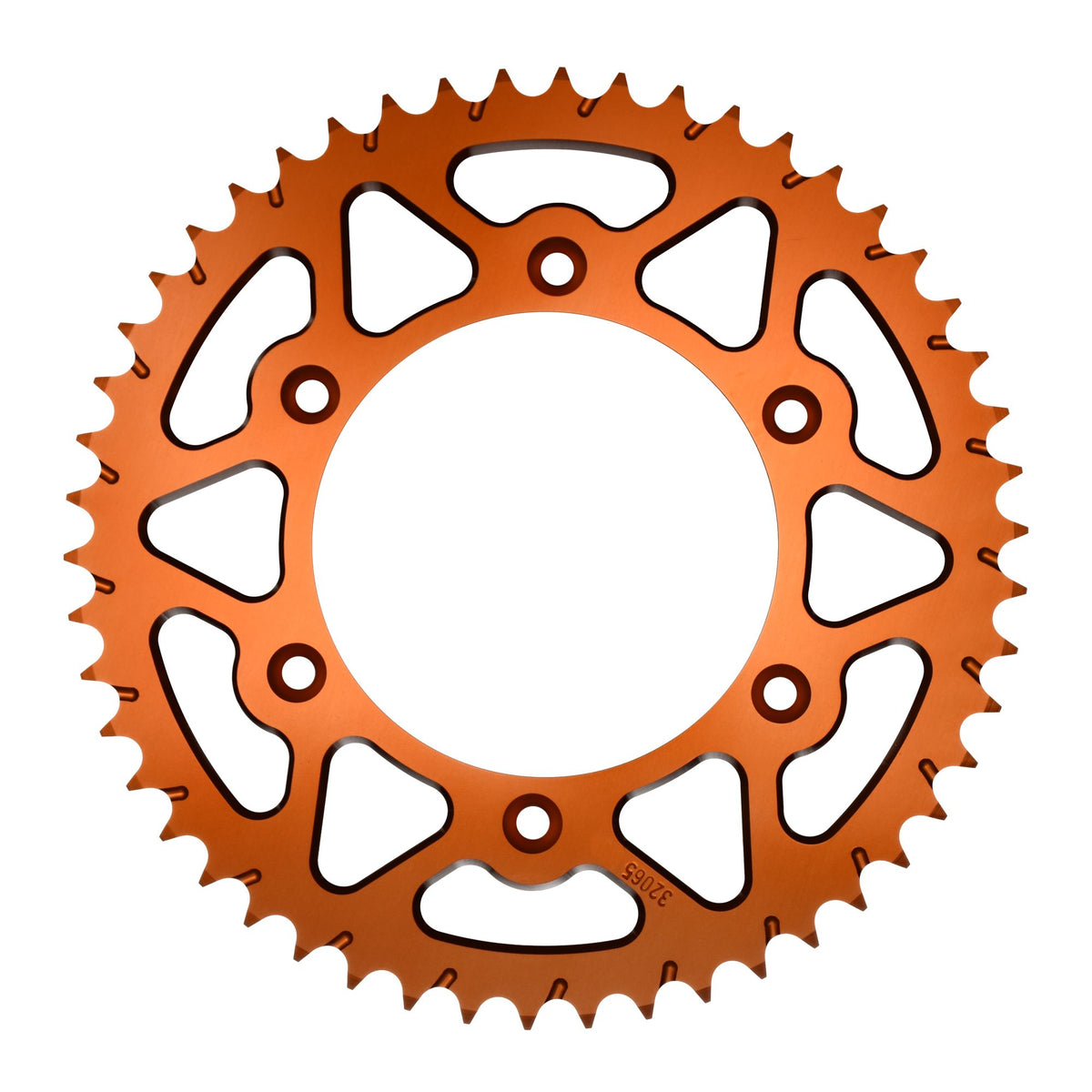

• Chain wheel: Esjot chain wheel 72304-50 ALU #520 50 teeth orange - a72304o.50
• Gear ratio sprocket-chain-chain wheel: 15-114-50

AFAM 520 XMR3

Reinforced chain with low-friction properties
Xs-Ring chain
Color: Steel
Application by displacement: up to 650 cc / street

Technical specifications:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered goods are accessory/replacement parts from a third-party manufacturer and were not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-46896

Suitable for

KTM 501 - 750 cc SX 620 LC4 1994
KTM 501 - 750 cc SX 620 LC4 1995
KTM 501 - 750 cc SX 620 LC4 1996
KTM 501 - 750 cc SX 620 LC4 1997
KTM 501 - 750 cc SX 620 LC4 1998
KTM 501 - 750 cc SX 620 LC4 1999
