AFAM chain kit for KTM SX 65 LC 05-08 420 R1G chain kit

AFAM chain kit for KTM SX 65 LC 05-08 420 R1G chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility identification purposes only!

Components of the chain kit KTM SX 65 LC 2T 2005-2008

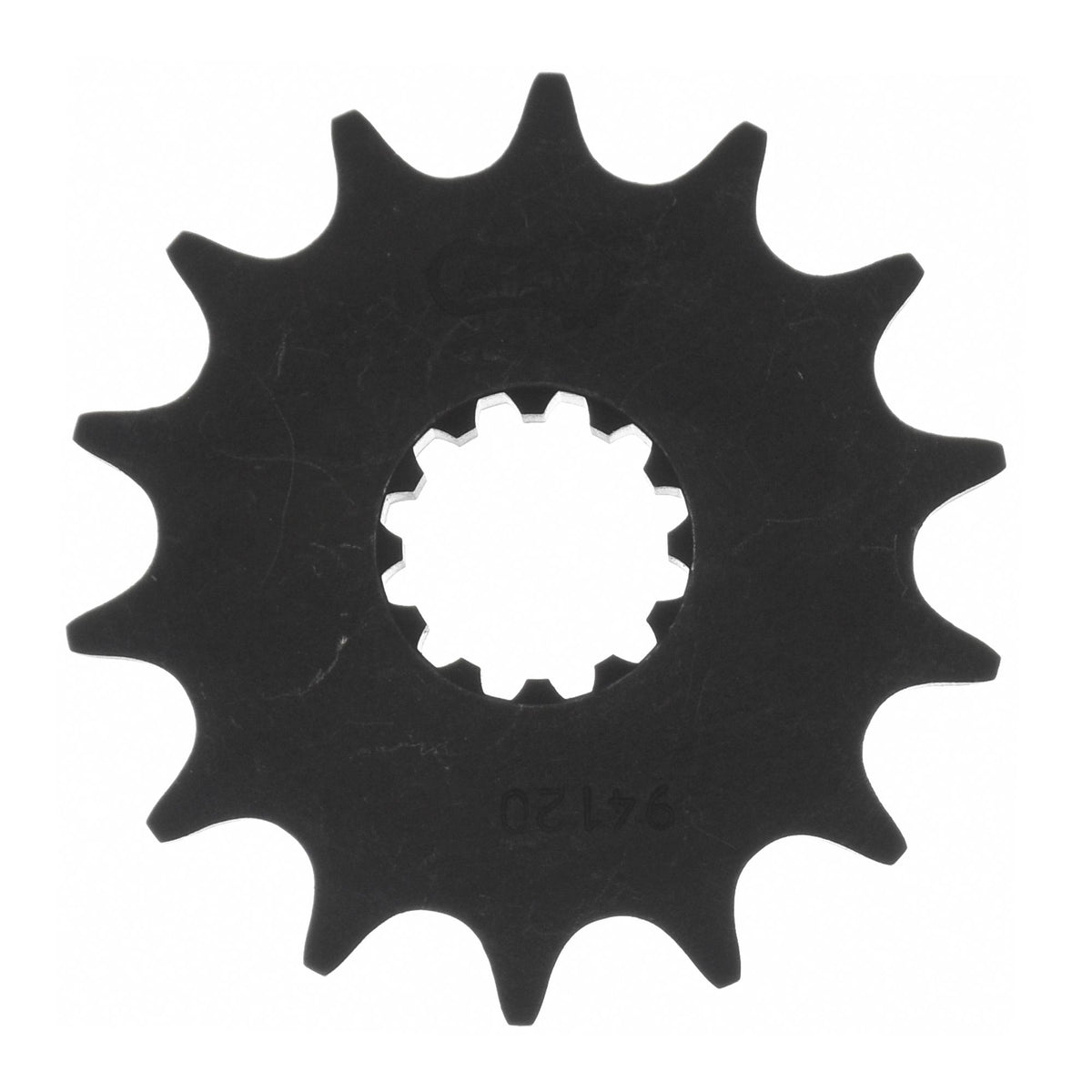

• Front sprocket: AFAM front sprocket #420 14 teeth - a94120.14
• Chain: AFAM chain 420 R1-G reinforced 112 with clip link - a420r1.g.112
• Rear sprocket: AFAM rear sprocket ALU #420 50 teeth - a72101n.50
• Gear ratio front sprocket-chain-rear sprocket: 14-112-50

AFAM 420 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold

Technical specifications:
Pitch: 420
Pin length: 16.2 mm
Roller Ø: 7.75 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 21.00 kN
Weight per 100 links: 0.88 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-44130

Suitable for

KTM 0 - 100 ccm SX 65 LC 2T 2005
KTM 0 - 100 ccm SX 65 LC 2T 2006
KTM 0 - 100 ccm SX 65 LC 2T 2007
KTM 0 - 100 ccm SX 65 LC 2T 2008
