AFAM chain kit for KTM SX 65 LC 09-11 420 M chain kit

AFAM chain kit for KTM SX 65 LC 09-11 420 M chain kit

Chain kit or chain set for the specified model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit KTM SX 65 LC 2T 2009-2011

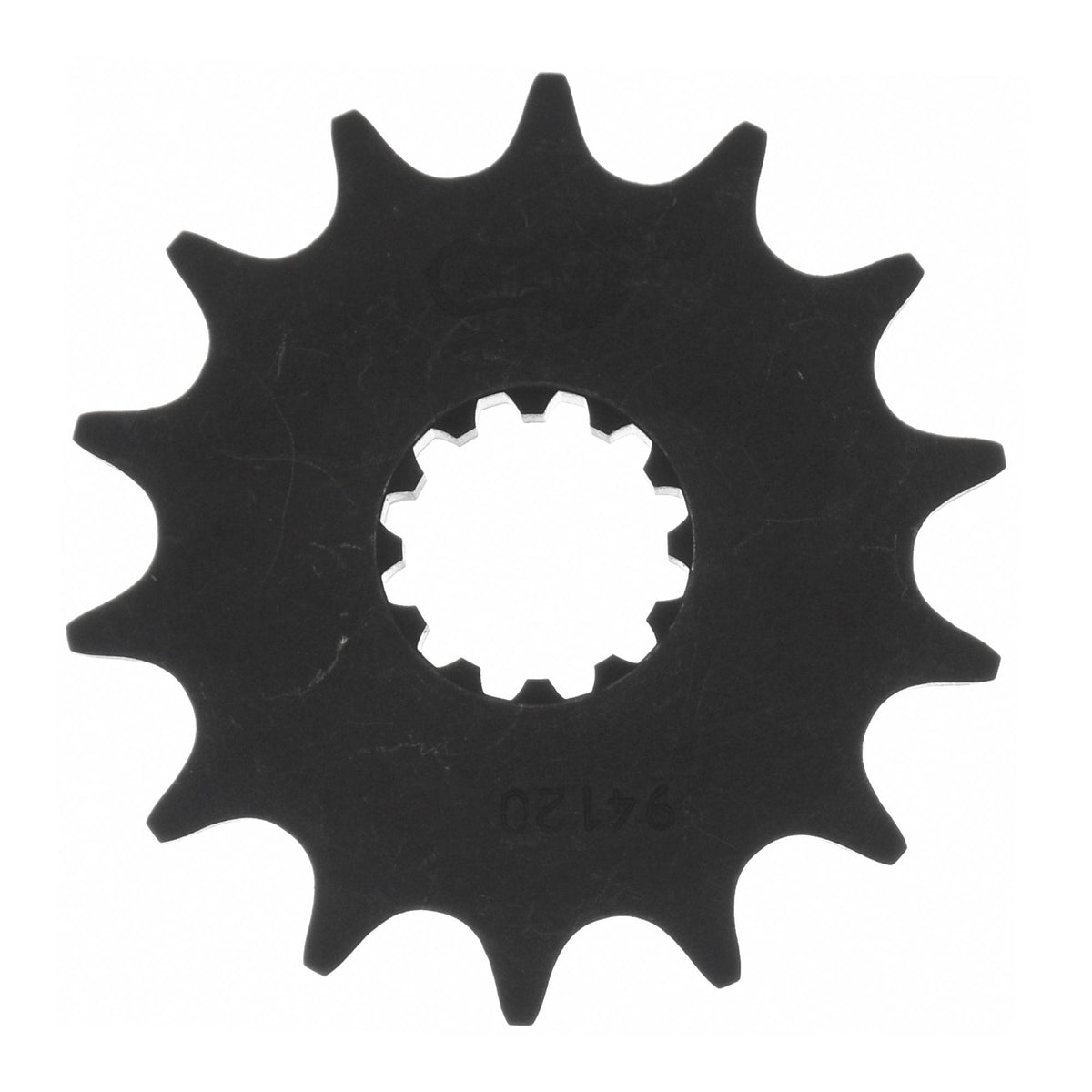

• Front sprocket: AFAM sprocket #420 14 teeth - a94120.14

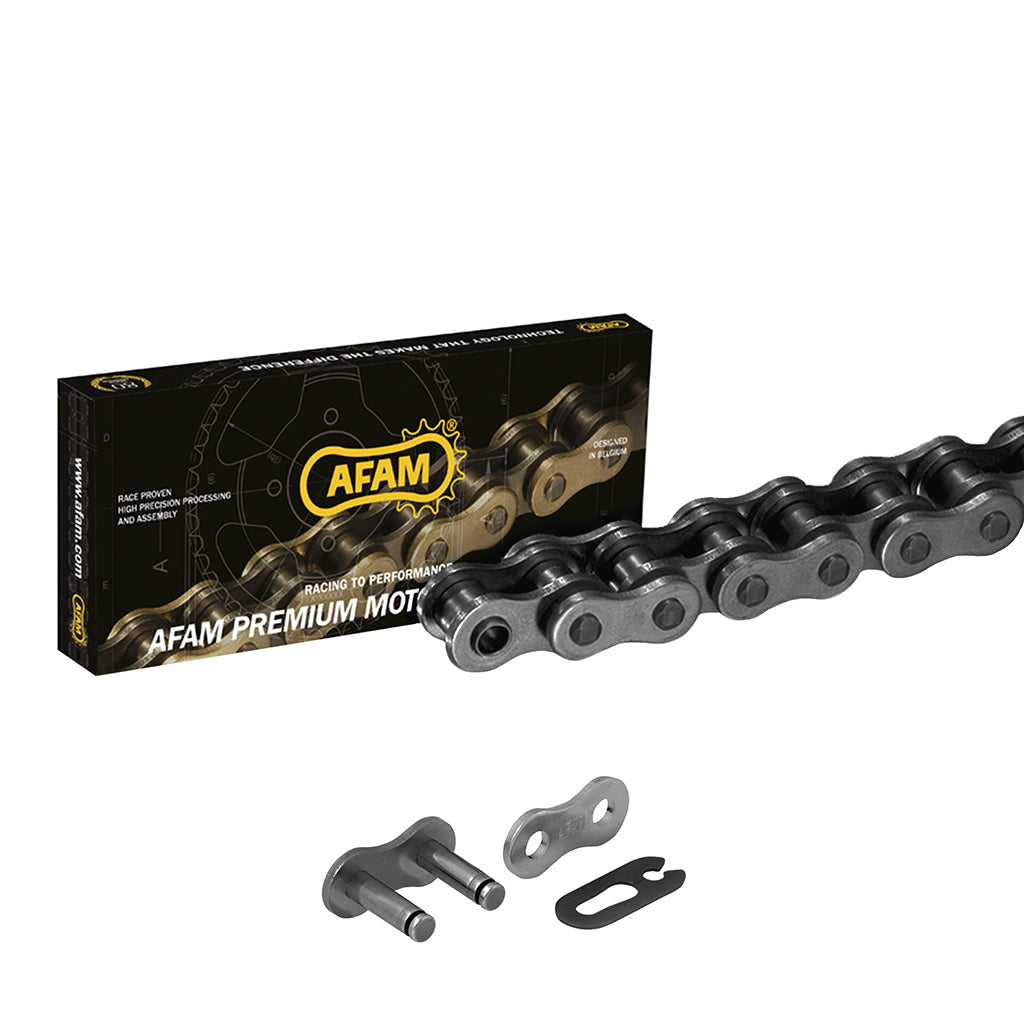

• Chain: AFAM chain 420 M 112 with clip master link - a420m.112

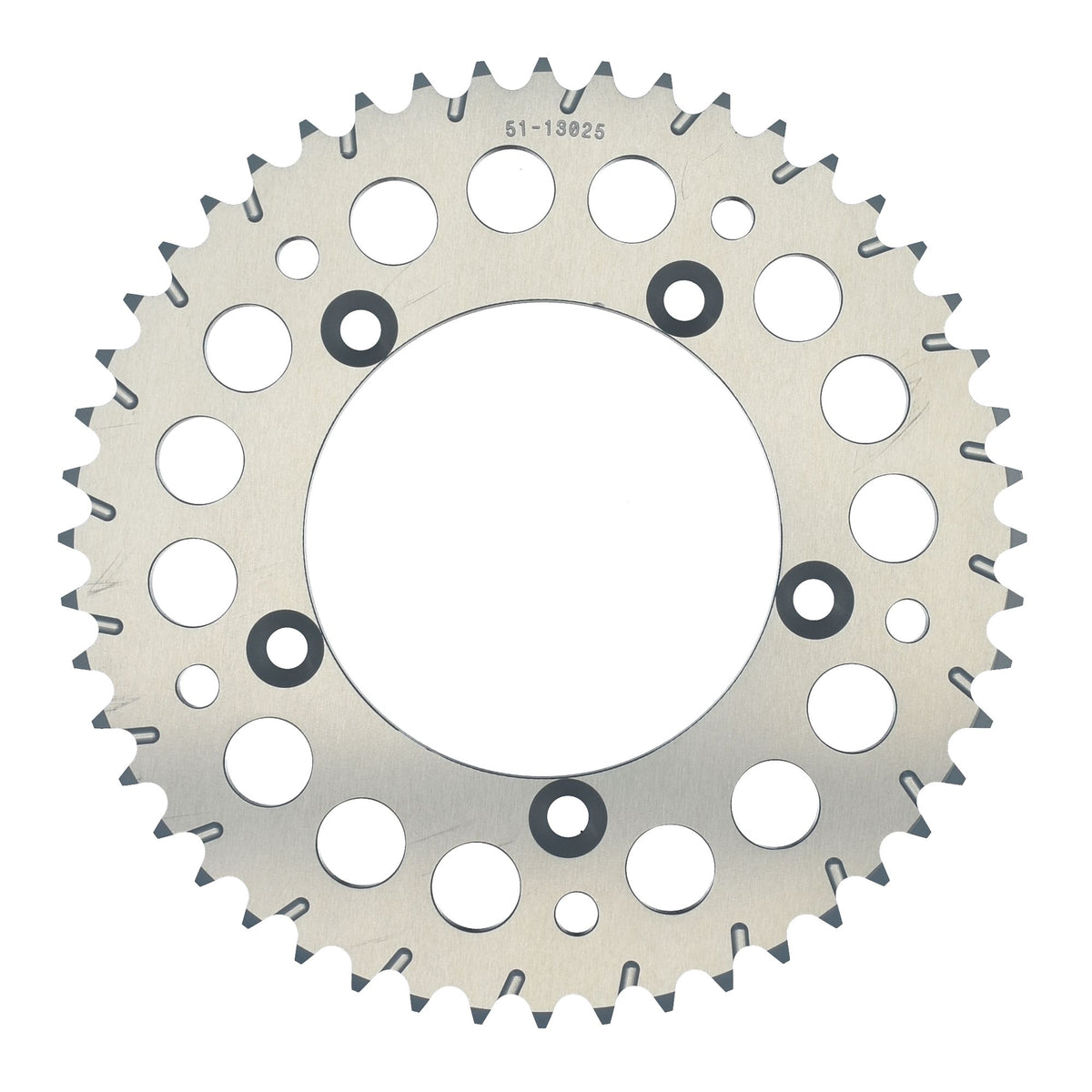

• Rear sprocket: AFAM rear sprocket ALU #420 50 teeth - a72101n.50
• Transmission ratio sprocket-chain-rear sprocket: 14-112-50

AFAM 420 M

Affordable and simple standard chain
Without sealing rings
Color: Steel

Technical data:
Pitch: 420
Pin length: 14.40 mm
Roller Ø: 7.75 mm
Plate thickness: inner: 1.5 mm
Plate thickness: outer: 1.5 mm
Tensile strength: 20.00 kN
Weight per 100 links: 0.72 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-50016

Fits

KTM 0 - 100 ccm SX 65 LC 2T 2009
KTM 0 - 100 ccm SX 65 LC 2T 2010
KTM 0 - 100 ccm SX 65 LC 2T 2011
