AFAM chain kit for KTM SX 65 LC 09-11 420 R1G chain kit

AFAM Chain Kit for KTM SX 65 LC 09-11 420 R1G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit KTM SX 65 LC 2T 2009-2011

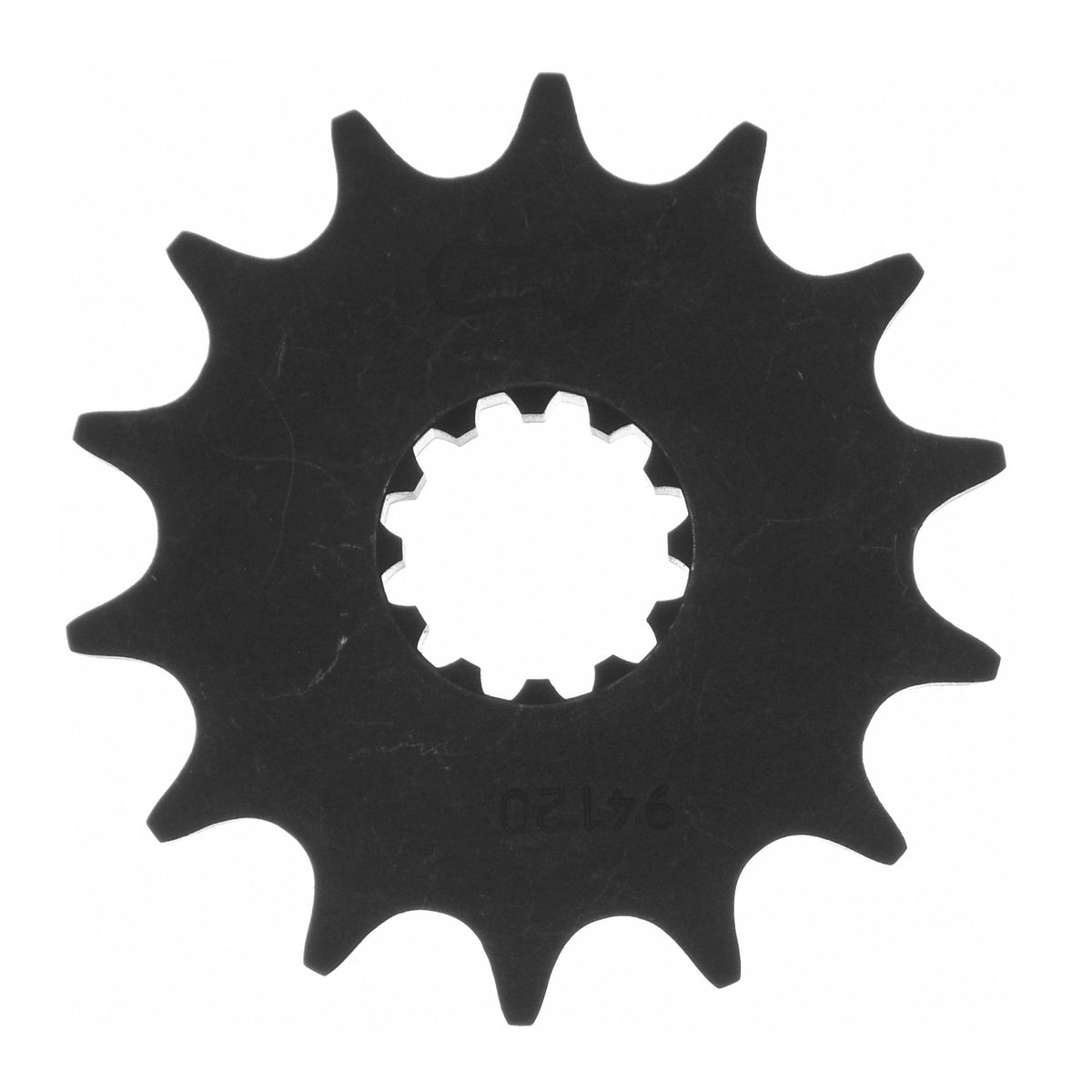

• Front sprocket: AFAM front sprocket #420 14 teeth - a94120.14
• Chain: AFAM chain 420 R1-G reinforced 112 with clip link - a420r1.g.112
• Rear sprocket: AFAM rear sprocket ALU #420 50 teeth - a72101n.50
• Gear ratio front sprocket-chain-rear sprocket: 14-112-50

AFAM 420 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold

Technical data:
Pitch: 420
Pin length: 16.2 mm
Roller Ø: 7.75 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 21.00 kN
Weight per 100 links: 0.88 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-44133

Suitable for

KTM 0 - 100 cc SX 65 LC 2T 2009
KTM 0 - 100 cc SX 65 LC 2T 2010
KTM 0 - 100 cc SX 65 LC 2T 2011
