AFAM chain kit for KTM SX 65 LC 12-19 420 R1G chain kit

AFAM Chain kit for KTM SX 65 LC 12-19 420 R1G chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit KTM SX 65 LC 2T 2012-2019

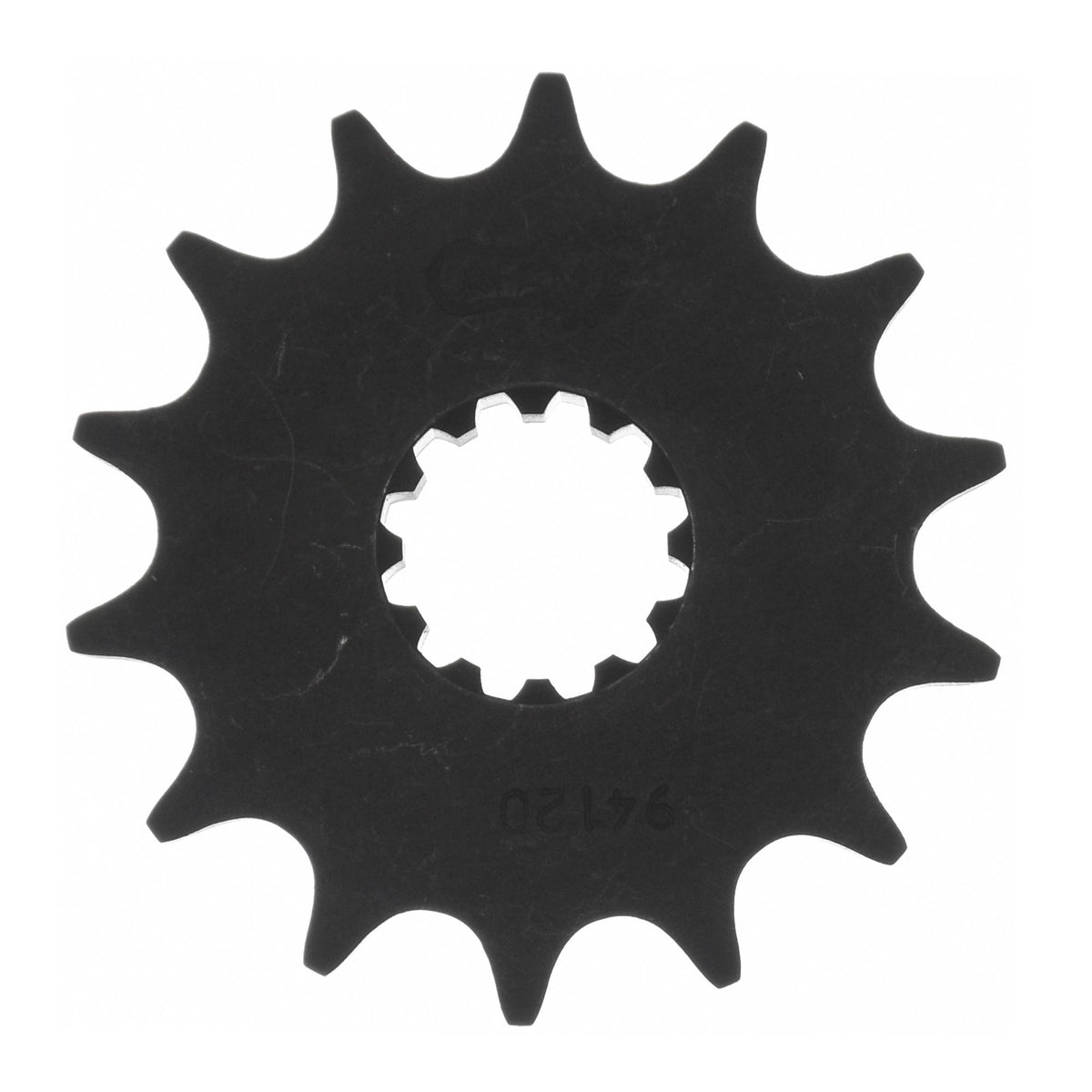

• Sprocket: AFAM sprocket #420 14 teeth - a94120.14
• Chain: AFAM chain 420 R1-G reinforced 112 with clip link - a420r1.g.112

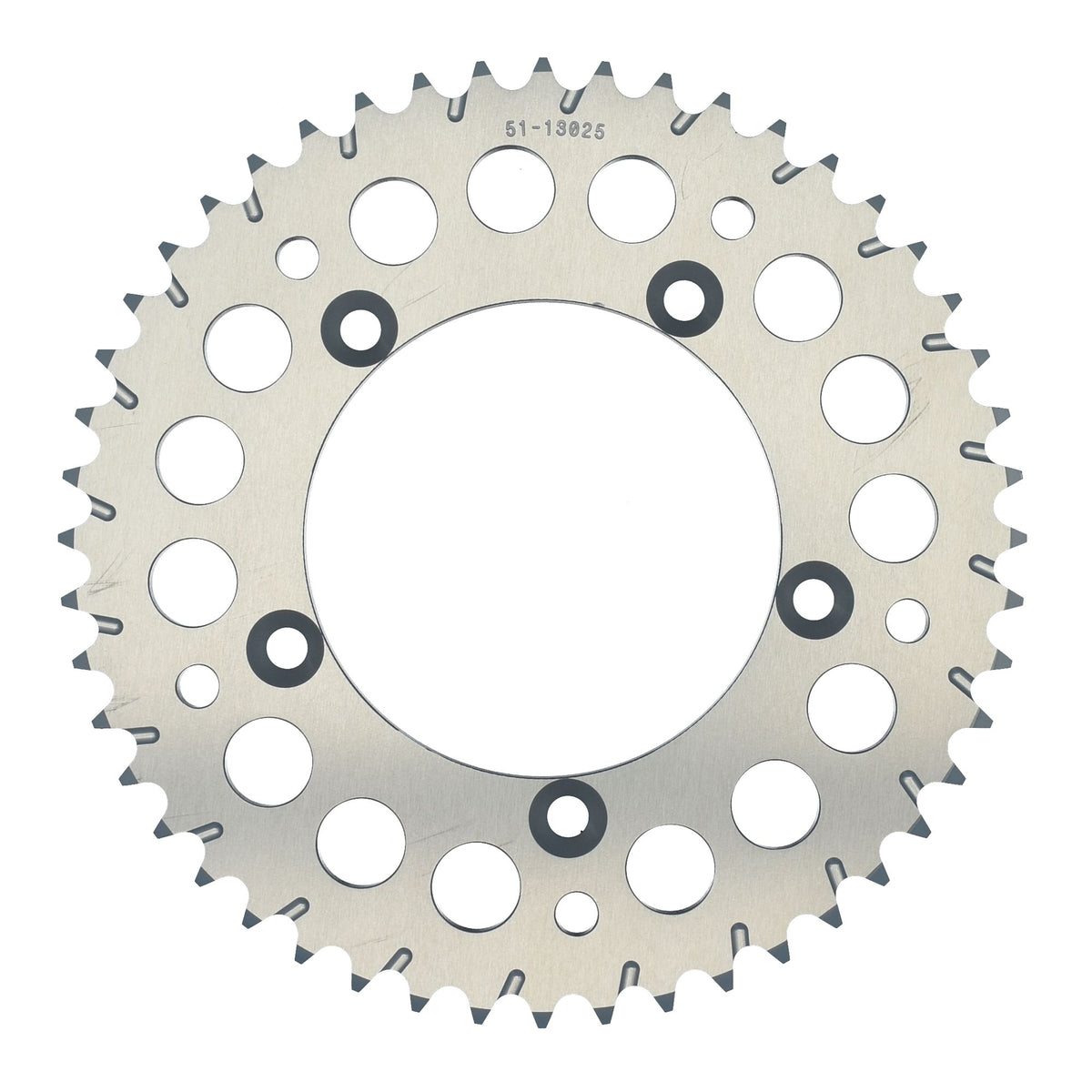

• Rear sprocket: AFAM sprocket ALU #420 48 teeth - a72101n.48
• Gear ratio sprocket-chain-rear sprocket: 14-112-48

AFAM 420 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold

Technical data:
Pitch: 420
Pin length: 16.2 mm
Roller Ø: 7.75 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 21.00 kN
Weight per 100 links: 0.88 kg

Unless otherwise stated: The offered goods are accessory/spare parts from a third-party manufacturer and were not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-26010

Suitable for

KTM 0 - 100 ccm SX 65 LC 2T 2012
KTM 0 - 100 ccm SX 65 LC 2T 2013
KTM 0 - 100 ccm SX 65 LC 2T 2014
KTM 0 - 100 ccm SX 65 LC 2T 2015
KTM 0 - 100 ccm SX 65 LC 2T 2016
KTM 0 - 100 ccm SX 65 LC 2T 2017
KTM 0 - 100 ccm SX 65 LC 2T 2018
KTM 0 - 100 ccm SX 65 LC 2T 2019
